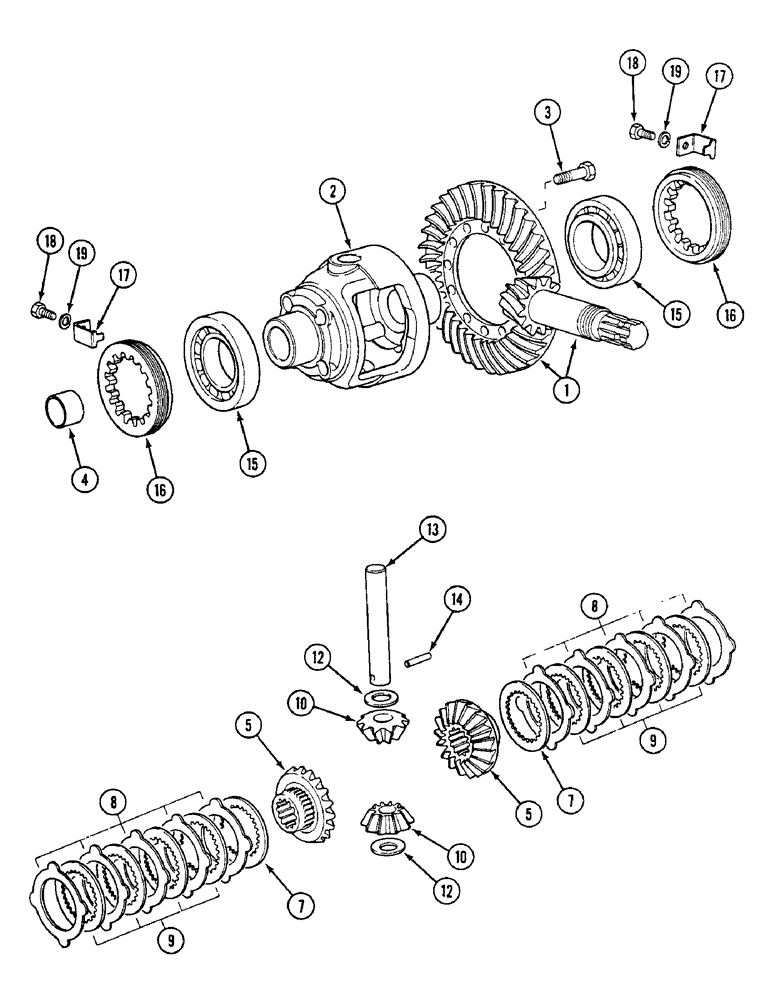

Запчасти Case IH 1494 (5-154) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, P.I.N. 11518001 AND AFTER (05) - STEERING

1

K262181

GEAR, BEVEL

GEAR AND PINION, 13/31 ratio, Carraro 65447, standard tractor

1шт.

2

REF

INSTRUCTION

CASE differential, Carraro 115598, Includes: housing assembly, gears, and bolts

1шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY differential

1шт.

1349057C1

PINION

GEAR side

2шт.

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

- hex, 10 - 1.5 x 80 mm, class 10.9

12шт.

4

K395085

BUSHING

- differential case (Carraro 108201)

2шт.

5

REF

INSTRUCTION

GEAR bevel, Includes: housing assembly and gears

2шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY differential

1шт.

1349057C1

PINION

GEAR side

2шт.

K262507

GEAR

sun

1шт.

7

1966154C1

PLATE

backing

1шт.

7

1966154C1

PLATE

backing

1шт.

8

1966155C1

PLATE

drive, Carraro 110643

5шт.

9

1966156C1

WASHER

PLATE driven, Carraro 110644

4шт.

10

REF

INSTRUCTION

PINION bevel, Includes: housing assembly and gears

2шт.

109686A1

HOUSING ASSY.

HOUSING ASSEMBLY differential

1шт.

1349057C1

PINION

GEAR, side

2шт.

K262507

GEAR

sun

1шт.

12

K395075

THRUST WASHER

WASHER, THRUST (Carraro 115730)

2шт.

13

K395087

SHAFT

PIN - differential pinions, Carraro 115731

1шт.

14

K395086

PIN

locking, Carraro 116451

1шт.

15

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED (Carraro 27309)

2шт.

16

1966559C1

NUT

RING, LOCKING

2шт.

17

1966153C1

LOCKING PLATE

BRACKET lock

2шт.

18

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

(Carraro 115789) Hex, M10 x 30, 10.9, Full Thd

12шт.
