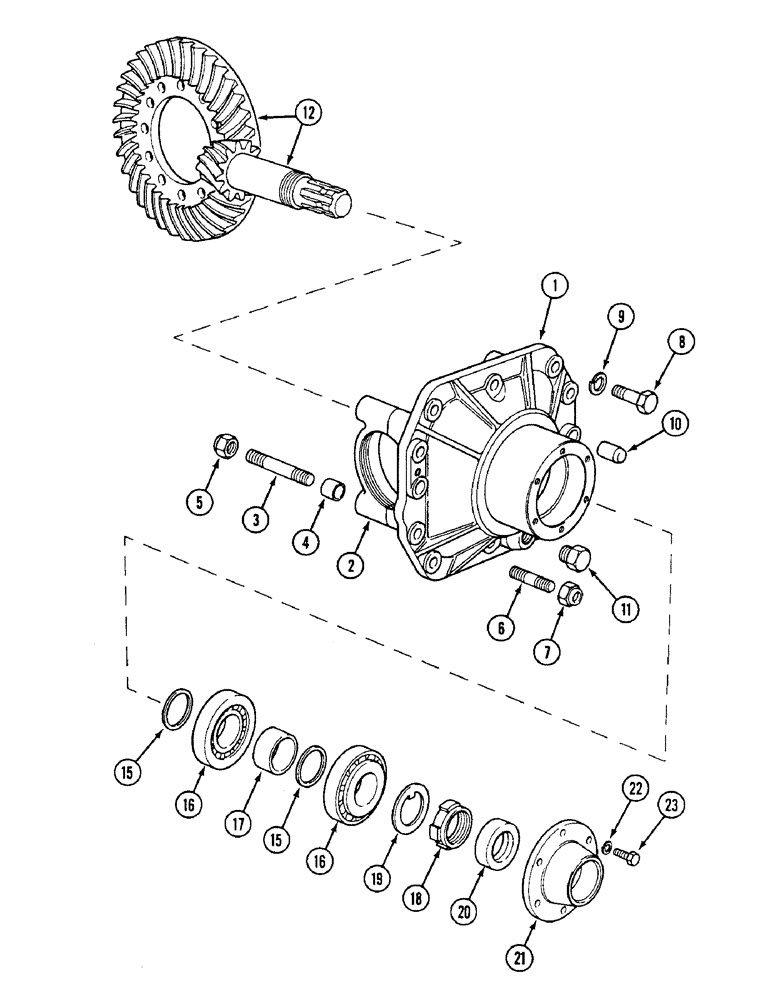

Запчасти Case IH 1494 (5-152) - FRONT AXLE DIFFERENTIAL HOUSING, MFD TRACTORS, P.I.N. 11518001 AND AFTER (05) - STEERING

1

K395118

DIFFERENTIAL

HOUSING differential, Carraro 116392, Includes: Ref. 2 - 5

1шт.

2

K262737

CAP

hub, order also K691286 seal

2шт.

3

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, , Special, Carraro 107766 Hex Flg, M14 x 75, 12.9

4шт.

4

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

centering, Carraro 72235

4шт.

5

905873R1

NUT,M14 x 1.5, G8

NUT self-locking

4шт.

6

1966562C1

STUD

axle housing

7шт.

7

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

7шт.

8

K260196

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

M12 x 35 mm, Carraro 20921

3шт.

9

K65425

WASHER lock, 12 mm, Carraro 22861

3шт.

10

1966138C1

DOWEL

PIN dowel, Carraro 87660

2шт.

11

110782A1

PLUG, DRAIN

PLUG, 24 mm, Carraro 92270

1шт.

12

K262181

GEAR, BEVEL

GEAR AND PINION, 13/31 ratio, Carraro 65447, standard tractor

1шт.

12

K262220

GEAR, BEVEL

GEAR AND PINION, 9/37 ratio, Carraro 65491, vegetable special

1шт.

15

K965280

SHIM,2.50mm Thk

(Carraro 98427) 2.50mm Thk

1шт.

15

K965282

SHIM,2.60mm Thk

(Carraro 98426) 2.60mm Thk

1шт.

15

K965284

SHIM,40.1mm ID x 50mm OD x 2.7mm Thk

(Carraro 98425) 2.70mm Thk

1шт.

15

K965286

SHIM,2.85mm Thk

(Carraro 98424) 2.80mm Thk

1шт.

15

K965288

SHIM,2.90mm Thk

(Carraro 98244) 2.90mm Thk

1шт.

15

K965290

SPACER

SHIM, 3.0 mm, Carraro 98239

1шт.

15

K965292

SHIM,3.10mm Thk

(Carraro 98240) 3.10mm Thk

1шт.

15

K965293

SHIM,3.15mm Thk

(Carraro 100163) 3.15mm Thk

1шт.

15

K965294

SHIM,3.20mm Thk

(Carraro 98241) 3.20mm Thk

1шт.

15

K965295

SHIM,3.25mm Thk

(Carraro 100164) 3.25mm Thk

1шт.

15

K965296

SHIM,3.30mm Thk

(Carraro 98242) 3.30mm Thk

1шт.

15

K965298

SHIM,3.40mm Thk

(Carraro 98243) 3.40mm Thk

1шт.

16

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion, Carraro 27350

2шт.

17

1349058C1

SPACER

bearing, order also 1349059C1

1шт.

18

K261014

RING NUT,M40 x 1.5

RING nut

1шт.

19

K261065

LOCK WASHER

special, Carraro 113717

1шт.

20

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

oil, Carraro 116722

1шт.

21

K395055

COVER

FLANGE housing, Carraro 116370

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

6шт.

23

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, Carraro 20749

6шт.
