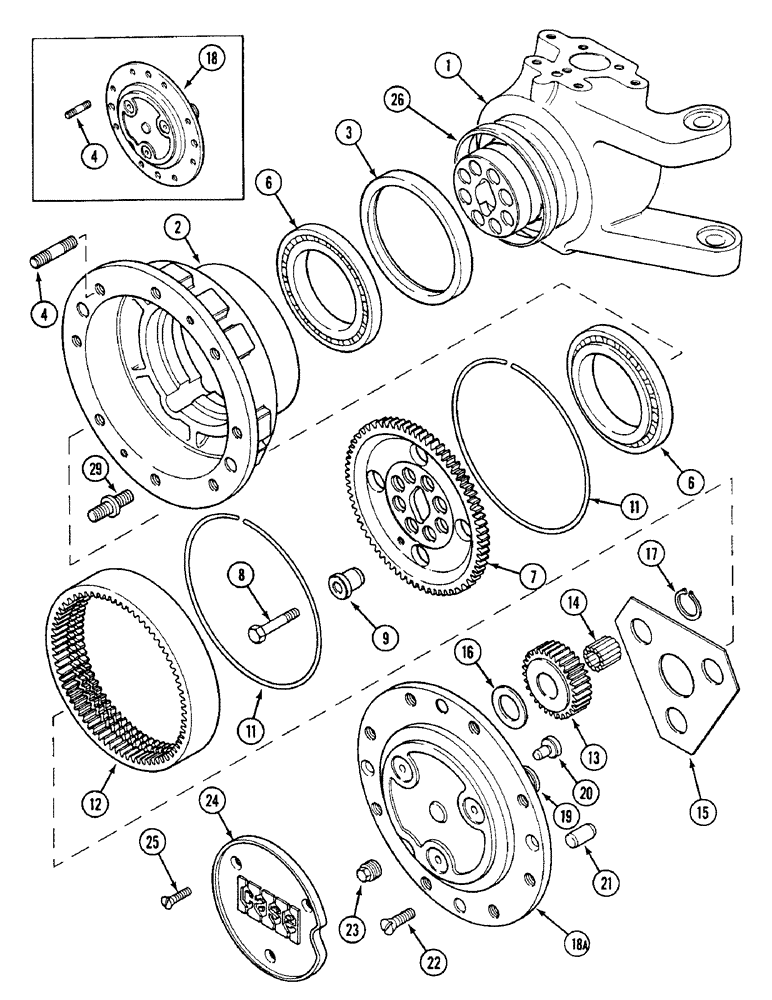

Запчасти Case IH 1494 (5-150) - FRONT HUBS AND PLANTARIES, MFD TRACTORS, P.I.N. 11518001 AND AFTER (05) - STEERING

1

K395133

HOUSING

stub axle, left hand, Carraro 119769

1шт.

1

K395134

HOUSING

stub axle, right hand, Carraro 119770

1шт.

2

K395123

HUB

front, Carraro 118376

2шт.

3

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

oil, 149 x 176 x 16

2шт.

4

K260218

STUD

wheel fixing, Carraro 106199, prior to 709/19 axle No. 917

16шт.

4

K260218

STUD

wheel fixing, Carraro 106199, 709/19 axle No. 917 and after

12шт.

6

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING taper roller, Carraro 118370

4шт.

7

K395126

WHEEL

GEAR support, Carraro 118382

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Self-locking (Carraro 119906) Hex, M14 x 65, Cl 10.9

16шт.

9

107071A1

BUSHING

- Centering, 20 mm OD, Carraro 119887

14шт.

9

107072A1

CENTERING RING

BUSHING centering, 24 mm OD, Carraro 119888

2шт.

11

K395095

CIRCLIP

RING snap, Carraro 115691

4шт.

12

REF

INSTRUCTION

GEAR KIT, Includes: gears and ring

2шт.

H437677

GEAR, RING

GEAR internal tooth

1шт.

H437678

RING, FLYWHEEL

GEAR support

1шт.

H437679

RING, SNAP

RING locking

1шт.

13

K395110

GEAR

planet, Carraro 115644

6шт.

14

119685A1

NEEDLE BEARING

BEARING needle, Carraro 115633

180шт.

15

K395122

PLATE

thrust, Carraro 116458

2шт.

16

K395091

THRUST WASHER

WASHER, THRUST (Carraro 115634)

6шт.

17

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Carraro 24789 M34, Ext

6шт.

K262251

PINION CARRIER

COVER hub, Includes: 18A - 20

1шт.

18a

K395111

PINION CARRIER

COVER hub

1шт.

19

K395124

SHAFT

pinion gear

3шт.

20

K395093

HEADED PIN,12mm OD x 15mm L

BUTTON thrust, Carraro 115682

2шт.

21

K395094

DOWEL,M18 x 36

Hub cover (Carraro 115640) M18 x 36

4шт.

22

K395029

SCREW

M12 x 30 mm, Carraro 20510

4шт.

23

110782A1

PLUG, DRAIN

PLUG, 24 mm, Carraro 118927

2шт.

24

K395135

COVER

PLATE hub cover, Carraro 118927

2шт.

25

905876R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 20mm, Cl 10.9

Special, Carraro 20490 Hex Soc Flat Hd, M8 x 20, 10.9

6шт.

26

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

oil, 149 x 176 x 16, Carraro 120178, used with K395133 and K395134, Includes: Ref. 29

2шт.

29

N13515

STUD

special, with collar

1шт.
