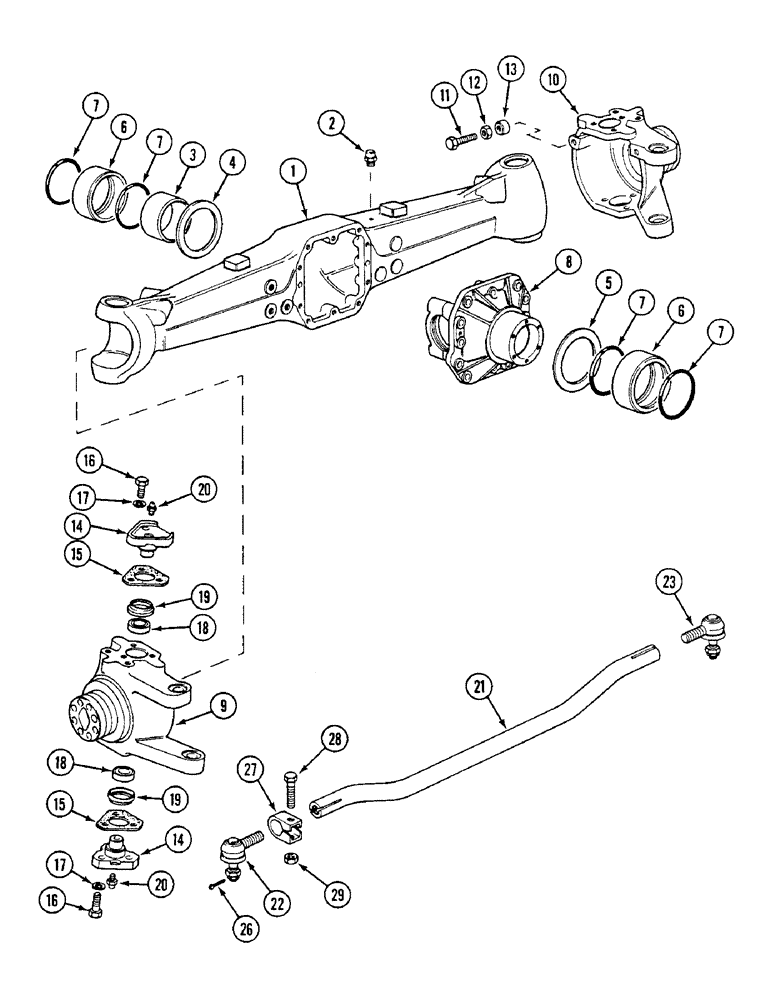

Запчасти Case IH 1494 (5-148) - FRONT AXLE HOUSING, MFD TRACTORS, P.I.N. 11518001 AND AFTER (05) - STEERING

1

K395018

HOUSING

front axle, Carraro 118979

1шт.

2

1966149C1

BREATHER

axle housing, Carraro 104988

1шт.

3

K965266

BUSHING

SLEEVE bushing, Carraro 101565/1

1шт.

4

K395022

WASHER

thrust, front, Carraro 115776

1шт.

5

K395023

WASHER,115.3mm ID x 145mm OD x 5mm Thk

thrust, rear, Carraro 115777

1шт.

6

K965265

BUSHING

steel, Carraro 101575/1

2шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

RING sealing, Carraro 28103

4шт.

8

K395118

DIFFERENTIAL

HOUSING differential, See Figure 5-152

1шт.

9

K395133

HOUSING

stub axle, left hand, Carraro 119769

1шт.

10

K395134

HOUSING

stub axle, right hand, Carraro 119770

1шт.

11

K395032

BOLT

housing stop, M12 x 60 mm, Carraro 116453

4шт.

12

K965369

JAM NUT

lock, M12, Carraro 22123

4шт.

13

K965373

WASHER

Replaces: K395132 spacer

16шт.

14

K395035

PIN

bearing, Carraro 115729

4шт.

15

K395036

SHIM,52mm ID x 116mm OD x 0.1mm Thk

(Carraro 115733) 0.10mm Thk

1шт.

15

K395037

SHIM,52mm ID x 98mm OD x 0.19mm Thk

(Carraro 115734) 0.19mm Thk

1шт.

15

K395038

SHIM,52mm ID x 98mm OD x 0.35mm Thk

(Carraro 115735) 0.35mm Thk

1шт.

16

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm (Carraro 20920)

12шт.

17

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

12шт.

18

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING roller, Carraro 115714

4шт.

19

K395039

SEAL

bearing, Carraro 115735

4шт.

20

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

4шт.

21

K395051

ROD

track, Carraro 118980

1шт.

22

K260250

BALL JOINT

ROD END track, left hand, Carraro 88759

1шт.

23

K260254

BALL JOINT

ROD END track, right hand, Carraro 87031

1шт.

26

733-4032

COTTER PIN,M4 x 32

PIN, SPLIT (COTTER), (Carraro 25575) M4 x 32

2шт.

27

N8904

CLAMP

track rod, Carraro 114840, Replaces: K205147

2шт.

28

N8905

BOLT

M16, Carraro 21199, Replaces: K205151

2шт.

29

K260157

NUT

self-locking M16, Carraro 22440

2шт.
