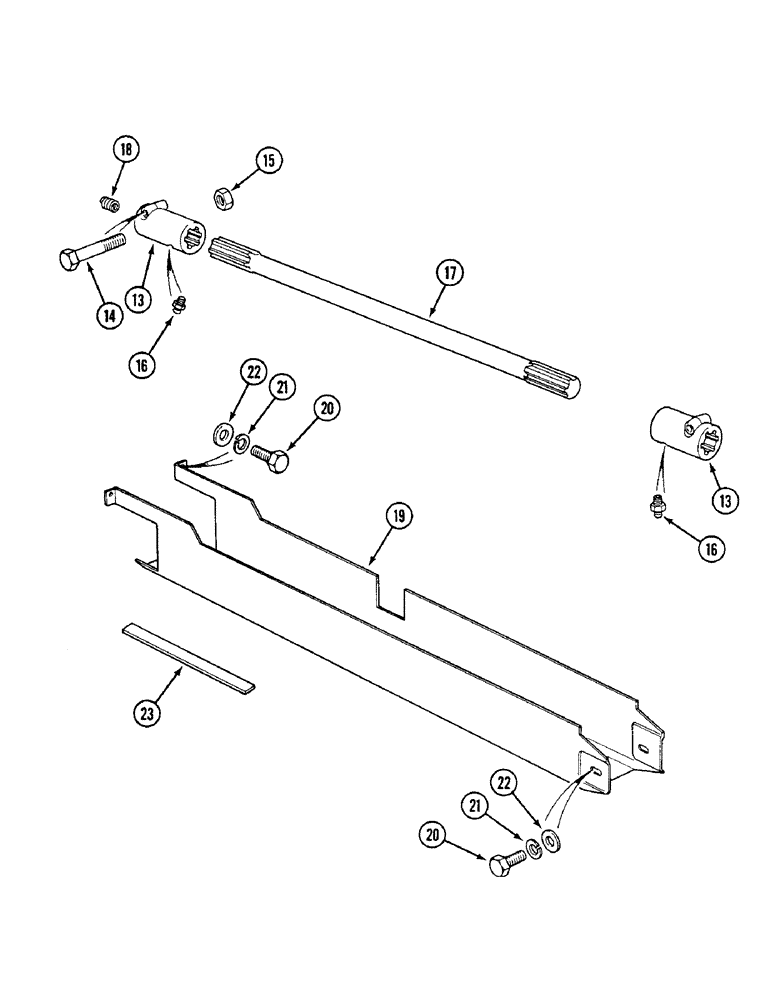

Запчасти Case IH 1494 (5-144) - FRONT AXLE DRIVE SHAFT, MFD TRACTORS, PRIOR TO P.I.N. 11518001 (05) - STEERING

13

K260761

SPLINED COUPLING

SLEEVE coupling, Carraro 102033/1

2шт.

14

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

hex, 10 - 1.25 x 60 mm, Carraro 21105

4шт.

15

K965414

NUT

M10, Carraro 22411

4шт.

16

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Carraro 24210 M6 x 1, 16mm lg

2шт.

17

K260760

DRIVE SHAFT

SHAFT drive, Carraro 106606

1шт.

18

K965410

SPRING

tension, Carraro 83787

1шт.

19

K205189

GUARD

drive shaft, Carraro 116144

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm, Carraro 20778

4шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

22

K965421

WASHER

8 mm, Carraro 23109

4шт.

23

K307295

STRIP

edging guard

2шт.
