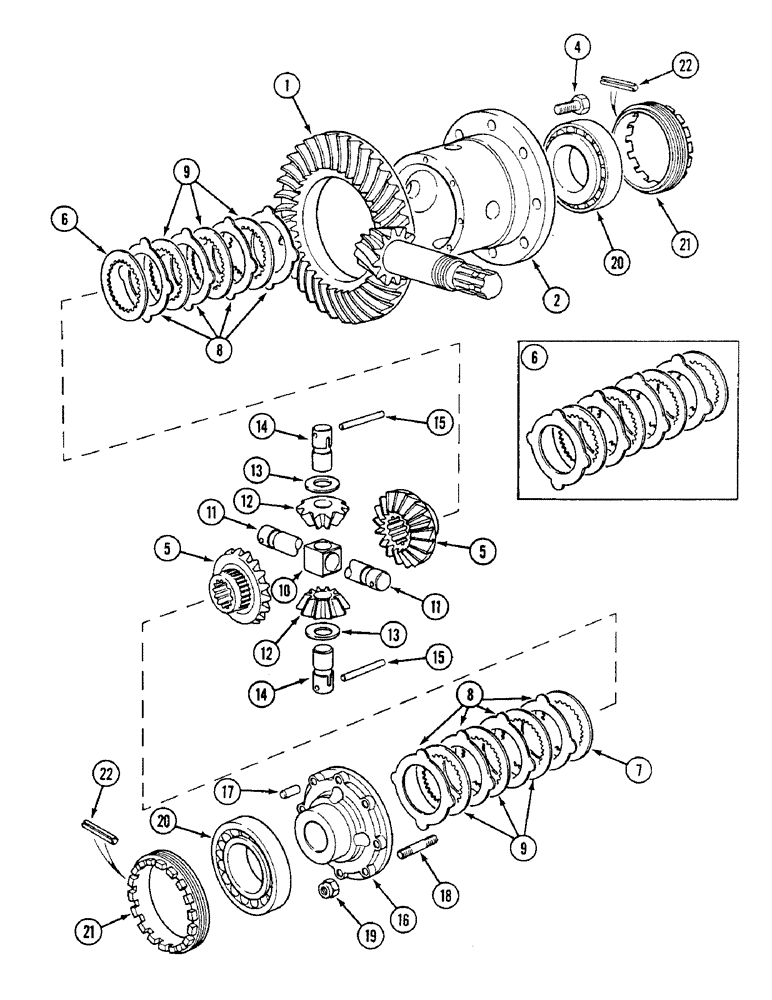

Запчасти Case IH 1494 (5-142) - FRONT AXLE DIFFERENTIAL, MFD TRACTORS, PRIOR TO P.I.N. 11518001 (05) - STEERING

1

K261012

GEAR, BEVEL

SPIRAL GEAR AND PINION, 8/35 ratio, Carraro 65397

1шт.

2

K260763

HOUSING

CAGE differential, Carraro 106764

1шт.

4

514-842

BOLT,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

Carraro 21134 Hex, M12 x 1.25 x 25, 8.8, Full Thd

8шт.

5

K260774

GEAR

WHEEL bevel, Carraro 112744

2шт.

6

K261651

PLATE

PACK friction, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

PLATE backing, 2.8 mm, Carraro 113884

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE backing, 2.7 mm, Carraro 113883

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE friction, outer, 1.3 mm, Carraro 113880

4шт.

9

NSS

NOT SOLD SEPARAT

PLATE friction, inner 1.6 mm, Carraro 113879

3шт.

10

K965353

BLOCK

pin, Carraro 84171

1шт.

11

K965352

PIN

block, Carraro 70270

1шт.

12

E43052

GEAR

PINION GEAR differential, Carraro 109848

2шт.

13

1967521C1

WASHER

WASHER, special

4шт.

14

K965354

PIN

pinion, Carraro 84167

2шт.

15

K965349

PIN

dowel, Carraro 70273

3шт.

16

K260762

PLATE

end, Carraro 105947

1шт.

17

K260177

PIN

DOWEL plate, Carraro 72259

2шт.

18

K260180

STUD

plate, Carraro 104407

6шт.

19

K260181

NUT

self-locking, Carraro 22412

6шт.

20

K965339

BEARING

taper roller, Carraro 27307

2шт.

21

K965338

LOCK

RING lock, Carraro 88697

2шт.

22

838-5422

LOCK PIN,M4 x 22, Slotted

PIN

2шт.
