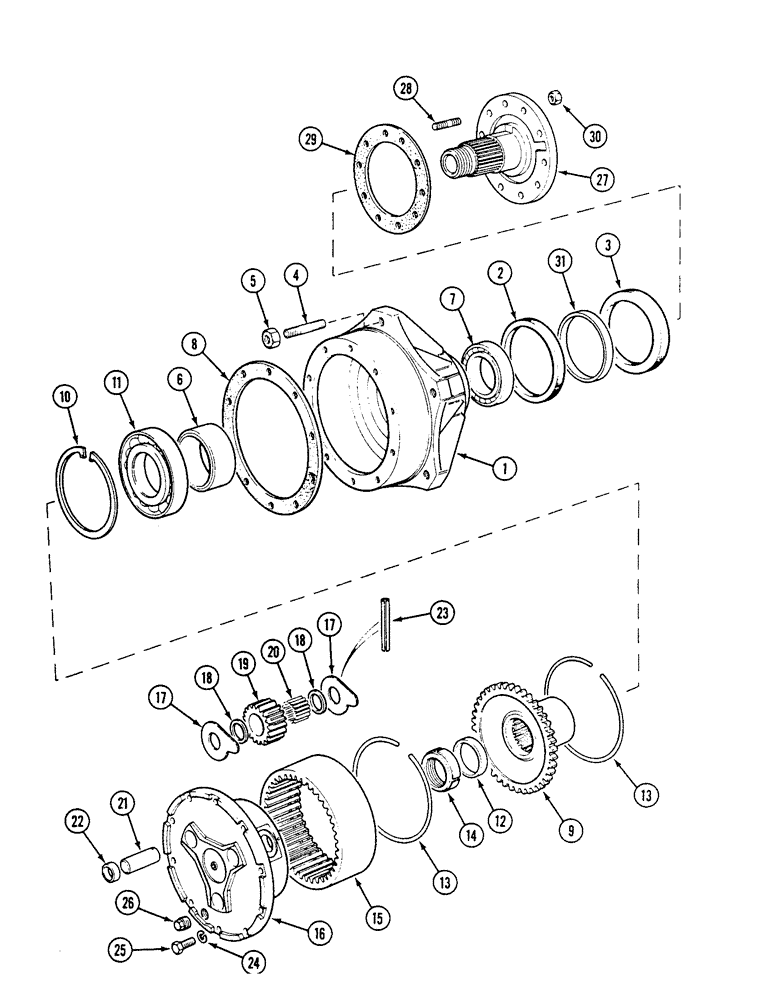

Запчасти Case IH 1494 (5-138) - FRONT HUBS AND PLANETARIES, MFD TRACTORS, PRIOR TO P.I.N. 11518001 (05) - STEERING

1

K965278

WHEEL

HUB wheel, prior to axle DB14/1440, order N8898 and 1349389C1

2шт.

1

1349389C1

HOUSING

HUB wheel, axle DB14/1440 and after

2шт.

2

K965323

GASKET

felt, Carraro 102148, prior to axle DB14/1440

2шт.

3

K965324

SEAL,140mm ID x 170mm OD x 15mm Thk

hub, Carraro 25346, prior to axle DB14/1440

2шт.

3

N8898

OIL SEAL

hub, Carraro 118678, axle DB14/1440 and after

2шт.

4

K205125

STUD

M14 x 52 mm, hub, steel wheel center

12шт.

5

K965326

WHEEL NUT

wheel, M14, Carraro 104782

12шт.

6

K965320

SPACER

bearing, Carraro 88641

2шт.

7

K965321

BALL BEARING

BEARING, inner, Carraro 25745

2шт.

8

K965304

GASKET

hub, Carraro 88643

2шт.

9

K965317

CARRIER

GEAR support, Carraro 88670

2шт.

10

K965318

RING, SNAP

RING snap, Carraro 24950

2шт.

11

K965319

BEARING ASSY

BEARING, outer, Carraro 25817

2шт.

12

K965316

BUSHING

SPACER bearing, Carraro 88673

2шт.

13

K965306

SNAP RING

RING snap, Carraro 88678

4шт.

14

K965315

RING NUT

lock, gear, Carraro 23319

2шт.

15

K965314

GEAR

internal, Carraro 88671

2шт.

16

N7546

SUPPORT ASSY.

HOUSING planetary, Carraro 110821

2шт.

17

K965310

BEARING WASHER

RETAINER bearing, Carraro 104479

12шт.

18

K965311

WASHER

gear, Carraro 100150

12шт.

19

K965308

GEAR

planetary, Carraro 100005

6шт.

20

K965309

NEEDLE

BEARING needle, Carraro 100148

138шт.

21

K965307

AXLE PIN

SHAFT gear, Carraro 100003

6шт.

22

K965301

HOLE PLUG BUTTON

PLUG shaft, Carraro 100002

6шт.

23

110677A1

SPLIT PIN/SAFETY PIN

PIN, Carraro 24368

6шт.

24

892-11010

LOCK WASHER,M10

20шт.

25

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd (Carraro 20852) Hex, M10 x 30, 8.8

20шт.

26

110782A1

PLUG, DRAIN

PLUG, 24 mm, Carraro 92269, Replaces: K965299

2шт.

27

K262149

SHAFT

AXLE stub, prior to axle DB14/1440, order also N8897 seal

2шт.

27

K262149

SHAFT

AXLE stub, Carraro 118399, axle DB14/1440 and after

2шт.

28

K965249

STUD

axle stub, Carraro 96840

20шт.

29

K965237

GASKET

stub axle, Carraro 92522

2шт.

30

905873R1

NUT,M14 x 1.5, G8

NUT self-locking, M14

20шт.

31

K261816

WEAR RING

SLEEVE wear, for use with K965278 hub

1шт.

31

1349396C1

RING

SLEEVE wear, for use with 1349389C1

2шт.
