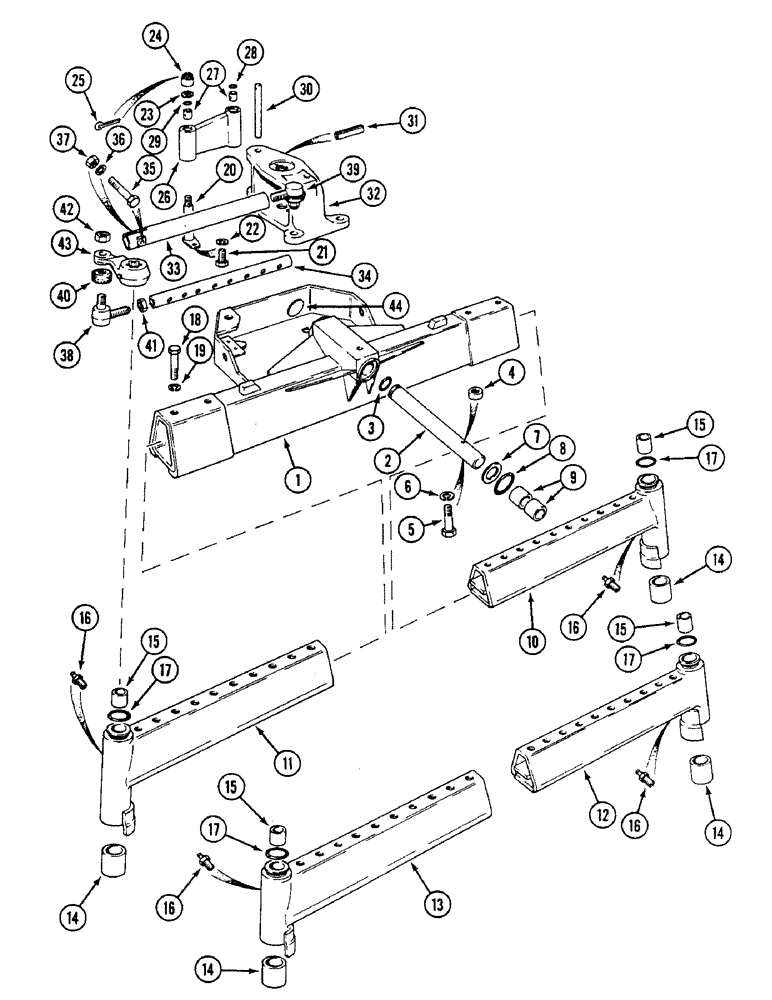

Запчасти Case IH 1494 (5-132) - FRONT AXLE, 60 TO 80 INCH, (1524 TO 2032 MM) TRACK, TWO WHEEL DRIVE (05) - STEERING

1

K956665

SHAFT

BEAM, center, 60 to 80 inch, 1524 to 2 032 mm, track widths

1шт.

2

K947516

TRUNNION

PIN trunnion

1шт.

3

K15596

RING,3.63mm Thk x 31.34mm ID

O-RING, 1-1/4 inch, 31 mm, ID

1шт.

4

K913092

NUT

BUSHING threaded

1шт.

5

K600505

BOLT

3/8 UNC x 2-3/4 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

K947188

FRICTION WASHER

WASHER thrust

2шт.

8

K24764

O-RING

2-5/8 inch, 67 mm, ID

2шт.

9

K15597

BUSHING

main frame

4шт.

10

K962815

BEAM

EXTENSION, left hand, standard clearance, Includes: Ref. 14 & 15

1шт.

10

K962972

AXLE

BEAM EXTENSION, left hand, high clearance axle, Includes: Ref. 14 & 15

1шт.

11

K962816

BEAM

EXTENSION, right hand, standard clearance axle, Includes: Ref. 14 & 15

1шт.

11

K962973

SHAFT

BEAM EXTENSION, right hand, high clearance axle, Includes: Ref. 14 & 15

1шт.

12

K965836

BEAM

EXTENSION, left hand, low clearance axle, Includes: Ref. 14 & 15

1шт.

13

K965837

BEAM

EXTENSION, right hand, low clearance axle, Includes: Ref. 14 & 15

1шт.

14

K621367

BUSHING

beam extension, lower

1шт.

15

K262775

COMPOSITE RING

BUSHING beam extension, upper

1шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

17

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

18

K601661

BOLT

7/8 UNC x 3-1/4 inch

4шт.

19

K626350

SPRING

WASHER lock, 7/8 inch

4шт.

20

K948543

PIN

pivot

1шт.

21

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

22

K19481

SPRING WASHER

WASHER lock, 5/16 inch

1шт.

23

K626921

WASHER

5/8 inch, 16 mm, special

2шт.

24

25-198

SLOTTED NUT,1/2"-20, G5, Thk

NUT, 1/2 inch UNF

1шт.

25

K19537

PIN

cotter, 1/8 x 1-1/8 inch

1шт.

26

K948540

LINK

pivot, Includes: Ref. 27

1шт.

27

K628741

BUSHING

link

4шт.

28

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

29

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

4шт.

30

K948542

PIVOT PIN

PIN pivot

1шт.

31

K690732

SPRING

PIN, 3/16 x 1-3/4 inch

1шт.

32

K948584

FORK

anchor

1шт.

33

K945876

TUBE,25.8 mm ID x 16.25 " L

spacer, 16 inch, 406 mm

2шт.

34

K945878

ROD

track, 16 inch, 406 mm

2шт.

35

K609027

BOLT

3/8 UNC x 2-1/4 inch

2шт.

36

492-11038

LOCK WASHER,3/8"

2шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

K207722

BALL JOINT

SOCKET ASSEMBLY ball, Includes: Ref. 40 - 42

2шт.

39

K207719

BALL JOINT

SOCKET ASSEMBLY ball, Includes: Ref. 40 - 42

2шт.

40

K962155

CAP

SEAL dirt

1шт.

41

K622500

LOCK NUT

lock, 3/4 inch

1шт.

42

131-377

LOCK NUT,5/8"-11, GC

NUT lock, ball joint, 5/8 inch UNC

1шт.

43

K942943

LEVER

steering

2шт.

44

41-1626

PLUG,Cup, 1 5/8", Stainless

42 mm diameter

1шт.

UK6641

KIT

high clearance, without cab

1шт.

UK260800

KIT

high clearance, with cab

1шт.
