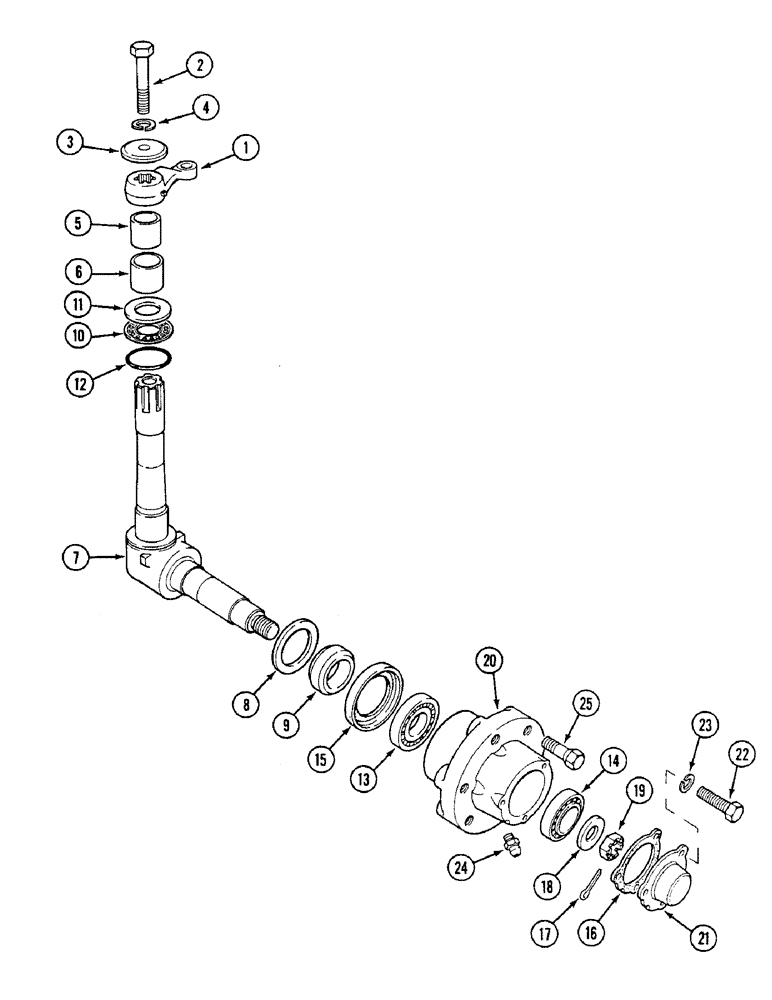

Запчасти Case IH 1494 (5-130) - STUB AXLES AND FRONT HUBS, TWO WHEEL DRIVE (05) - STEERING

1

K942943

LEVER

steering, 60 to 80 inch, 1524 to 2032 mm, track

2шт.

1

K204346

LEVER

steering, 64 to 88 inch, 1676 to 2235 mm, track

2шт.

2

K601213

BOLT

5/8 UNC x 3-1/4 inch

2шт.

3

K15595

WASHER

5/8 inch, 16 mm, special

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

K262775

COMPOSITE RING

BUSHING, upper beam extension

2шт.

6

K621367

BUSHING

lower, beam extension

2шт.

7

K962019

STEERING KNUCKLE

STUD AXLE, standard clearance axle, 9.820 inch to splines, Includes: Ref. 8 & 9

2шт.

7

K965838

SHAFT

STUD AXLE, low clearance axle, 5.820 inch to splines, Includes: Ref. 8 & 9

2шт.

7

K962974

SHAFT

STUD AXLE, high clearance axle, 16.310 inch to splines, Includes: Ref. 8 & 9

2шт.

8

K910429

SPACER

SEAL dirt

1шт.

9

K910428

RING RACE

SLEEVE oil seal

1шт.

10

K620180

THRUST BEARING

BEARING thrust, order A54022 and K626859

2шт.

11

K626692

DISC

WASHER thrust bearing, order K626859

4шт.

12

K24764

O-RING

2-5/8 inch, 67 mm, ID

2шт.

K962986

SEAL

KIT, bearings and seals, Includes: Ref. 13 - 17

2шт.

13

REF

INSTRUCTION

BEARING roller, tapered inner

1шт.

14

K19085

TAPERED BEARING,38.1mm ID x 72.02mm OD x 17.02mm W

BEARING roller, tapered, outer

1шт.

15

A27130

OIL SEAL

oil

1шт.

16

K15344

GASKET,0.25mm Thk

hub cap

1шт.

17

432-1024

COTTER PIN,5/32" x 1 1/2"

5/32" x 1 1/2"

1шт.

18

K626321

WASHER

idler shaft, 3/4 inch, 19 mm

2шт.

19

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT slotted, 3/4 inch

2шт.

20

K916377

HUB

front

2шт.

21

K908913

CAP

hub

2шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

23

K19481

SPRING WASHER

WASHER lock, 5/16 inch, order 492-11031

6шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

25

K600875

BOLT

wheel, 1/2 UNC x 1-7/8 inch

12шт.
