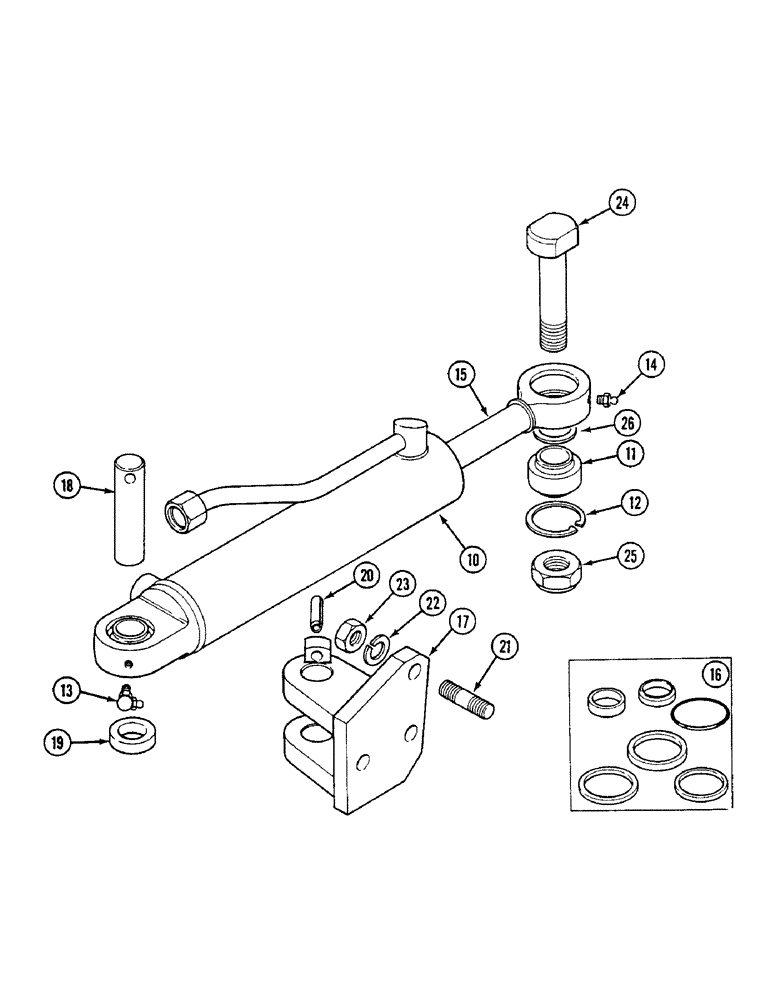

Запчасти Case IH 1494 (5-128) - STEERING CYLINDER, MFD TRACTORS - P.I.N. 11518001 AND AFTER (05) - STEERING

K262503

CYLINDER

ASSEMBLY steering, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE cylinder

1шт.

11

1966059C1

BEARING CAP

BEARING

2шт.

12

K262195

RING, LOCKING

RING snap, Carraro 43420

2шт.

13

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

1шт.

14

A52236

LUBE NIPPLE,M8 x 1

FITTING grease

2шт.

15

K262196

PISTON ROD

ROD piston, Carraro 43422

1шт.

16

K262197

KIT

repair, piston, sleeve and seals, Carraro 43423

1шт.

16

K262193

SEAL

KIT seals, O-rings, seals etc., Carraro 43421

1шт.

17

K395127

BRACKET

cylinder anchor, left-hand, Carraro 118998

1шт.

18

K395107

PIN,22mm OD x 97mm L

cylinder to bracket, Carraro 119298

1шт.

19

1966158C1

SPACER

pivot pin

1шт.

20

K395057

PIN

8 x 36 mm, Carraro 24445

1шт.

21

K395109

STUD

M14, axle housing, Carraro 71288

3шт.

22

933828R1

BELLEVILLE WASHER,M14 Bolt Size x 28.6mm OD x 1.5mm Thk

WASHER lock 14 mm

3шт.

23

905873R1

NUT,M14 x 1.5, G8

NUT, M14

3шт.

24

K395106

BOLT

M22 x 100 mm, Carraro 115779

1шт.

25

905877R1

NUT,M22 x 1.5, G8

NUT self locking, M22

1шт.

26

K395146

SPACER

pivot bolt

1шт.
