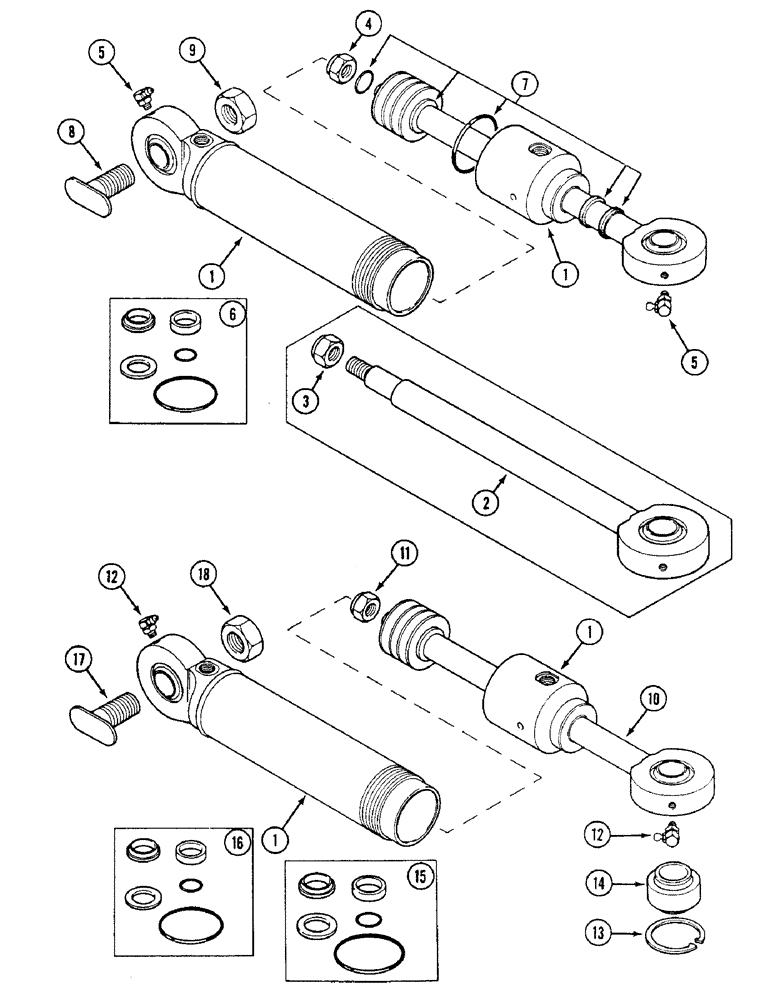

Запчасти Case IH 1494 (5-126) - STEERING CYLINDER, MFD TRACTORS - PRIOR TO P.I.N. 11518001 (05) - STEERING

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY steering, Carraro 104773, Laverda cylinder, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder, 60 mm OD

1шт.

2

K260529

PISTON

ROD piston, 12, Carraro 43441, order K262249

1шт.

3

905834R1

THIN NUT,M12 x 1.25, Thin

Hex M12 x 1.25, Thin

1шт.

4

102894A1

LOCK NUT

NUT hex

1шт.

5

713608R91

LUBE NIPPLE,90 Degree, M8 x 1

3шт.

6

K262249

PACKAGE

KIT seals, piston and piston rod, M16, Carraro 43410

1шт.

7

K262249

PACKAGE

KIT seals, piston and piston rod, M16, Carraro 43410

1шт.

8

K260527

PIN

BOLT, M22 x 70, special, Carraro 110771

2шт.

9

K260528

LOCK NUT

lock, M22, Carraro 22443

2шт.

K260281

STEERING CYLINDER

CYLINDER ASSEMBLY steering, Carraro 104773, Giuliana cylinder, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE cylinder, 60 mm OD

1шт.

2

K261654

ROD

piston, M14, use K262248 and K262196, Carraro 43493

1шт.

3

K261655

NUT

piston rod, M14, Carraro 22428

1шт.

10

K262196

PISTON ROD

ROD piston, M16

1шт.

11

102894A1

LOCK NUT

NUT hex

1шт.

12

905251R1

LUBE NIPPLE,90 Degree, M6 x 1

FITTING, 90 degree lube, Carraro 24212

3шт.

13

K262195

RING, LOCKING

RING snap, Carraro 43420

2шт.

14

1966059C1

BEARING CAP

BEARING SPHERICAL

2шт.

15

K262248

KIT

seals and piston, M16, Carraro 43416

1шт.

16

K261653

SEAL

KIT, seals and piston, M14, Carraro 43484, use K262248 and K262196

1шт.

17

K260527

PIN

BOLT, M22 x 70, special, Carraro 110771

2шт.

18

K260528

LOCK NUT

lock, M22, Carraro 22443

2шт.
