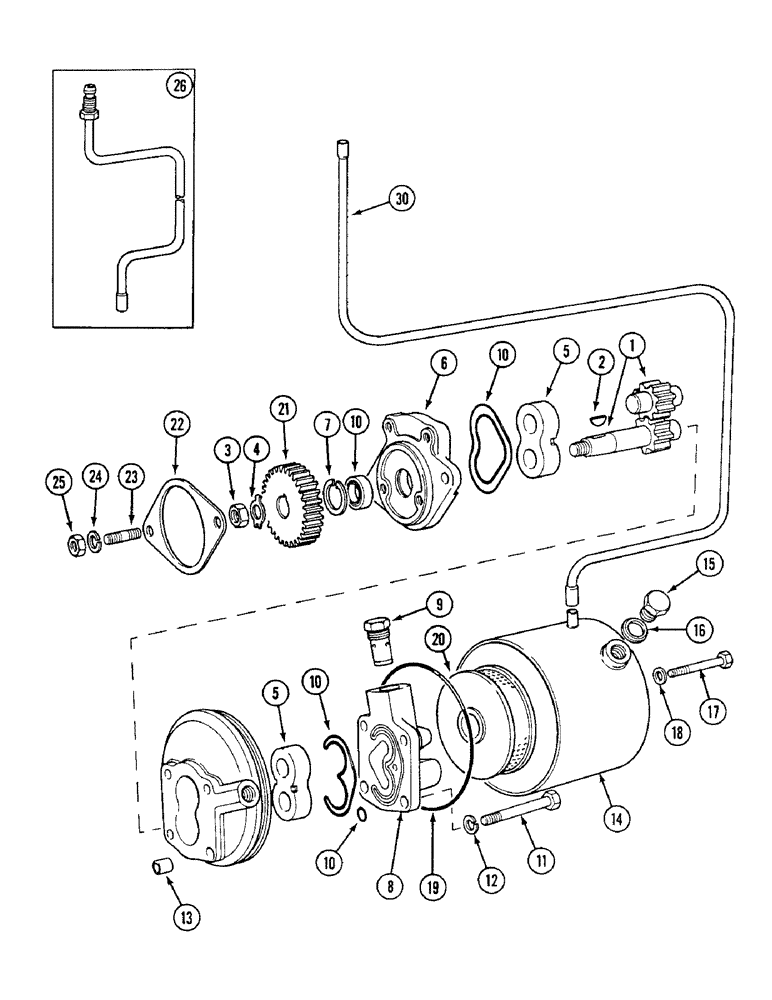

Запчасти Case IH 1494 (5-122) - STEERING PUMP AND RESERVOIR (05) - STEERING

K207451

PUMP

ASSEMBLY, Includes: Ref. 1 - 20

1шт.

REF

INSTRUCTION

KIT rotors, order components, Includes: Ref. 1 - 4

1шт.

1

K964934

GEAR

ROTOR pump, set of

1шт.

2

425-157

JAM NUT,Jam, 7/16"-20, G5

hex, jam, 7/16 inch NF

1шт.

3

K626380

WASHER

tab, gear, 7/16 inch, tab

1шт.

4

K962189

BEARING

pump, pair

1шт.

5

K261641

FLANGE

mounting

2шт.

6

K261642

FLANGE

Includes: Ref. 8

1шт.

7

K962097

RING, SNAP

RING snap, 13/16 inch diameter

1шт.

8

K964632

VALVE

COVER pump body

1шт.

9

K964632

VALVE

relief, 1850 PSI, 12 756 kPa, Includes: Ref. 10

1шт.

10

K964935

SEAL

KIT, seals and o-rings

1шт.

11

K965769

BOLT

3/8 UNC x 3-1/8 inch, Includes: Ref. 12 & 13

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

K964920

PIN

DOWEL ring

2шт.

14

K261063

RESERVOIR

ASSEMBLY, Includes: Ref. 15

1шт.

15

K623849

PLUG

sump drain, 1/2 inch BSP, order also K626317

1шт.

16

K626769

WASHER

sealing

1шт.

17

K964930

BOLT

5/16 UNC X 2-3/8 Inch, Includes: Ref. 18 & 19

1шт.

18

K15498

SEALING WASHER

WASHER sealing, 5/16 inch, 8 mm

1шт.

19

K965217

RING

sealing, Serial Range: reservoir-pump

1шт.

20

K964954

FILTER

ELEMENT filter

1шт.

21

K945098

PINION

GEAR, 28 teeth

1шт.

22

K919729

GASKET,0.76mm Thk

plate to carrier plate

1шт.

23

K608161

STUD

5/16 UNC x 1 inch

2шт.

24

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

5/16 inch UNC

2шт.

26

K204271

PIPE

TUBE breather, prior to PIN 11429672

1шт.

30

K210368

PIPE,0.312" OD

TUBE breather, PIN 11429672 and after

1шт.
