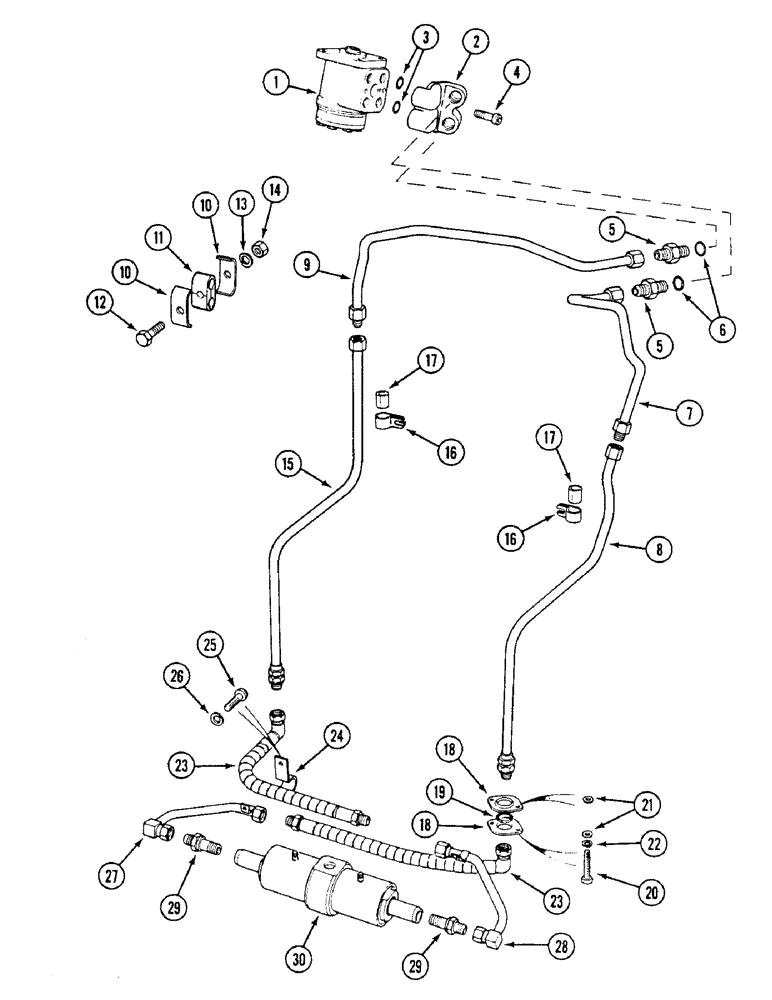

Запчасти Case IH 1494 (5-118) - STEERING CYLINDER AND TUBES, TWO WHEEL DRIVE TRACTORS WITH CAB (05) - STEERING

1

K207419

VALVE

ASSEMBLY steering

1шт.

2

K207388

BLOCK

valve connections

1шт.

3

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

4

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

M10 x 30 mm

2шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, straight, 3/4-16 inch flare x O-ring boss

2шт.

6

K623591

O-RING

5/8 inch, 16 mm ID, order 237-6008

2шт.

7

K207447

PIPE

TUBE, left hand, upper

1шт.

8

K202981

PIPE,0.5" OD x 16.156, 12.125" L

TUBE, left hand, lower

1шт.

9

K207446

PIPE

TUBE, right hand, upper

1шт.

10

K951982

SHIM

CLAMP tube

2шт.

11

K951993

SLEEVE

tube

2шт.

12

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

825-1410

NUT,M10, Cl 8

1шт.

15

K202919

PIPE,0.66" DIA x 19.5, 10.875" L

TUBE, right hand, lower

1шт.

16

K628372

CLIP

CLAMP tubes

2шт.

17

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE nylon

2шт.

18

K945907

RING, SNAP

clamp

4шт.

19

K628856

O-RING,0.649" ID x 0.25" Width

5/8 inch, 16 mm ID

2шт.

20

K602704

SCREW

BOLT, 1/4 UNC x 7/8 inc, order 413-414

4шт.

21

K626662

WASHER

1/4 inch

8шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

23

K952959

HOSE

TUBE, flexible

2шт.

24

K952958

CLIP

CLAMP, tube

1шт.

25

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

machine, No. 10 NC x 1/2 inch

1шт.

26

K19481

SPRING WASHER

WASHER lock, 5/16 inch, order 492-11031

1шт.

27

K205929

PIPE,7.531, 5.906" L

TUBE, right hand

1шт.

28

K205928

PIPE,8.25, 6.062" L

TUBE, left hand

1шт.

29

K626095

FITTING

UNION, 3/4 inch UNF

2шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY, See Figure 5-124

1шт.
