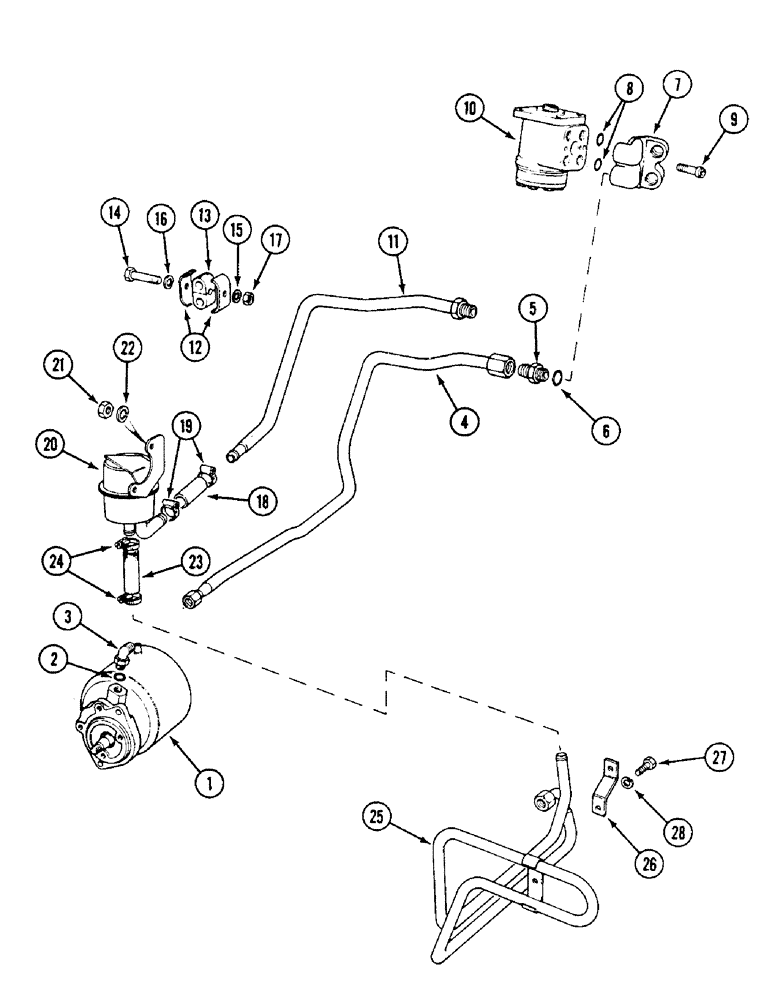

Запчасти Case IH 1494 (5-116) - STEERING PUMP AND TUBES, TRACTORS WITH CAB (05) - STEERING

1

K207451

PUMP

ASSEMBLY, See Figure 5-122

1шт.

3

K622110

FITTING

ELBOW, 9/16 inch UNF, order 218-5105

1шт.

4

K207405

PIPE

TUBE, Serial Range: pump-valve

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8-14 flare x 3/4-16 inch O-ring boss

1шт.

6

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

7

K207388

BLOCK

valve connections

1шт.

8

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

4шт.

9

K653941

HEX SOC SCREW,M10 x 1 x 30mm, Cl 12.9

M10 x 30 mm

2шт.

9

B92570

BOLT

SCREW, M10 x 30 mm, Allen head, for recessed holes

2шт.

10

K207419

VALVE

ASSEMBLY steering

1шт.

11

K207404

PIPE

TUBE valve return

1шт.

12

K951982

SHIM

CLAMP tube

2шт.

13

K951993

SLEEVE

tube

2шт.

14

814-10010

BOLT,Hex, M10 x 1.5 x 10mm, Cl 8.8, Full Thd

M10 x 10 mm

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

K651779

WASHER

10 mm

1шт.

17

825-1410

NUT,M10, Cl 8

1шт.

18

K627662

HOSE

3/4 x 2-1/2 inch, 19 x 64 mm

1шт.

19

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. #08, 0.50/0.91 Type F Worm

2шт.

20

K302508

TANK

RESERVOIR steering fluid

1шт.

21

280136

NUT,3/8"-16, G8

2шт.

22

492-11038

LOCK WASHER,3/8"

order 425-106 3/8"

2шт.

23

K204350

HOSE

return connector, 1/2 x 3 inch, 13 x 76 mm, order D118466

1шт.

24

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

25

K207437

PIPE

COIL cooling

1шт.

26

K307666

BRACKET

coil support

1шт.

27

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

1шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
