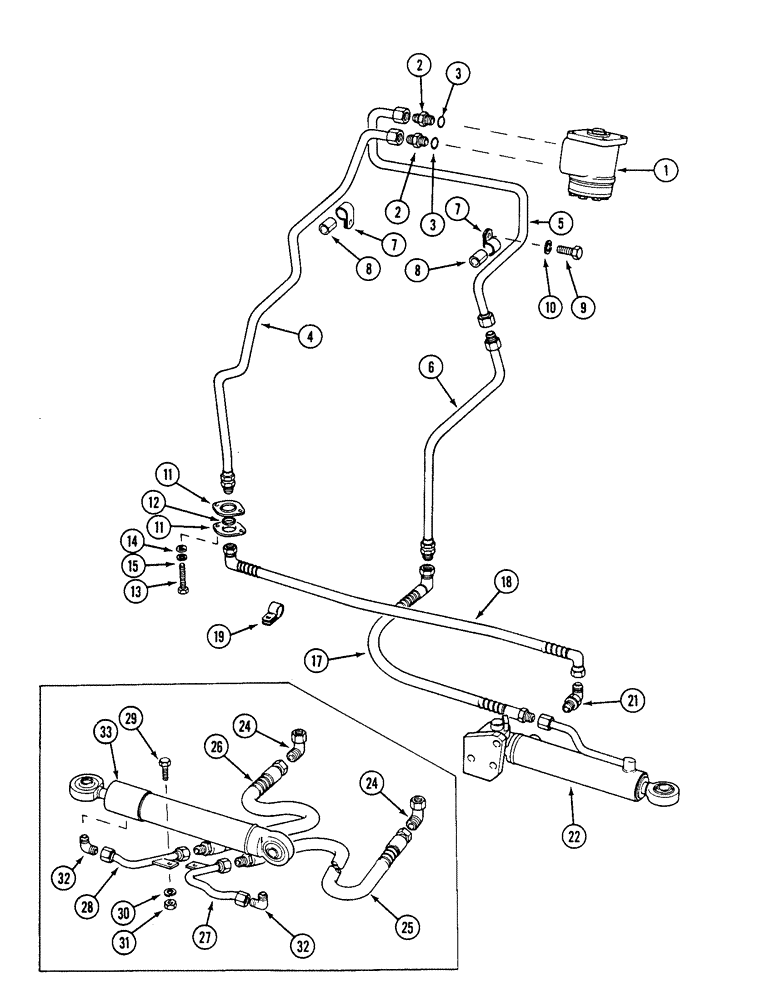

Запчасти Case IH 1494 (5-112) - STEERING CYLINDER AND TUBES, MFD TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY steering

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, straight, 3/4-16 inch flare x O-ring boss

2шт.

3

K623591

O-RING

5/8 inch, 16 mm ID

2шт.

4

K202013

PIPE

TUBE, right hand

1шт.

5

K202014

PIPE

TUBE, upper, left hand

1шт.

6

K202015

PIPE

TUBE, lower, left hand

1шт.

7

K621717

CLIP

CLAMP tube

1шт.

8

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE nylon

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

K945907

RING, SNAP

clamp

4шт.

12

K628856

O-RING,0.649" ID x 0.25" Width

5/8 inch, 16 mm ID

2шт.

13

K602704

SCREW

BOLT, 1/4 UNC x 7/8 inch

4шт.

14

K626662

WASHER

1/4 inch

8шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

K210213

HOSE

TUBE flexible, 3/4 UNF x 21 inch, tractors P.I.N. 11518001 and after

1шт.

18

K210212

HOSE

TUBE flexible, 3/4 UNF x 30 inch, tractors P.I.N. 11518001 and after

1шт.

19

K13116

CLIP

tube, order K621686, tractors P.I.N. 11518001 and after

1шт.

21

K395116

FITTING

ELBOW, M18 x 3/4 inch UNF, tractors P.I.N. 11518001 and after

1шт.

22

REF

INSTRUCTION

CYLINDER ASSEMBLY steering, left hand, See Figure 5-128, tractors P.I.N. 11518001 and after

1шт.

24

K260228

FITTING

ELBOW, Carraro 105935, tractors prior to P.I.N. 11518001

2шт.

25

K205101

HOSE ASSY.

TUBE flexible, left hand, Carraro 105869, tractors prior to P.I.N. 11518001

1шт.

26

K260778

HOSE

TUBE flexible, right hand, tractors prior to P.I.N. 11518001

1шт.

27

K260227

PIPE

TUBE rigid, left hand, Carraro 101521, tractors prior to P.I.N. 11518001

1шт.

28

K260226

PIPE

TUBE rigid, right hand, Carraro 101520, tractors prior to P.I.N. 11518001

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, Carraro 20781, tractors prior to P.I.N. 11518001

1шт.

30

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Carraro 22856, Tractors prior to P.I.N. 11518001 M8

1шт.

31

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Tube Screw, Carraro 22115, Tractors prior to P.I.N. 11518001

1шт.

32

K260225

FITTING

ELBOW cylinder tube, Carraro 101522, tractors prior to P.I.N. 11518001

2шт.

33

REF

INSTRUCTION

CYLINDER ASSEMBLY steering, Carraro 104773, See Figure 5-126, tractors prior to P.I.N. 11518001

1шт.
