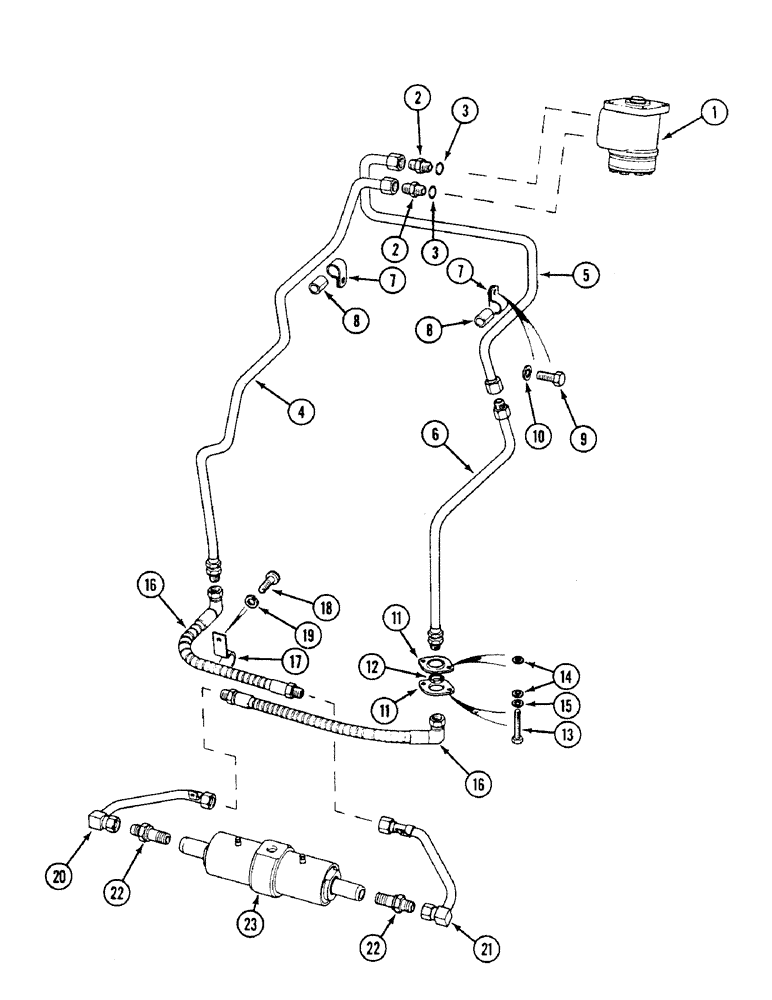

Запчасти Case IH 1494 (5-110) - STEERING CYLINDER AND TUBES, TWO WHEEL DRIVE TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY steering

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER, straight, 3/4-16 inch flare x O-ring boss

2шт.

3

K623591

O-RING

5/8 inch, 16 mm ID

2шт.

4

K202013

PIPE

TUBE, right hand

1шт.

5

K202014

PIPE

TUBE, upper, left hand

1шт.

6

K202015

PIPE

TUBE, lower, left hand

1шт.

7

K621717

CLIP

CLAMP tube

1шт.

8

K926858

TUBE,0.47" ID x 0.625" OD x 1" L

SLEEVE nylon

1шт.

9

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

10

892-11010

LOCK WASHER,M10

1шт.

11

K945907

RING, SNAP

clamp

4шт.

12

K628856

O-RING,0.649" ID x 0.25" Width

5/8 inch, 16 mm ID

2шт.

13

K602704

SCREW

BOLT, 1/4 UNC x 7/8 inch

4шт.

14

K626662

WASHER

1/4 inch

8шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

K952959

HOSE

TUBE flexible

2шт.

17

K952958

CLIP

CLAMP tube

1шт.

18

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

machine, No. 10 NC x 1/2 inch

1шт.

19

K19481

SPRING WASHER

WASHER lock, 5/16 inch

1шт.

20

K205929

PIPE,7.531, 5.906" L

TUBE, right hand

1шт.

21

K205928

PIPE,8.25, 6.062" L

TUBE, left hand

1шт.

22

K626095

FITTING

UNION 3/4 inch UNF

2шт.

23

REF

INSTRUCTION

CYLINDER ASSEMBLY, See Figure 5-124

1шт.
