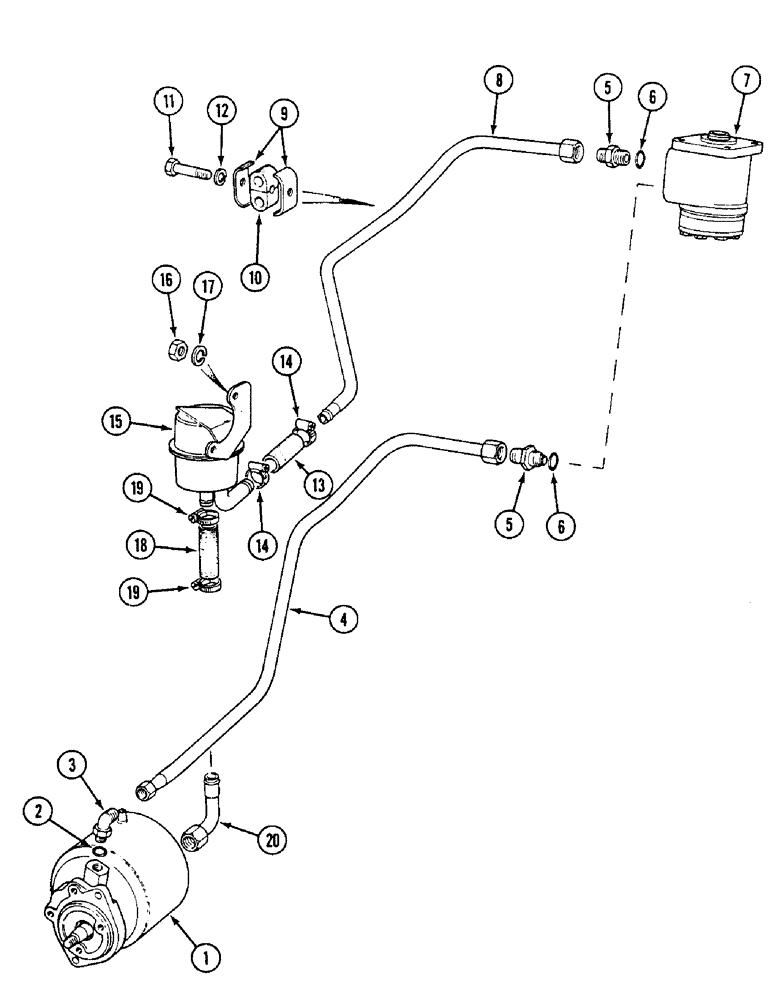

Запчасти Case IH 1494 (5-108) - STEERING PUMP AND TUBES, TRACTORS WITHOUT CAB (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY, See Figure 5-122

1шт.

3

K622110

FITTING

ELBOW, 9/16 inch UNF

1шт.

4

K204472

PIPE,0.625" OD x 30.937, 7.125" L

TUBE, pump outlet

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., 7/8-14 flare x 3/4-16 inch O-ring boss

2шт.

6

K623591

O-RING

5/8 inch, 16 mm ID

2шт.

7

K207419

VALVE

ASSEMBLY steering, Orbitol OSP12, 5, See Figure 5-106

1шт.

8

K204471

PIPE

TUBE pump return

1шт.

9

K951982

SHIM

CLAMP tube

2шт.

10

K951993

SLEEVE

tube

2шт.

11

K650365

BOLT

M10 x 50 mm

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

K626809

HOSE

return connector, 1/2 x 2-5/8 inch,13 x 67 mm

1шт.

14

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

15

K302508

TANK

RESERVOIR steering fluid

1шт.

16

280136

NUT,3/8"-16, G8

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

REF

INSTRUCTION

HOSE return connector, 5/8 x 3 inch, cut from 97252CX

1шт.

19

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

20

K204351

PIPE,0.625" OD x 4.5, 3.187" L

TUBE pump inlet

1шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
