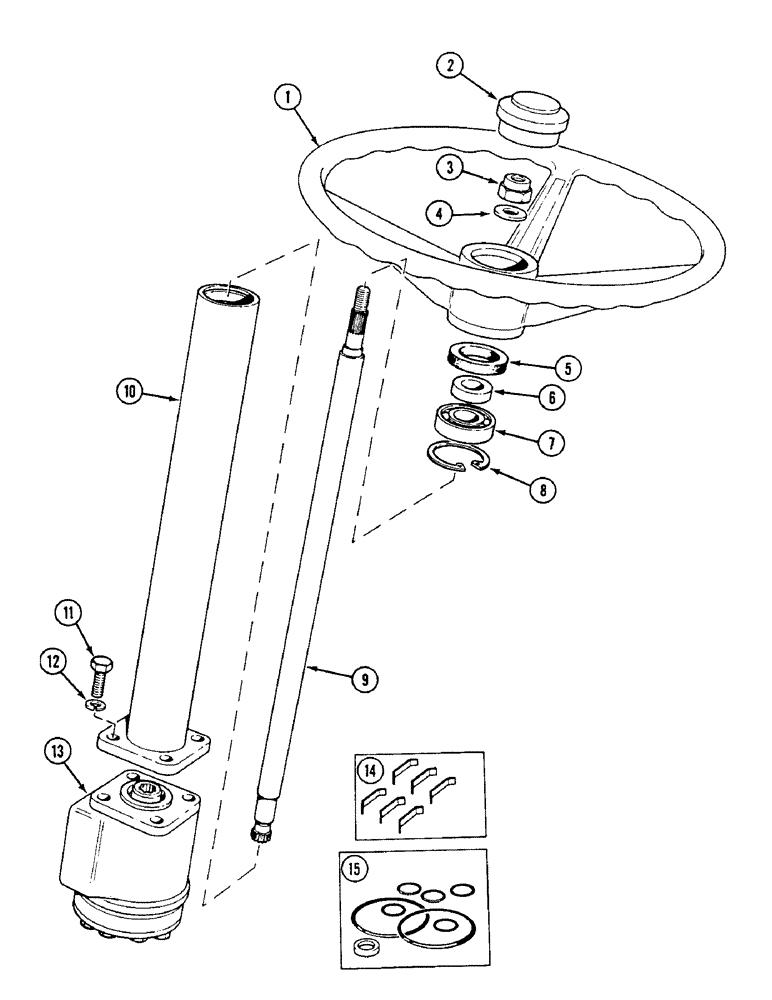

Запчасти Case IH 1494 (5-106) - STEERING COLUMN AND VALVE, TRACTORS WITHOUT CAB (05) - STEERING

1

K949446

HANDWHEEL

WHEEL steering

1шт.

2

K262737

CAP

hub, order also K691285 Seal

1шт.

3

231-1448

NUT,1/2"-13, GB

hex, self locking, 1/2 inch NC

1шт.

4

K626686

WASHER

flat, 1/2 inch, 13 mm

1шт.

5

K623479

WASHER

felt, 1/2 inch, 13 mm ID

1шт.

6

K627103

BUSHING

SPACER bearing

1шт.

7

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

disc

1шт.

8

K11911

RING, SNAP

RING snap, 1-5/8 inch, 41 mm, internal

2шт.

9

K201585

SHAFT

steering, 14-1/4 inch, 362 mm

1шт.

10

K201581

FLANGE

COLUMN steering, 11-7/16 inch, 291 mm

1шт.

11

K600403

BOLT

3/8 UNC x 1-3/8 inch

4шт.

12

492-11038

LOCK WASHER,3/8"

4шт.

13

K207419

VALVE

ASSEMBLY steering, Orbitol-OPS-125, Includes: Ref. 14 & 15

1шт.

14

1272809C1

PACKAGE

KIT spring, set of four, Includes: ring

1шт.

K964156

RING

retaining

6шт.

15

1500443C91

SEAL KIT

KIT service

1шт.
