Запчасти Case IH 1494 (4-104) - RADIO AND ANTENNA, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

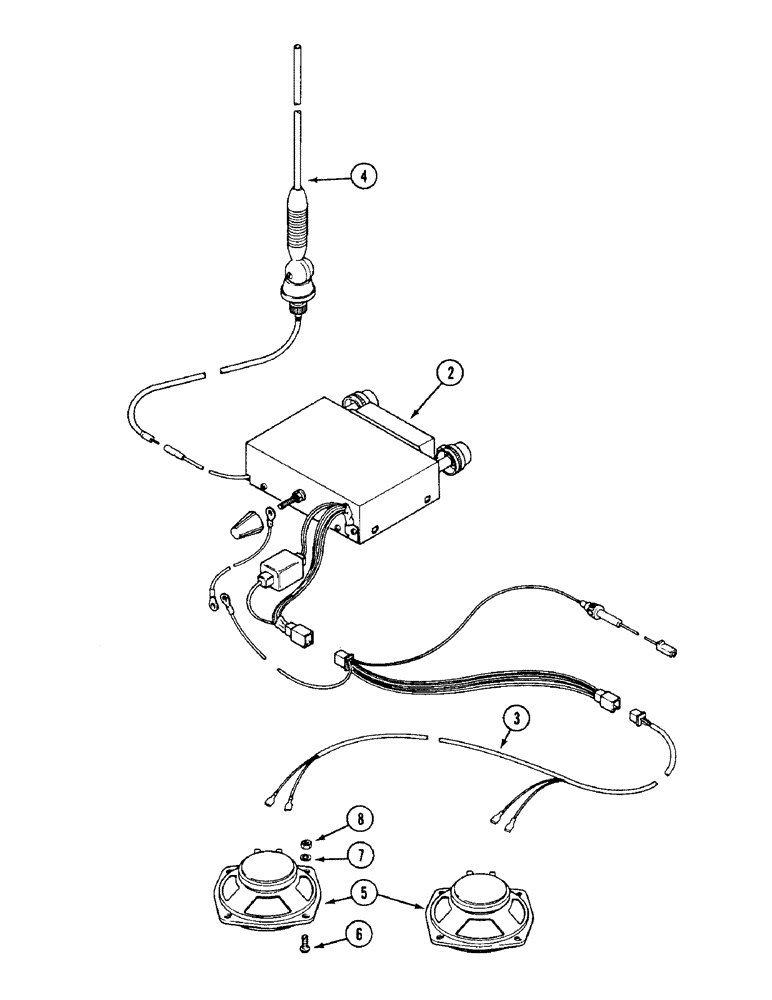

Схема запчастей Case IH 1494 - (4-104) - RADIO AND ANTENNA, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS
6
7
4
5
3
8
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

RADIO KIT AM, Includes Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO AM, order A167872, Ref no. A164228

1шт.

3

F66160

HARNESS

speaker leads, speaker

1шт.

4

97080C1

ANTENNA

radio, Replaces: A62457

1шт.

A180797

RADIO

KIT radio, AM-FM stereo, does not include speakers, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO AM-FM, order A167873, Ref no. A164227

1шт.

3

F66160

HARNESS

speaker leads, speaker

1шт.

4

97080C1

ANTENNA

radio, Replaces A62457

1шт.

REF

INSTRUCTION

RADIO KIT AM-FM, with eight track tape player, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO AM-FM, with eight track, order A167874, Ref no. A164229

1шт.

3

F66160

HARNESS

speaker

1шт.

4

97080C1

ANTENNA

radio, Replaces: A62457

1шт.

A167505

CLEANER

tape player head, not shown

1шт.

REF

INSTRUCTION

RADIO KIT AM-FM, with cassette tape player, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

RADIO AM-FM, with cassette, order A167875, Ref no. A164226

1шт.

3

F66160

HARNESS

speaker

1шт.

4

97080C1

ANTENNA

radio, Replaces: A62457

1шт.

A167499

CLEANER

tape player head, not shown

1шт.

5

A169501

SPEAKER

radio

2шт.

6

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

8шт.

7

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

8

225-14110

NUT,#10-24

8шт.

Выбрано товаров: 22
