Запчасти Case IH 1494 (4-102) - REAR WINDOW WIPER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

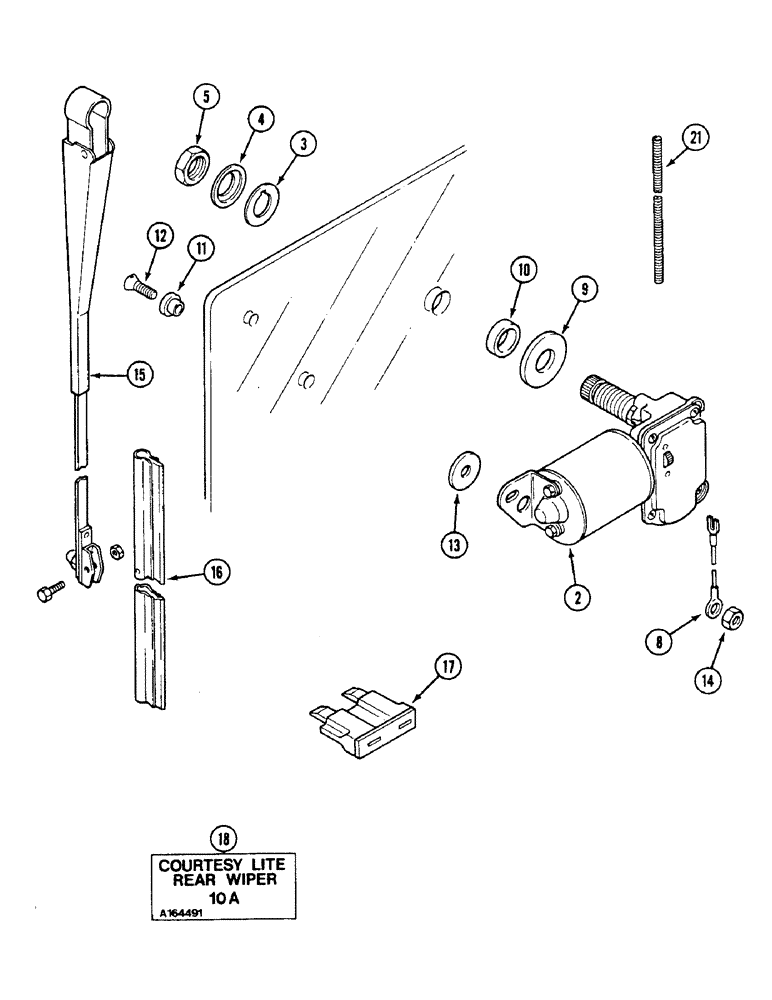

Схема запчастей Case IH 1494 - (4-102) - REAR WINDOW WIPER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS
17
11
16
15
5
9
21
14
4
18
8
12
3
13
10
2

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

KIT wiper, rear window, order individual items, Includes: Ref. 2 - 18

1шт.

2

F93209

WIPER MOTOR

MOTOR wiper, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER leather, order F93209

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER wiper motor, order F93209

1шт.

5

NSS

NOT SOLD SEPARAT

NUT wiper motor, order F93209

1шт.

8

A165075

ELECTRICAL WIRE

WIRE ground, wiper motor

1шт.

9

A165073

WASHER

nylon, 5/8 x 1-1/2 x 7/64 inch, 16 x 38 x 3 mm

1шт.

10

A165074

SPACER

nylon, 41/64 x 7/8 x 1/4 inch, 16 x 22 x 6 mm

1шт.

11

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

motor mounting

1шт.

12

142-102

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

mounting, Phillips head, No. 10-24 x 3/4 inch

1шт.

13

A165076

WASHER,7.87mm ID x 25.4mm OD x 3.05mm Thk

nylon, 5/16 x 1 x 7/64 inch, 8 x 25 x 3 mm

1шт.

14

230-42409

NUT,#10-24, GA

NUT hex, self locking, No. 10 NC

1шт.

15

D78019

WIPER ARM

ARM wiper blade

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE wiper

1шт.

17

A149800

FUSE,10 Amp

10 ampere

1шт.

18

A164491

DECAL

fuse

1шт.

21

L77320

CONDUIT

wire

1шт.

Выбрано товаров: 17
