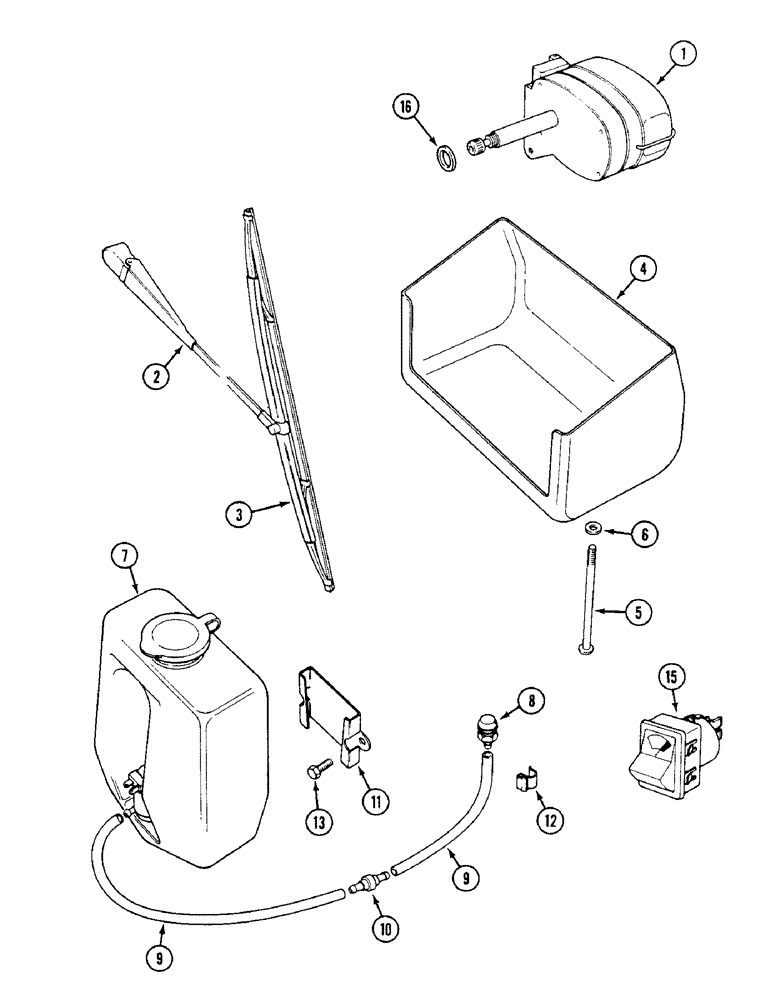

Запчасти Case IH 1494 (4-100) - WINDSHIELD WIPER AND WASHER, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K309641

MOTOR, ELECTRIC

MOTOR windshield wiper

1шт.

2

K303717

WIPER ARM

ARM windshield wiper

1шт.

3

K262711

WIPER BLADE

BLADE windshield wiper

1шт.

4

K307577

COVER

wiper motor

1шт.

5

K652510

SCREW,Pan, M5 x 0.8 x 100mm, Gr 4.8

M5 x 100 mm

1шт.

6

K651776

WASHER

5 mm

1шт.

NSS

NOT SOLD SEPARAT

WASHER ASSEMBLY windshield, Includes: Ref. 7 - 11

1шт.

7

K304596

RESERVOIR

washer

1шт.

8

3129899R92

JET

NOZZLE washer

1шт.

9

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

1/4 inch, 6 mm OD x 210 inch

1шт.

10

K307050

VALVE

non-return

1шт.

11

K304597

SUPPORT

BRACKET support, reservoir

1шт.

12

K625021

CLIP

STRAP tube, 5/16 inch

4шт.

13

K602748

SCREW

BOLT, 1/4 UNC x 3/8 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

245911C1

TOGGLE SWITCH

SWITCH rocker

1шт.

16

K627330

BUSHING

SPACER wiper spindle

2шт.
