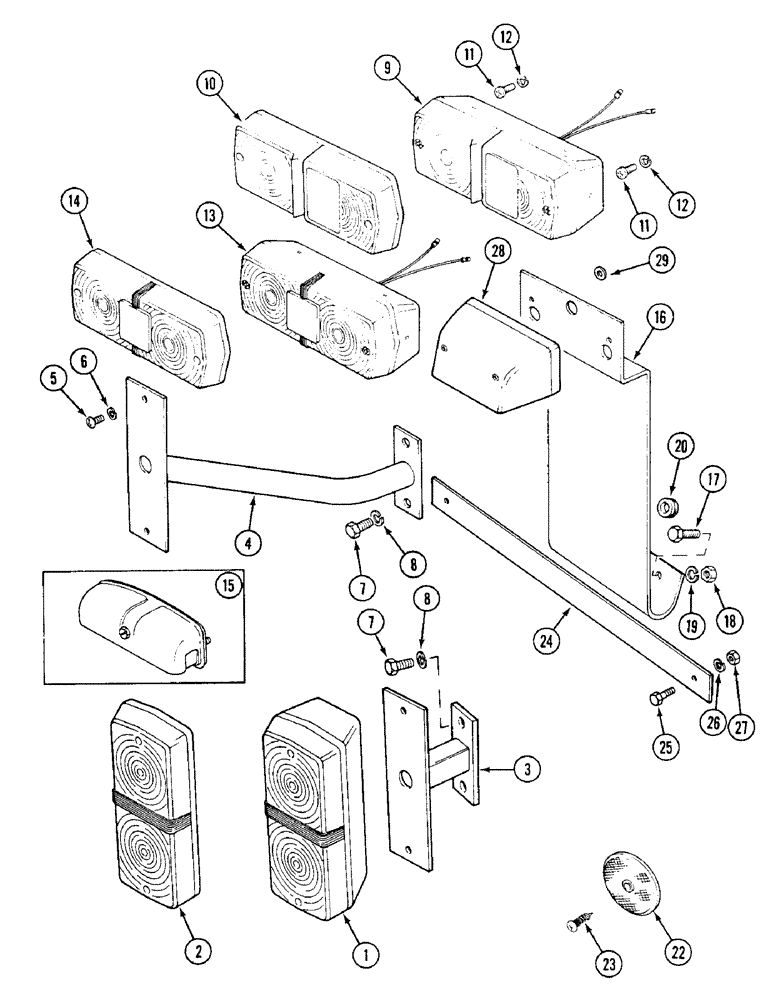

Запчасти Case IH 1494 (4-098) - SIDE AND REAR WARNING LAMPS, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY, front, side flasher, Includes: Ref. 2 and bulbs

2шт.

1094366R1

BULB

turn signal, front

1шт.

1094368R1

BULB

side lamp

1шт.

2

K261792

LENS

lamp

1шт.

3

K306555

SUPPORT

BRACKET lamp, front, short, 65 mm

2шт.

4

K308005

SUPPORT

BRACKET lamp, front, long

2шт.

5

K613146

SCREW

1/4 UNC x 1/2 inch

4шт.

6

K626341

SPRING WASHER

WASHER lock, 1/4 inch

4шт.

7

K653350

SCREW

M8 x 16 mm

4шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

9

K304885

LIGHT ASSY.

LAMP ASSEMBLY, stop, flasher, rear, Includes: Ref. 10 and bulbs

2шт.

1094366R1

BULB

turn signal, rear

1шт.

1094367R1

BULB

lamp, side

1шт.

10

K261791

LENS

lamp

1шт.

11

K613146

SCREW

1/4 UNC x 1/2 inch

4шт.

12

K626341

SPRING WASHER

1/4 inch

4шт.

1094366R1

BULB

turn signal, rear

1шт.

1094367R1

BULB

lamp, side

1шт.

13

K304885

LIGHT ASSY.

LAMP ASSEMBLY, stop, flasher, rear, right hand, North America only, Includes: Ref. 14 and bulbs

1шт.

1094366R1

BULB

turn signal, rear

1шт.

1094367R1

BULB

lamp, side

1шт.

14

K261790

LENS

lamp

2шт.

15

K207036

LIGHT ASSY.

LAMP number plate, rear, Not North America

1шт.

16

K302275

BRACKET

support, Not North America

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

18

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

K627754

GROMMET

wire, 14 mm

1шт.

22

K302778

REFLECTOR

red

2шт.

23

K624797

SCREW

self tapping, No., 6 x 1/2 inch

2шт.

24

K309222

BRACKET

reflector

2шт.

25

K652504

SCREW

M5 x 16 mm

2шт.

26

K651846

WASHER, LOCK

WASHER lock, 5 mm

2шт.

27

825-1405

NUT,M5, Cl 8

2шт.

28

K311864

INTERIOR LIGHT

LAMP number plate, rear, with harness, Replaces: K207036

1шт.

29

K651813

WASHER

special, plain

2шт.
