Запчасти Case IH 1494 (4-096) - LAMPS, WIRING AND REFLECTORS, LOW PROFILE SPECIAL, P.I.N. 11194591 AND AFTER (04) - ELECTRICAL SYSTEMS

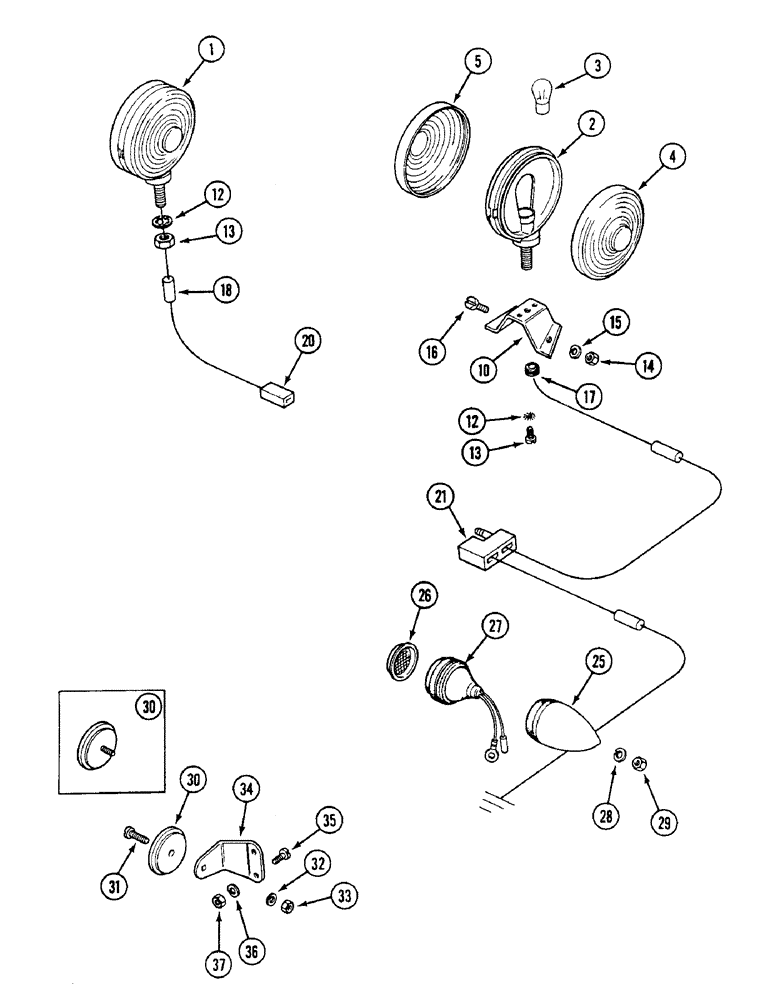

Схема запчастей Case IH 1494 - (4-096) - LAMPS, WIRING AND REFLECTORS, LOW PROFILE SPECIAL, P.I.N. 11194591 AND AFTER (04) - ELECTRICAL SYSTEMS
14
5
37
35
32
3
16
13
25
21
2
4
1
33
31
29
20
28
36
18
26
10
12
34
27
12
13
15
17
30
30

Артикул

Название

Примечание

Количество

1

K309425

LAMP

ASSEMBLY flasher, left hand and right hand rear fender, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

3

K310118

BULB

lamp, double contact, single filament

1шт.

4

3112683R1

LENS

front, amber

1шт.

5

3112682R1

LENS

rear, amber

1шт.

10

K309426

BRACKET

mounting, flasher lamp

2шт.

12

K626480

WASHER

lock, 1/2 inch

2шт.

13

K617033

NUT

1/2 inch UNF

2шт.

14

225-14110

NUT,#10-24

4шт.

16

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

17

248-2340

GROMMET,3/8" ID x 5/8" Groove Dia, Str Cut

Wire 3/8" ID x 5/8" Groove Dia, Str Cut

4шт.

18

A30366

CABLE

CONNECTOR wire, female

2шт.

20

K308554

HARNESS

flasher, RH

1шт.

21

K308553

HARNESS

flasher, LH and tail lamp

1шт.

25

K921235

LAMP

ASSEMBLY tail, Includes: Ref. 26 & 27

1шт.

1094369R1

BULB

amp, 12/14 volt, 6 watt

1шт.

26

K960888

LENS

lamp, red

1шт.

27

K921234

INDICATOR LIGHT

LAMP ASSEMBLY, right-hand front

1шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-114

NUT,1/4"-28, G5

Includes Ref. 32 & 33 1/4"-28, G5

2шт.

32

K626340

RING

WASHER lock, 10

1шт.

33

225-14210

NUT,#10-32

1шт.

34

K943024

BRACKET

mounting, reflector

2шт.

35

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

machine, pan head slotted, No. 10 NC x 1/2 inch

4шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

37

225-14110

NUT,#10-24

4шт.

Выбрано товаров: 26
