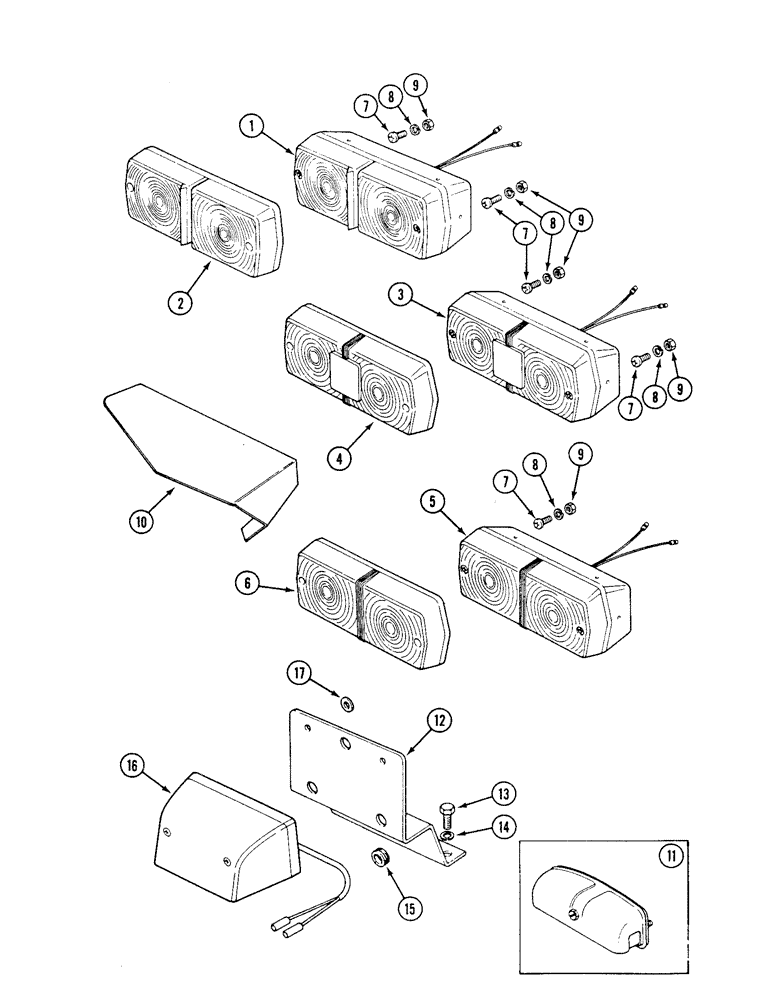

Запчасти Case IH 1494 (4-092) - SIDE AND REAR WARNING LAMPS, TRACTORS WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

K304892

LIGHT

LAMP ASSEMBLY, front, side flasher, Britax, Includes: Ref. 2 and bulbs

2шт.

1094366R1

BULB

front turn signal

1шт.

1094368R1

BULB

side lamp

1шт.

2

K261792

LENS

lamp

1шт.

3

K304888

LAMP

ASSEMBLY, stop, flasher, rear, LH, Britax, Not North America, Includes: Ref. 4

1шт.

4

K261791

LENS

lamp

1шт.

3

K304887

LAMP

ASSEMBLY, stop, flasher, rear, RH, Britax, Not North America, Includes: Ref. 4

1шт.

4

K261791

LENS

lamp

1шт.

5

K304885

LIGHT ASSY.

LAMP ASSEMBLY, stop, flasher, rear, LH, North America only, Includes: Ref. 6 and bulbs

1шт.

1094366R1

BULB

turn signal, rear

1шт.

1094367R1

BULB

tail light, stop

1шт.

6

K261790

LENS

lamp

1шт.

5

K304889

LAMP

ASSEMBLY, stop, flasher, rear, RH, North America only, Includes: Ref. 6 and bulbs

1шт.

1094366R1

BULB

turn signal, rear

1шт.

1094367R1

BULB

tail light, stop

1шт.

6

K261790

LENS

lamp

1шт.

7

K652503

SCREW

M5 x 12 mm

8шт.

8

K651846

WASHER, LOCK

WASHER lock, 5 mm

8шт.

9

K652871

NUT

M5, special

8шт.

10

K307941

LAMP

SHIELD lamp, left hand, North America only

1шт.

10

K307981

LAMP

SHIELD lamp, right hand, North America only

1шт.

11

K311863

INTERIOR LIGHT

LAMP rear number plate, with harness, Not North America

1шт.

12

K301333

BRACKET

rear lamp support, without ROPS

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

K627705

GROMMET

wire, 14 mm

1шт.

16

K311863

INTERIOR LIGHT

LAMP rear number plate, with harness, Replaces: K943308

1шт.

17

K651813

WASHER

special, plain, use with K311863

2шт.
