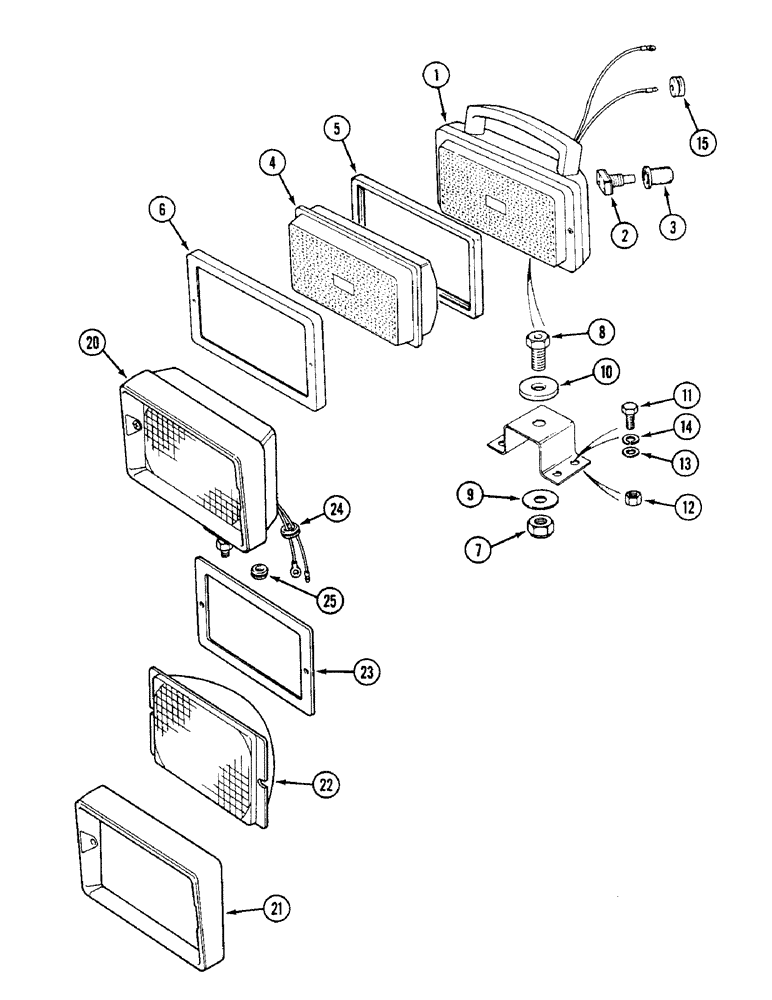

Запчасти Case IH 1494 (4-088) - REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS

1

K302866

LAMP

FLOOD LAMP ASSEMBLY, rear, with switch, Replaces: K301230, Includes: Ref. 2 - 10

1шт.

1312210C2

BULB,Halogen H3, 12V, 55W

12V - 55W, with 1 wire assembly

1шт.

2

K260688

SWITCH ASSY

SWITCH lamp

1шт.

3

K260689

SWITCH

COVER switch

1шт.

4

K260687

LENS

AND REFLECTOR lamp

1шт.

5

K260693

LENS

GASKET lens

1шт.

6

K260694

LAMP

RIM lens

1шт.

7

K260696

NUT

self locking, M12

1шт.

8

K260695

BOLT

M12, special

1шт.

9

K260691

WASHER

12 mm

1шт.

10

K260690

WASHER

nylon, 12 mm

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 16 mm

4шт.

12

825-1408

NUT,M8, Cl 8

4шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

15

K627773

GROMMET

rubber, fender

1шт.

20

K310586

LAMP

FLOOD LAMP ASSEMBLY, rear, without switch, Includes: Ref. 21 - 23

1шт.

21

K262221

BEZEL

RIM lens

1шт.

22

K262222

LENS

lamp

1шт.

23

K262223

SEAL

GASKET sealing, lens

1шт.

24

K627705

GROMMET

rubber, fender 14 mm

1шт.

25

K627743

PLUG

GROMMET, 9 mm left-hand fender

1шт.
