Запчасти Case IH 1494 (4-086) - HEADLAMPS (04) - ELECTRICAL SYSTEMS

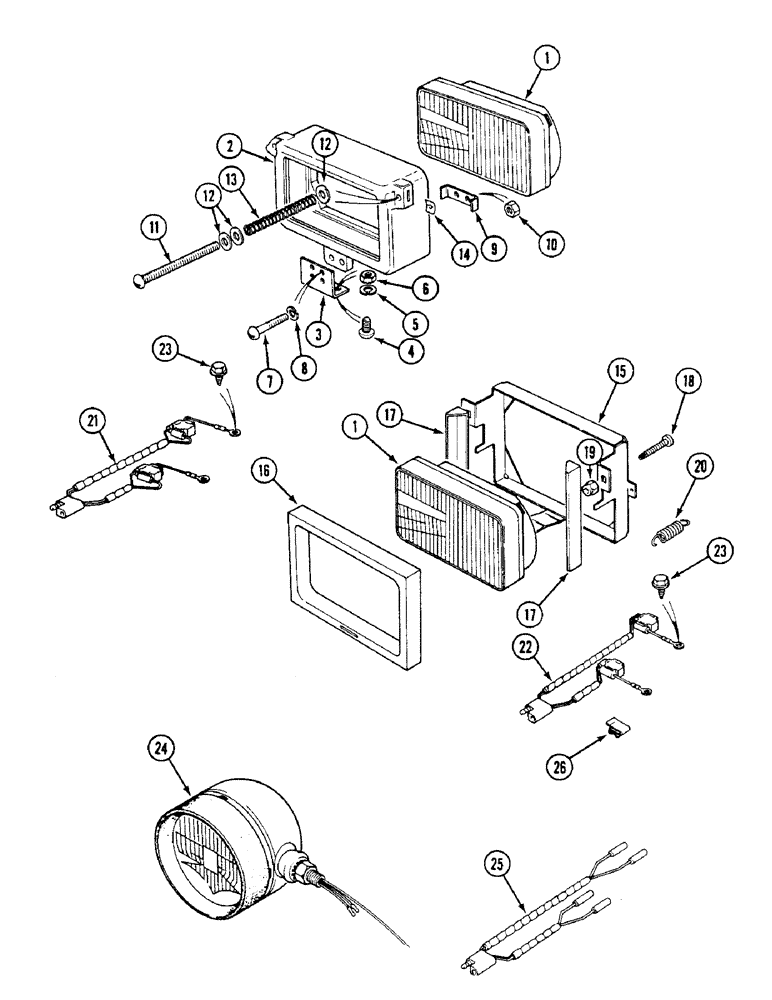

Схема запчастей Case IH 1494 - (4-086) - HEADLAMPS (04) - ELECTRICAL SYSTEMS
1
23
19
15
10
12
17
13
8
26
23
11
20
17
25
21
24
16
22
3
1
5
4
12
7
6
18
14
2
9

Артикул

Название

Примечание

Количество

1

K300209

LAMP

HEADLAMP, white bulb, left hand angled beam, Includes: Ref. 1A

2шт.

1a

K300218

BULB

white

2шт.

1

K300208

HEADLIGHT

HEADLAMP, white bulb, right hand angled beam, Includes: Ref. 1A

2шт.

1a

K300218

BULB

white

2шт.

1

K300725

BULB

HEADLAMP, yellow bulb, right hand angled beam, Includes: Ref. 1A

2шт.

1a

K300724

BULB

yellow

2шт.

1

A139458

LAMP

HEADLAMP sealed beam, vertical low beam, Includes: Ref. 1A

2шт.

1a

K300724

BULB

yellow

2шт.

2

K262748

BRACKET

HOUSING lamp

2шт.

For inboard headlamps mounted below waist rail.

1шт.

3

K300762

BRACKET

support

2шт.

For inboard headlamps mounted below waist rail.

1шт.

4

K652504

SCREW

M5 x 16 mm

4шт.

For inboard headlamps mounted below waist rail.

1шт.

5

K651846

WASHER, LOCK

WASHER lock, 5 mm

4шт.

For inboard headlamps mounted below waist rail.

1шт.

6

825-1405

NUT,M5, Cl 8

4шт.

For inboard headlamps mounted below waist rail.

1шт.

7

30464R1

SCREW,Cross Pan Hd, M5 x 25

machine, 5 mm x 25 mm long

4шт.

For inboard headlamps mounted below waist rail.

1шт.

8

K651846

WASHER, LOCK

WASHER lock, 5 mm

4шт.

For inboard headlamps mounted below waist rail.

1шт.

9

K300763

CLAMP

housing

2шт.

For inboard headlamps mounted below waist rail.

1шт.

10

825-1405

NUT,M5, Cl 8

4шт.

For inboard headlamps mounted below waist rail.

1шт.

11

K605643

SCREW,Pan, #10 - 24 x 2 1/2"

adjusting, no. 10 UNC x 2-1/2 inch

4шт.

For inboard headlamps mounted below waist rail.

1шт.

12

K651776

WASHER

5 mm

12шт.

For inboard headlamps mounted below waist rail.

1шт.

13

K625093

SPRING

pressure

4шт.

For inboard headlamps mounted below waist rail.

1шт.

14

K607478

NUT

No. 10 UNC

4шт.

For inboard headlamps mounted below waist rail.

1шт.

15

K304824

SUPPORT

HOUSING lamp

2шт.

For inboard headlamps mounted in waist rail.

1шт.

16

K304831

RUBBER INSULATOR

SHROUD rubber

2шт.

For inboard headlamps mounted in waist rail.

1шт.

17

K304832

MOLDING

MOULDING rubber

4шт.

For inboard headlamps mounted in waist rail.

1шт.

18

K603641

SCREW

adjusting, headlamp

4шт.

For inboard headlamps mounted in waist rail.

1шт.

19

K617503

NUT

nylon

4шт.

For inboard headlamps mounted in waist rail.

1шт.

20

K658240

SPRING

retaining

4шт.

For inboard headlamps mounted in waist rail.

1шт.

21

K304927

HARNESS

electrical, inboard headlamps

1шт.

22

K304928

HARNESS

headlamps, sealed beam, inboard headlamps

1шт.

23

K624532

SCREW

self tapping, No. 14 x 1/2 inch, inboard headlamps

2шт.

24

K302167

HEADLIGHT

HEADLAMP white bulb, left hand, outboard, Not North America

1шт.

24

K302168

HEADLIGHT

HEADLAMP white bulb, right hand, outboard, Not North America

1шт.

25

K300750

HARNESS

headlamps, outboard

1шт.

26

K621744

CLIP

harness to grille frame

3шт.

Выбрано товаров: 53
