(4-084) - ALTERNATOR ASSEMBLY, ENGINES P.I.N. 11431342 AND AFTER, NORTH AMERICA ONLY

Запчасти Case IH 1494 (4-084) - ALTERNATOR ASSEMBLY, ENGINES P.I.N. 11431342 AND AFTER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS

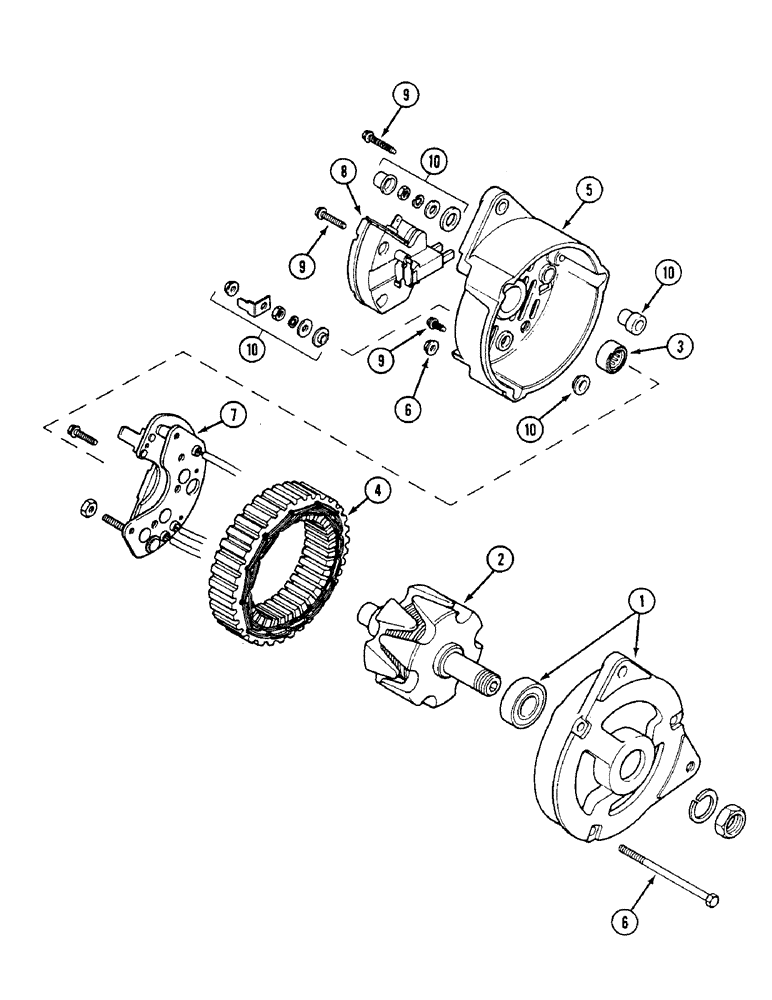

Схема запчастей Case IH 1494 - (4-084) - ALTERNATOR ASSEMBLY, ENGINES P.I.N. 11431342 AND AFTER, NORTH AMERICA ONLY (04) - ELECTRICAL SYSTEMS
9
9
10
5
1
6
7
10
6
10
4
9
8
10
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

92281C1

ALTERNATOR

ALTERNATOR ASSEMBLY, 12 volt, 65 amperes, Lucas 24158, Includes: Ref. 1 - 8

1шт.

92281C1: Service bulletin NTRSB03187 tells of the different alternators used on the '94. CAM/CNS 4/26/99

1шт.

87800219R

REMAN-ALTERNATOR

Reman for New P/N 92281C1

1шт.

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

1

K262268

BRACKET

FRAME ASSEMBLY drive end

1шт.

2

K262270

ROTOR

ROTOR ASSEMBLY

1шт.

3

K262272

ROLLER BEARING

BEARING slip ring end

1шт.

4

K262275

STATOR

STATOR

1шт.

5

K262271

SUPPORT

FRAME slip ring end

1шт.

6

K262274

PACKAGE

BOLT KIT, through, with nuts and washers

1шт.

7

K262267

RECTIFIER

RECTIFIER SCREWS AND NUTS

1шт.

8

K262266

REGULATOR

REGULATOR AND BRUSH HOLDER

1шт.

9

K262477

KIT

SUNDRY KIT, Includes: nut, washer, and spacers

1шт.

NSS

NOT SOLD SEPARAT

NUT shaft

1шт.

NSS

NOT SOLD SEPARAT

WASHER lock, shaft nut

1шт.

NSS

NOT SOLD SEPARAT

SPACERS, various

1шт.

10

K262478

KIT

TERMINAL KIT, Includes: washers and nuts

1шт.
