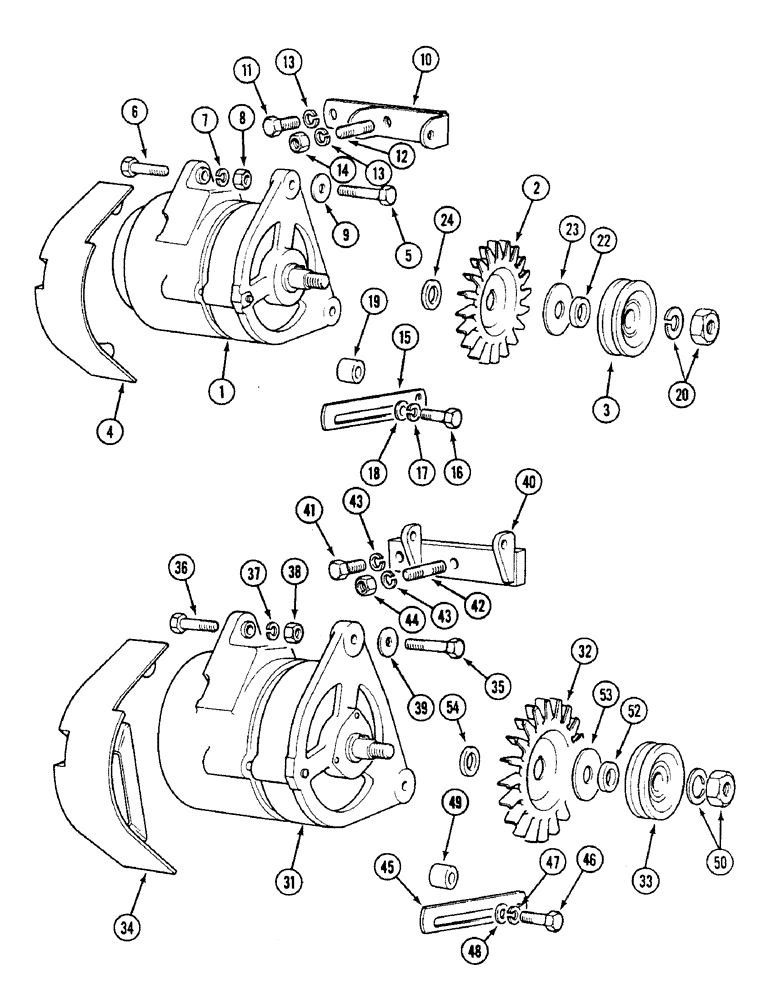

Запчасти Case IH 1494 (4-080) - ALTERNATOR FITTINGS, ENGINES P.I.N. 11430950 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR, See Figure 4-082

1шт.

2

K311704

FAN

alternator

1шт.

3

K311701

PULLEY

alternator, 70 mm diameter

1шт.

4

K302427

GUARD

heavy duty

1шт.

5

K650646

BOLT

M8 x 40 mm

1шт.

6

K650645

BOLT

M8 x 35 mm

1шт.

7

K19481

SPRING WASHER

WASHER lock, 5/16 inch

2шт.

8

825-1408

NUT,M8, Cl 8

2шт.

9

K626916

WASHER

special, 5/16 inch, 8 mm

1шт.

10

K947375

SUPPORT

BRACKET support

1шт.

11

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

12

K608236

STUD

3/8 UNC x 1-1/2 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

280136

NUT,3/8"-16, G8

1шт.

15

K950495

ADJUSTER

STRAP adjuster

1шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm

1шт.

17

K19481

SPRING WASHER

WASHER lock, 5/16 inch

1шт.

18

K626916

WASHER

special, 5/16 inch, 8 mm

1шт.

19

K627028

BUSHING

SPACER strap

1шт.

20

K262477

KIT

SUNDRY KIT

1шт.

22

K311702

SPACER

pulley

1шт.

23

K311703

WASHER

special, fan, support

1шт.

24

K311705

SPACER

fan

1шт.

31

REF

INSTRUCTION

ALTERNATOR, See Figure 4-084, engines P.I.N. 11431342 and after

1шт.

32

K311704

FAN

alternator, engines P.I.N. 11431342 and after

1шт.

33

K311707

PULLEY

heavy duty, 80 mm diameter, engines P.I.N. 11431342 and after

1шт.

34

K302427

GUARD

heavy duty, engines P.I.N. 11431342 and after

1шт.

35

K650646

BOLT

M8 x 40 mm, engines P.I.N. 11431342 and after

1шт.

36

K650645

BOLT

M8 x 35 mm, engines P.I.N. 11431342 and after

2шт.

37

K19481

SPRING WASHER

WASHER lock, 5/16 inch, engines P.I.N. 11431342 and after

2шт.

38

825-1408

NUT,M8, Cl 8

Engines P.I.N. 11431342 and after M8, Cl 8

1шт.

39

K626916

WASHER

special, 5/16 inch, 8 mm, engines P.I.N. 11431342 and after

1шт.

40

K204286

MOUNTING PARTS

BRACKET support, engines P.I.N. 11431342 and after

1шт.

41

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Engines P.I.N. 11431342 and after Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

42

K608236

STUD

3/8 UNC x 1-1/2 inch, engines P.I.N. 11431342 and after

1шт.

43

492-11038

LOCK WASHER,3/8"

engines P.I.N. 11431342 and after 3/8"

2шт.

44

280136

NUT,3/8"-16, G8

Engines P.I.N. 11431342 and after 3/8"-16, G8

1шт.

45

K951676

STRAP

adjuster, engines P.I.N. 11431342 and after

1шт.

46

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex, full threads, 8 - 1.25 x 25 mm, engines P.I.N. 11431342 and after

1шт.

47

K19481

SPRING WASHER

WASHER lock, 5/16 inch, engines P.I.N. 11431342 and after

1шт.

48

K626916

WASHER

special, 5/16 inch, 8 mm, engines P.I.N. 11431342 and after

1шт.

49

K627336

BUSHING

SPACER strap, engines P.I.N. 11431342 and after

1шт.

50

K262477

KIT

SUNDRY KIT, engines P.I.N. 11431342 and after

1шт.

52

K311702

SPACER

pulley, engines P.I.N. 11431342 and after

1шт.

53

K311703

WASHER

special, fan, support, engines P.I.N. 11431342 and after

1шт.

54

K311705

SPACER

fan, engines P.I.N. 11431342 and after

1шт.
