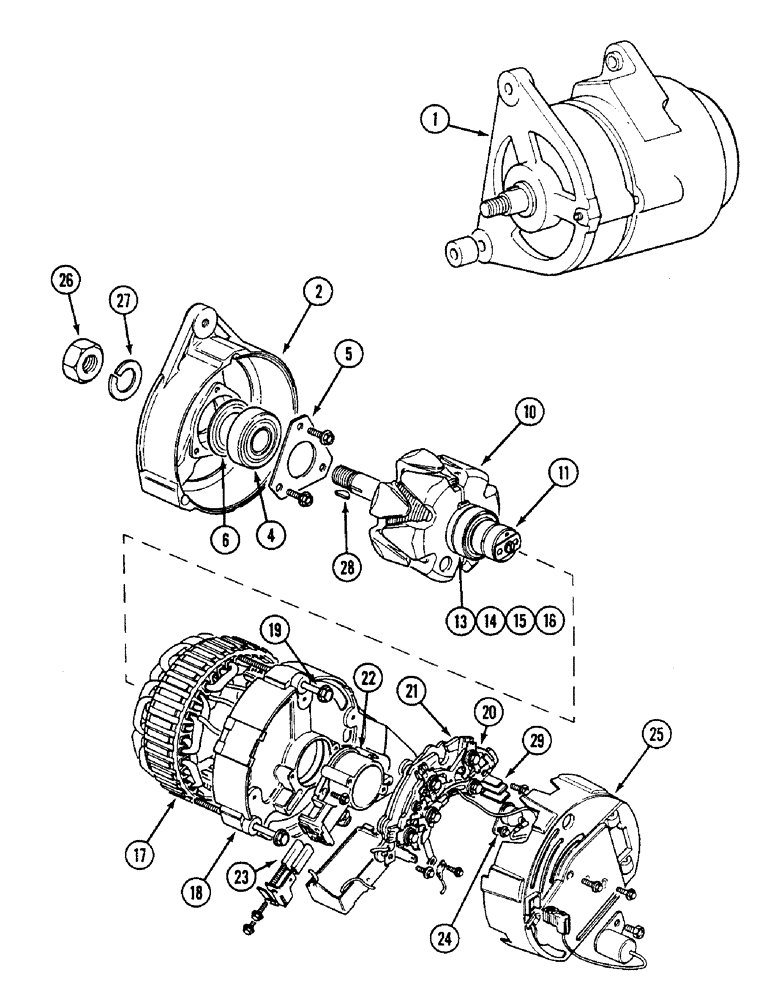

Запчасти Case IH 1494 (4-078) - K307720 ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11431342 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, Lucas A127-65, order components, Includes: Ref. 2 - 25 and hardware kit

1шт.

2

A47996

BRACKET

drive end, Includes: Ref. 4 - 9

1шт.

84108C1

PACKAGE

BEARING KIT drive end

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING pressure

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL felt

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER felt seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING snap, bearing kit retaining

1шт.

10

A47998

ROTOR

ASSEMBLY alternator, Includes: Ref. 11 - 16

1шт.

A47999

KIT

SLIP RING AND BEARING KIT rotor

1шт.

11

A48000

RING

SLIP RING rotor

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL dust, black

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL dust, white

1шт.

16

NSS

NOT SOLD SEPARAT

RING pressure

1шт.

17

A48002

STATOR

alternator

1шт.

18

A48001

BRACKET

slip ring end

1шт.

19

K261954

BOLT

through

3шт.

20

A47995

RECTIFIER

alternator

1шт.

21

A47994

REGULATOR

ASSEMBLY alternator

1шт.

22

A48003

HOLDER

ASSEMBLY brush, Includes: Ref. 23

1шт.

23

A48004

BRUSH, COMMUTATOR

BRUSH SET

1шт.

24

A48009

DIODE

surge protection

1шт.

25

A47993

COVER

rear

1шт.

A48007

SCREW

HARDWARE KIT, Includes: retaining screws, Lucas 60600771

1шт.

A48008

COLLAR

KIT, spacer, Includes: assorted spacers

1шт.

A48006

KIT

SUNDRY KIT alternator, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

NUT shaft

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER lock, shaft nut

1шт.

28

NSS

NOT SOLD SEPARAT

KEY Woodruff, Serial Range: shaft-pulley

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.
