Запчасти Case IH 1494 (4-076) - ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11430950 (04) - ELECTRICAL SYSTEMS

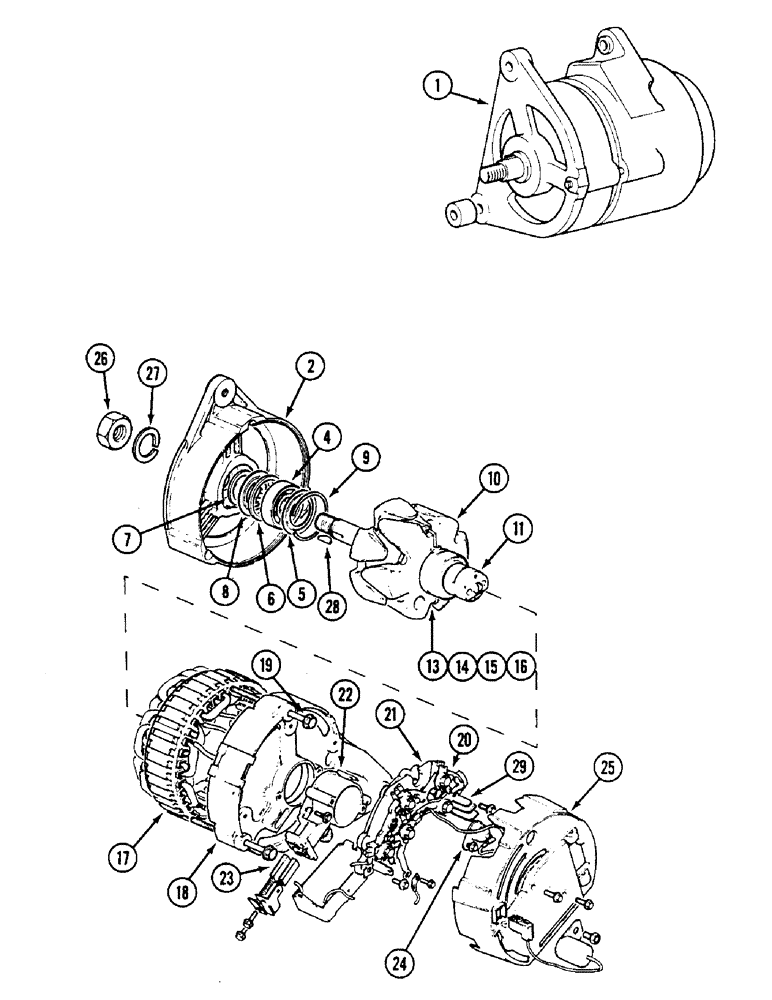

Схема запчастей Case IH 1494 - (4-076) - ALTERNATOR ASSEMBLY, ENGINES PRIOR TO P.I.N. 11430950 (04) - ELECTRICAL SYSTEMS
24
27
29
6
9
18
2
22
15
16
4
28
8
7
19
11
25
10
21
20
1
14
5
23
26
13
17

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, 12 volt, 45 amperes, order components, Includes: Ref. 2 - 25 and hardware kit

1шт.

2

3116089R91

BRACKET

FRAME ASSEMBLY drive end, Includes: Ref. 4 - 9

1шт.

K963778

BEARING ASSY

BEARING KIT drive end

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE bearing retaining

1шт.

6

NSS

NOT SOLD SEPARAT

RING pressure

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL felt

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER felt seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING snap, bearing kit retaining

1шт.

10

245540C1

ROTOR ASSY.

ROTOR ASSEMBLY, Includes: Ref. 11 - 16

1шт.

A47999

KIT

SLIP RING AND BEARING KIT rotor

1шт.

11

A48000

RING

SLIP RING rotor

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL dust, black

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL dust, white

1шт.

16

NSS

NOT SOLD SEPARAT

RING pressure

1шт.

17

K261941

STATOR

1шт.

18

K261940

BRACKET

FRAME slip ring end

1шт.

19

K261944

BOLT

through

3шт.

20

245537C1

RECTIFIER

ASSEMBLY

1шт.

21

K261934

REGULATOR

ASSEMBLY

1шт.

22

A48003

HOLDER

ASSEMBLY brush, Includes: Ref. 23

1шт.

23

A48004

BRUSH, COMMUTATOR

BRUSH SET

1шт.

24

A48009

DIODE

isolation, surge protection

1шт.

25

K261933

COVER

drive end

1шт.

A48007

SCREW

HARDWARE KIT, Includes: retaining screws, Lucas 60600771

1шт.

245550C1

PACKAGE

SPACER KIT, Includes: assorted spacers

1шт.

A48006

KIT

SUNDRY KIT alternator, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

NUT shaft

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER lock, shaft nut

1шт.

28

NSS

NOT SOLD SEPARAT

KEY Woodruff, Serial Range: shaft-pulley

1шт.

29

NSS

NOT SOLD SEPARAT

CONNECTOR

1шт.

Выбрано товаров: 32
