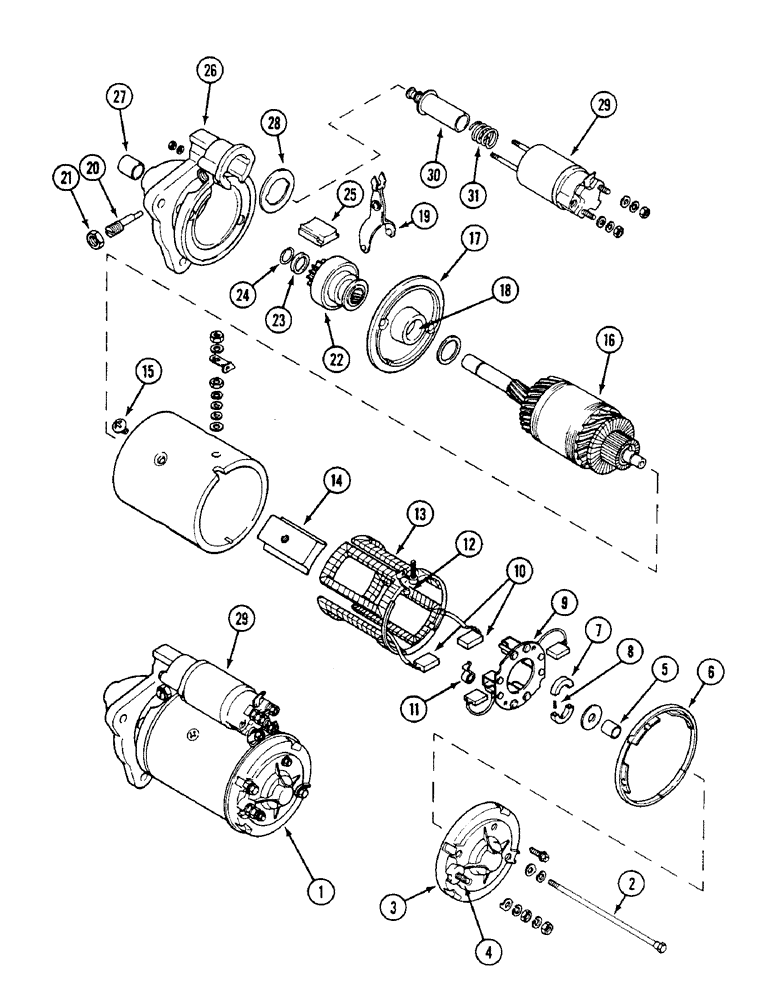

Запчасти Case IH 1494 (4-072) - STARTER ASSEMBLY, COLD CLIMATES ONLY, P.I.N. 11192854 AND AFTER (04) - ELECTRICAL SYSTEMS

1

140892A1

KIT

STARTER ASSEMBLY engine, Lucas 27528, Includes: Ref. 2 - 31

1шт.

2

K964217

BOLT

through

2шт.

3206511R91

BRACKET

KIT commutator end frame, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING, order K963931 kit

1шт.

K262023

SEAL KIT

sealing rubber, consists of: items 6, 12, 24 and 28

1шт.

6

NSS

NOT SOLD SEPARAT

RING sealing, order K262023

1шт.

3206531R91

BRAKE PACKAGE

KIT brakes, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

SHOE brake

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING brake

2шт.

9

3113026R91

PLATE ASSY.

PLATE ASSEMBLY brush mounting

1шт.

10

K964218

KIT

brush

1шт.

11

3206523R91

SPRING KIT

KIT brush springs

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET field lead

1шт.

84058C1

KIT

field coils, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

COIL field

4шт.

14

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

15

NSS

NOT SOLD SEPARAT

SCREW pole

4шт.

16

K262025

ARMATURE

ASSEMBLY

1шт.

K964211

FRAME

intermediate, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

FRAME

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING, order K963931 kit

1шт.

K262027

KIT

engaging lever, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

LEVER engaging

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pivot

1шт.

21

NSS

NOT SOLD SEPARAT

NUT pivot bolt

1шт.

22

K262028

DRIVE

ASSEMBLY, Includes: Ref. 23 & 24

1шт.

A48239

KIT

retainer

1шт.

23

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

24

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

25

NSS

NOT SOLD SEPARAT

GROMMET drive end frame

1шт.

K964219

BRUSH, COMMUTATOR

FRAME ASSEMBLY drive end, Includes: Ref. 26 & 27

1шт.

26

K262026

SOLENOID

FRAME

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING, order K963931 kit

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET, solenoid to frame, order K262073

1шт.

29

K963825

SOLENOID

Includes: Ref. 30 & 31

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER solenoid

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING solenoid plunger

1шт.

3206529R91

KIT

hardware, Includes: all items illustrated but not listed or identified

1шт.

3113029R91

BUSHING

KIT bushing, Includes: Ref. 5, 18 and 27

1шт.
