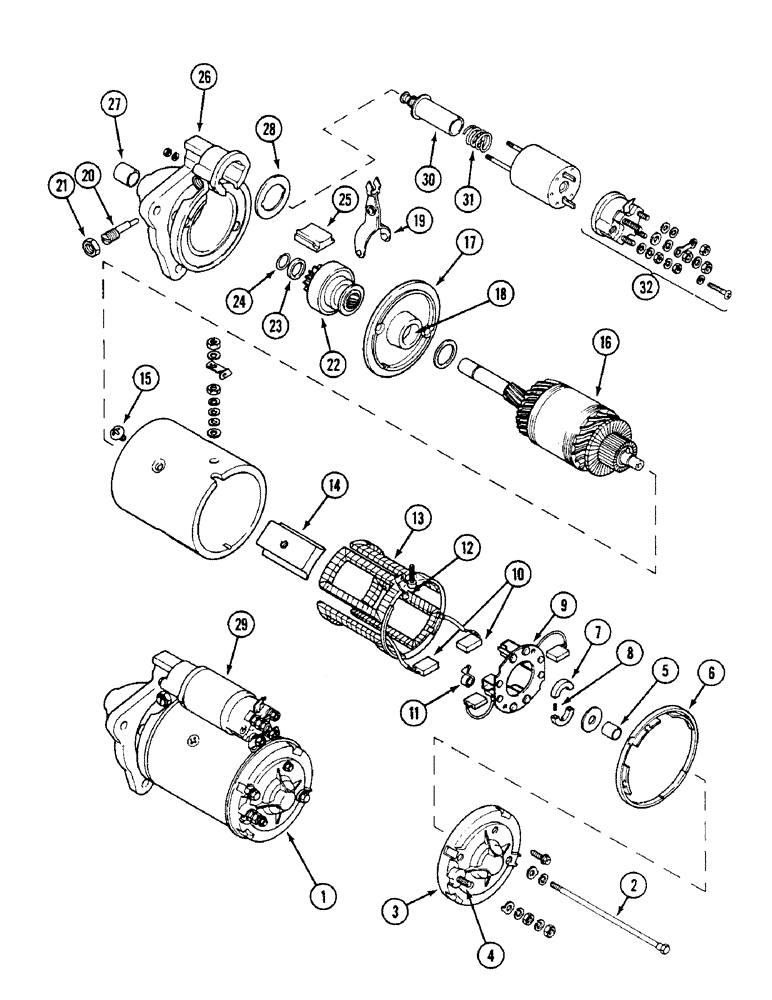

Запчасти Case IH 1494 (4-070) - STARTER ASSEMBLY - COLD CLIMATES ONLY, PRIOR TO P.I.N. 11192854 (04) - ELECTRICAL SYSTEMS

1

K262746

STARTING MOTOR

STARTER ASSEMBLY, Includes: Ref. 2 - 32

1шт.

2

K964217

BOLT

through

2шт.

3206511R91

BRACKET

KIT commutator end frame, Includes: Ref. 3 - 5 and kit

1шт.

3

NSS

NOT SOLD SEPARAT

FRAME

1шт.

4

NSS

NOT SOLD SEPARAT

TERMINAL

1шт.

5

NSS

NOT SOLD SEPARAT

BUSHING, order 3113029R91

1шт.

31183709R91

KIT sealing rubber, consists of: 6, 12, 24 and 28

1шт.

6

NSS

NOT SOLD SEPARAT

RING sealing, order 3118370R91

1шт.

3206531R91

BRAKE PACKAGE

KIT brakes, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

SHOE brake

2шт.

8

NSS

NOT SOLD SEPARAT

SPRING brake

2шт.

9

3113026R91

PLATE ASSY.

PLATE ASSEMBLY brush mounting

1шт.

10

K964218

KIT

brush

1шт.

11

3206523R91

SPRING KIT

KIT brush springs

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET, field lead, order 3118370R91

1шт.

K964210

KIT

field coil, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

COIL field

4шт.

14

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

15

NSS

NOT SOLD SEPARAT

SCREW pole

4шт.

16

K964221

ARMATURE

ASSEMBLY starter

1шт.

17

K964211

FRAME

intermediate, Includes: Ref. 18

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING, order 3113029R91

1шт.

K964213

LINK

KIT solenoid link, Includes: Ref. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

LINK solenoid

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT pivot

1шт.

21

NSS

NOT SOLD SEPARAT

NUT pivot bolt

1шт.

K964214

DRIVE

ASSEMBLY starter, Includes: Ref. 22 - 24

1шт.

22

NSS

NOT SOLD SEPARAT

DRIVE

1шт.

23

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

24

NSS

NOT SOLD SEPARAT

RING retaining, order 3118370R91

1шт.

25

NSS

NOT SOLD SEPARAT

GROMMET drive end frame

1шт.

K964219

BRUSH, COMMUTATOR

FRAME ASSEMBLY drive end, Includes: Ref. 26 - 27

1шт.

26

NSS

NOT SOLD SEPARAT

FRAME

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING, order 3113029R91

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET, solenoid to frame, order 3118370R91

1шт.

29

3206518R2

SOLENOID

Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER solenoid

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING solenoid plunger

1шт.

32

NSS

NOT SOLD SEPARAT

KIT solenoid end cover

1шт.

3206529R91

KIT

sundry

1шт.

3113029R91

BUSHING

KIT bushes, consists of: 5, 18 and 27

1шт.
