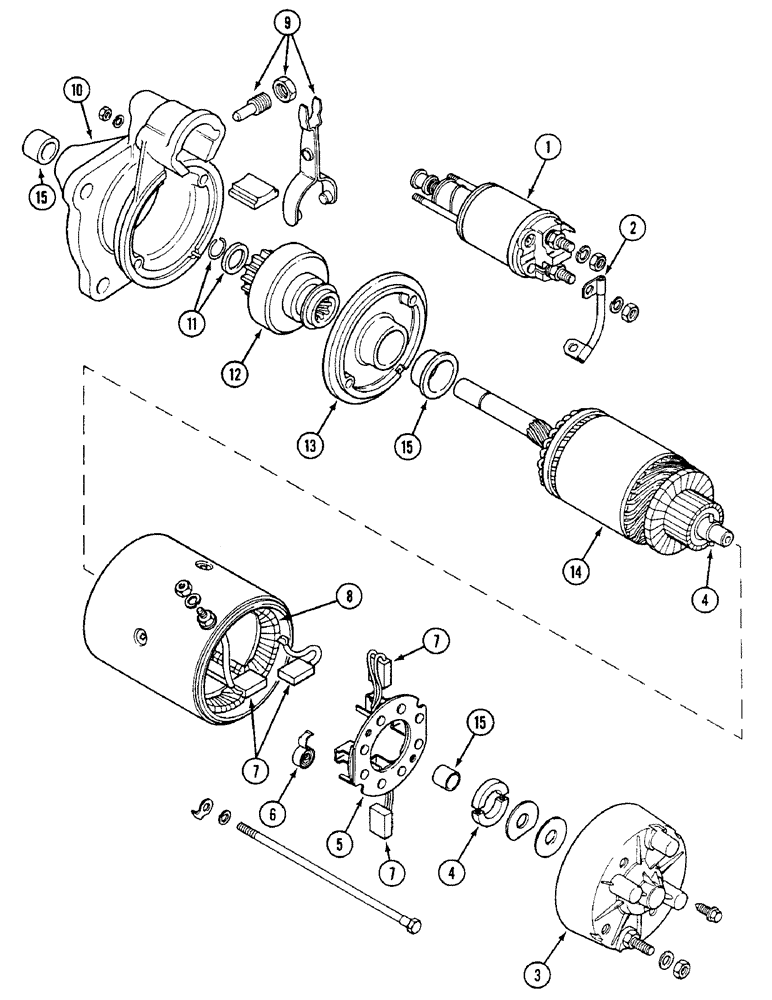

Запчасти Case IH 1494 (4-068) - STARTER, LUCAS 2M113 (04) - ELECTRICAL SYSTEMS

K262746

STARTING MOTOR

STARTER, 12 volt, Lucas 27413A

1шт.

87297386

REMAN-STARTER

Remanufactured STARTER - For N.A. Only

1шт.

87297387

CORE-STARTER

Return number - For N.A. only

1шт.

1

K963825

SOLENOID

SOLENOID

1шт.

2

A48241

LINK

LINK solenoid

1шт.

3

A48236

BRACKET

BRACKET ASSEMBLY commutator end

1шт.

4

3206531R91

BRAKE PACKAGE

KIT brakes, Includes: shoes, springs, and pin

1шт.

NSS

NOT SOLD SEPARAT

SHOE brake

2шт.

NSS

NOT SOLD SEPARAT

SPRING brake

2шт.

NSS

NOT SOLD SEPARAT

PIN brake

1шт.

5

A48237

PLATE

PLATE ASSEMBLY brush mounting, Includes: Ref. 6

1шт.

6

3206523R91

SPRING KIT

KIT brush springs, set of 4

1шт.

7

705833R91

BRUSH, COMMUTATOR

BRUSH KIT brush, set of 4

1шт.

8

A48238

COIL

FIELD COIL ASSEMBLY

1шт.

9

H662718

KIT

KIT solenoid, Includes: link, pin, and nut

1шт.

NSS

NOT SOLD SEPARAT

LINK solenoid

1шт.

NSS

NOT SOLD SEPARAT

PIN pivot

1шт.

NSS

NOT SOLD SEPARAT

NUT lock, pivot pin

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY drive end

1шт.

11

A48239

KIT

KIT retainer, Includes: ring and collar

1шт.

NSS

NOT SOLD SEPARAT

RING jump

1шт.

NSS

NOT SOLD SEPARAT

COLLAR thrust

1шт.

12

K964242

DRIVE

DRIVE ASSEMBLY starter

1шт.

13

A48242

BRACKET

BRACKET ASSEMBLY intermediate

1шт.

14

3129384R1

ARMATURE

ARMATURE ASSEMBLY

1шт.

15

3113029R91

BUSHING

KIT bushes, set of 3, Includes: bushings

1шт.

NSS

NOT SOLD SEPARAT

BUSHING drive end

1шт.

NSS

NOT SOLD SEPARAT

BUSHING intermediate

1шт.

NSS

NOT SOLD SEPARAT

BUSHING commutator

1шт.

A48243

KIT

KIT, hardware, Includes: all items illustrated but not listed or identified

1шт.
