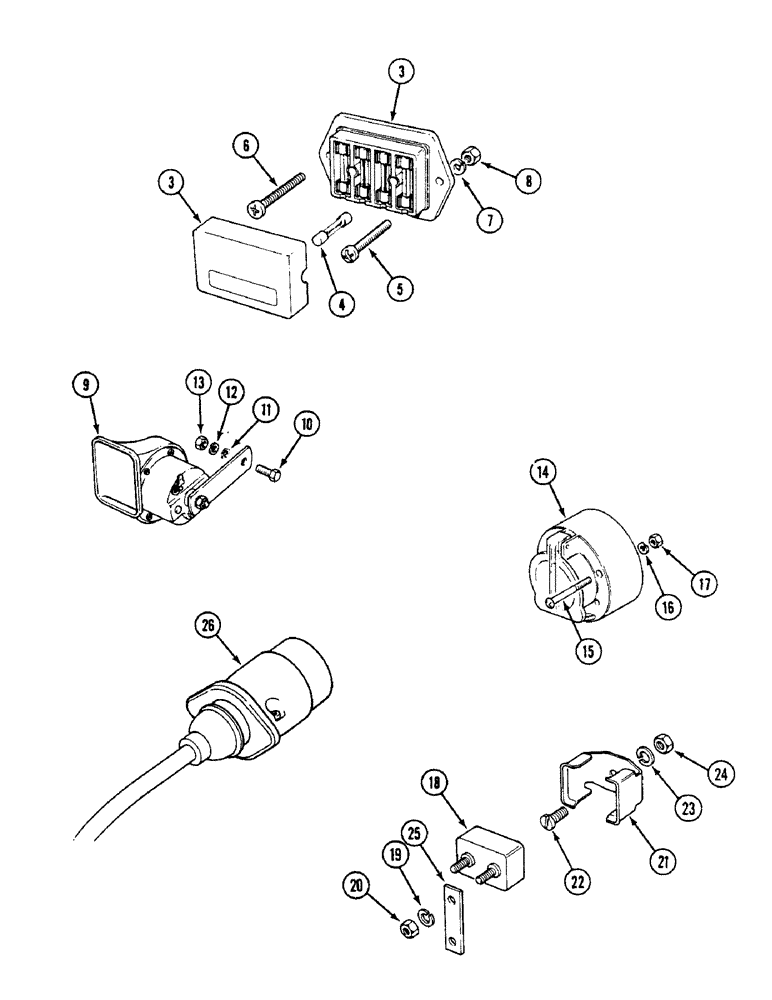

Запчасти Case IH 1494 (4-064) - FUSE BOX, HORN AND TRAILER SOCKET (04) - ELECTRICAL SYSTEMS

NSS

NOT SOLD SEPARAT

FUSE BOX electrical, Includes: Ref. 3 & 4

1шт.

3

K300625

BOX

1шт.

4

K947431

FUSE

35 ampere

1шт.

4

K904459

FUSE

25 ampere

1шт.

4

9426333

FUSE,15 Amp, Type 3AG

15 amperes

1шт.

4

3118918R1

FUSE

10 amperes

1шт.

5

K614946

SCREW,Pan, #10 - 32 x 3/4"

No. 10 UNF x 3/4 inch, without cab

2шт.

6

K615408

SCREW,Pan, #10 - 32 x 1"

No. 10 UNF x 1 inch, with cab

2шт.

7

K626340

RING

WASHER lock, 10

2шт.

8

225-14210

NUT,#10-32

2шт.

6

K652503

SCREW

M5 x 12 mm, with cab

2шт.

7

K651846

WASHER, LOCK

WASHER lock, 5 mm

2шт.

8

825-1405

NUT,M5, Cl 8

2шт.

9

K311359

HORN

warning sound

1шт.

10

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

1шт.

11

K11524

LOCK WASHER

lock, 1/4 inch, external Shakeproof

1шт.

12

K626341

SPRING WASHER

WASHER lock, 1/4 inch

1шт.

13

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

1шт.

14

REF

INSTRUCTION

SOCKET trailer, Includes: Ref. 15 - 17

1шт.

15

K657695

SCREW

M5 x 30 mm

3шт.

16

K651846

WASHER, LOCK

WASHER lock, 5 mm

3шт.

17

825-1405

NUT,M5, Cl 8

3шт.

18

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER, 30 ampere

2шт.

19

K626340

RING

WASHER lock, 10

1шт.

20

225-14210

NUT,#10-32

1шт.

21

K304457

CLIP

circuit breaker mounting

2шт.

22

K652503

SCREW

M5 x 12 mm

2шт.

23

K651846

WASHER, LOCK

WASHER lock, 5 mm

2шт.

24

825-1405

NUT,M5, Cl 8

2шт.

25

K307473

PLATE

circuit breaker

1шт.

26

3118929R1

SOCKET/RECEPTACLE

RECEPTACLE seven terminal, Hella 12/7Bs

1шт.
