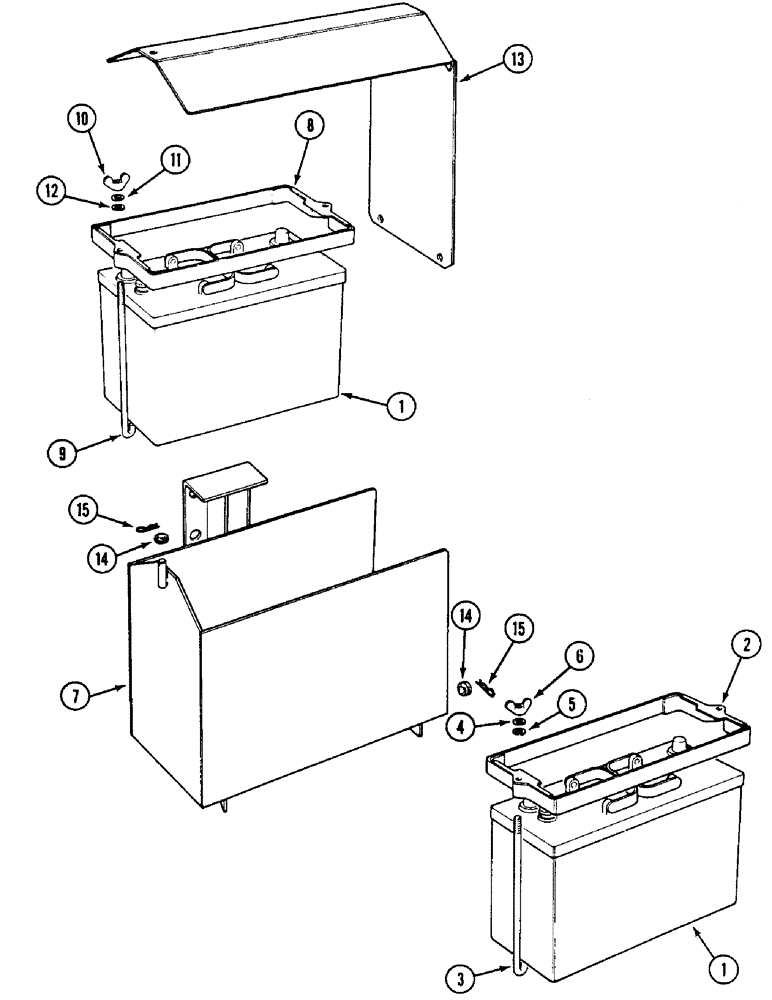

Запчасти Case IH 1494 (4-062) - BATTERY AND SUPPORT BRACKET (04) - ELECTRICAL SYSTEMS

1

K330011

DRY BATTERY

standard duty, Replaces: K302825

1шт.

1

BMF31H

BATTERY

dry, 12 volt, North America only

1шт.

1

K330012

BATTERY

heavy duty, Replaces: K302829

1шт.

1

BHC30

BATTERY, DRY

BATTERY, 12 volt, heavy duty, North America only

1шт.

2

K947080

FRAME

CLAMP battery top

1шт.

3

K306318

BOLT

STUD clamp, M8 x 250 mm, standard duty

2шт.

3

K306317

BOLT

STUD clamp, M8 x 300 mm, heavy duty

2шт.

4

K626916

WASHER

special, 5/16 inch, 8 mm

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

K651745

NUT

wing, M8

2шт.

7

K307968

BATTERY BOX

BRACKET support, side-mounted battery

1шт.

8

K947080

FRAME

CLAMP battery top

1шт.

9

K306318

BOLT

STUD clamp, M8 x 250 mm, standard duty

2шт.

9

K306317

BOLT

STUD clamp, M8 x 300 mm, heavy duty

2шт.

10

K651745

NUT

wing, M8

2шт.

11

K626916

WASHER

special, 5/16 inch, 8 mm

2шт.

12

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

13

K308501

COVER

battery, side mounted, Replaces: K307972

1шт.

14

K653155

GROMMET

cover

3шт.

15

K38632

SPRING

CLIP cover retaining

3шт.
