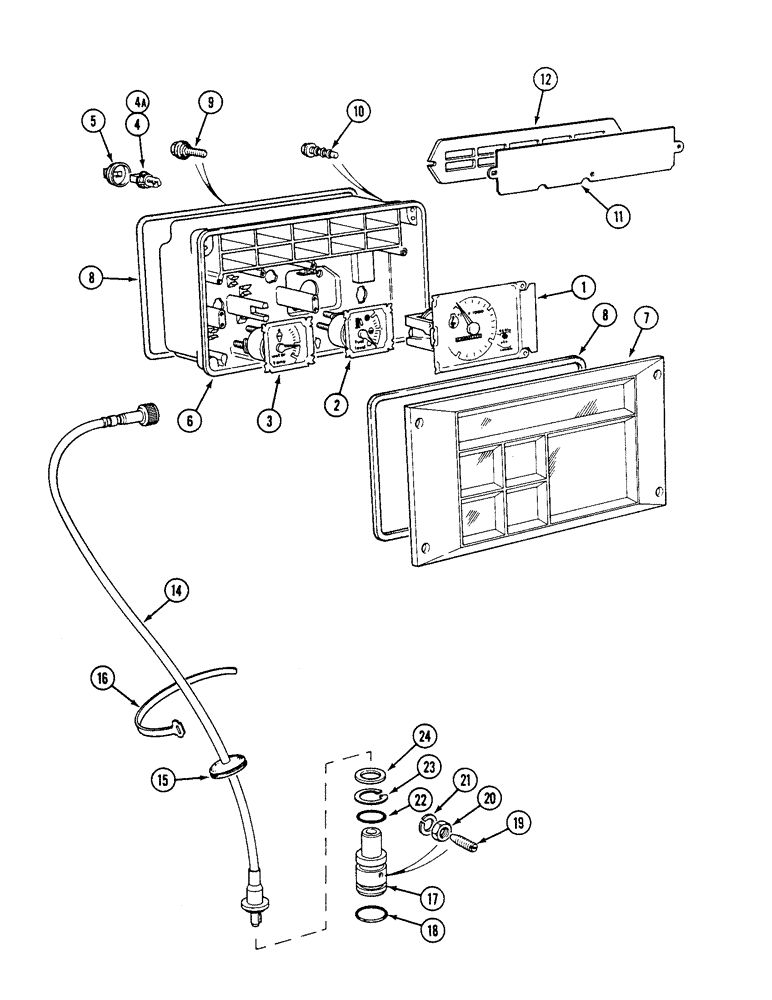

Запчасти Case IH 1494 (4-060) - INSTRUMENT CLUSTER AND TACHOMETER (04) - ELECTRICAL SYSTEMS

K309714

CLUSTER, INSTR.

CLUSTER ASSEMBLY instruments, AC-Delco, Includes: Ref. 1 - 11

1шт.

1

K965947

TACHOMETER

engine

1шт.

2

K965950

FUEL GAUGE

GAUGE fuel

1шт.

3

N13542

GAUGE

water temperature

1шт.

4

A47125

PEDESTAL

SOCKET lamp

9шт.

4a

W10478

LAMP

BULB lamp, No. 194

9шт.

5

D71344

COVER

BOOT rubber

3шт.

6

D71335

CASE ASSY.

HOUSING cluster, Includes: printed circuit

1шт.

K261634

BOARD, PRINTED CIRCU

CIRCUIT printed

1шт.

7

A45007

LENS

COVER instrument cluster

1шт.

8

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

2шт.

9

K965957

BOLT

SCREW ASSEMBLY cluster

2шт.

10

A45093

SCREW,Hex Slotted, 12.70"

special

12шт.

11

K262039

SCREEN

FILTER warning lamps

1шт.

12

D71342

GASKET,3.05mm Thk

lens

1шт.

K309714

CLUSTER, INSTR.

CLUSTER ASSEMBLY instruments, Iknield, Includes: Ref. 1 - 12

1шт.

1

K262052

TACHOMETER

engine

1шт.

2

K262055

ELECTRICAL GAUGE

GAUGE fuel, Plug-in type, 3 female plugs

1шт.

3

K262054

ELECTRICAL GAUGE

GAUGE temperature

1шт.

4

A47125

PEDESTAL

SOCKET lamp

9шт.

4a

W10478

LAMP

BULB lamp, No. 194

9шт.

6

K262051

CASE ASSY.

CASE instrument cluster

1шт.

K262056

BOARD, PRINTED CIRCU

CIRCUIT printed

1шт.

7

K262050

BEZEL

COVER case

1шт.

8

D71343

GASKET,4.45mm Thk x 249.68mm ID

instrument cluster

1шт.

9

K262060

SCREW

AND BUSHING

1шт.

10

K262063

SELF-TAP SCREW

case

12шт.

11

K262057

LAMP

FILTER warning lamps

1шт.

12

K262058

GASKET

rubber, warning lamp

1шт.

14

K957380

CABLE

ASSEMBLY, inner and outer, without cab

1шт.

14

K957379

CABLE

ASSEMBLY, inner and outer, with cab

1шт.

15

K627769

GROMMET

cable to cab, 32 mm

1шт.

16

K10518

BUCKLE

STRAP tie

1шт.

17

K210270

HYD CONNECTOR

HOUSING drive, Replaces: K206037

1шт.

18

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

19

K928254

SCREW,7/16" - 14 x 1 5/16"

locating, 7/16 inch UNC

1шт.

20

425-147

JAM NUT,Jam, 7/16"-14, G5

hex, jam, 7/16 inch NC

1шт.

21

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

22

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

23

K210271

CLIP

RING snap, Replaces: K621763

1шт.

23

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, , North America 1.00", Int, #100

1шт.

24

K206134

WASHER

rubber, 9/16 inch, 14 mm

1шт.
