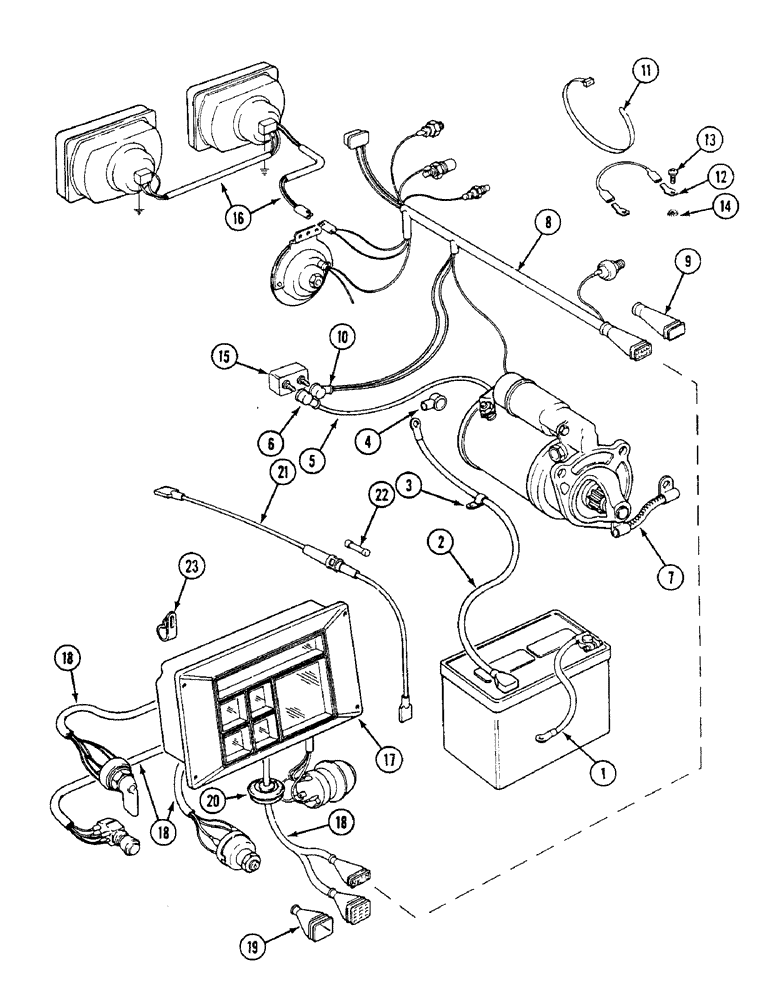

Запчасти Case IH 1494 (4-056) - CHASSIS WIRING, TRACTORS WITH CAB (04) - ELECTRICAL SYSTEMS

1

K913945

CABLE

battery to ground, side mounted

1шт.

2

K304228

CABLE

battery to starter, side mounted

1шт.

3

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

2шт.

4

K87560

CONTACT HOUSING

COVER starter terminal

1шт.

5

K304806

ELECTRICAL WIRE

LEAD, starter to circuit breaker, Includes: Ref. 6

1шт.

6

K304902

TERMINAL CONNECTOR

COVER terminals

1шт.

7

K947336

CABLE

, Serial Range: starter-ground

1шт.

8

K307275

HARNESS

engine auxiliaries, Includes: Ref. 9 & 10

1шт.

9

K951339

GUARD

COVER harness connector

1шт.

10

K304901

TERMINAL CONNECTOR

COVER terminals

2шт.

11

K621734

CABLE

CLIP cable

3шт.

12

K925268

BLADE

ground lead

2шт.

13

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

machine, pan Phillips, No. 10 NF x 1/2 inch

1шт.

14

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

15

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER, 30 ampere

2шт.

16

K304928

HARNESS

sealed beam headlamps, inboard headlamps

1шт.

16

K304927

HARNESS

electrical, inboard headlamps

1шт.

17

REF

INSTRUCTION

CLUSTER instrument, See Figure 4-060

1шт.

18

K307323

HARNESS

instrument panel, Includes: Ref. 19 & 20

1шт.

19

K951338

BELLOWS

COVER harness connector

2шт.

20

K627759

GROMMET

1шт.

21

K304217

FUSE

HOLDER, with lead, Includes: Ref. 22

1шт.

22

3113048R1

FUSE

50 ampere

1шт.

23

K621600

CLIP

panel harness

1шт.
