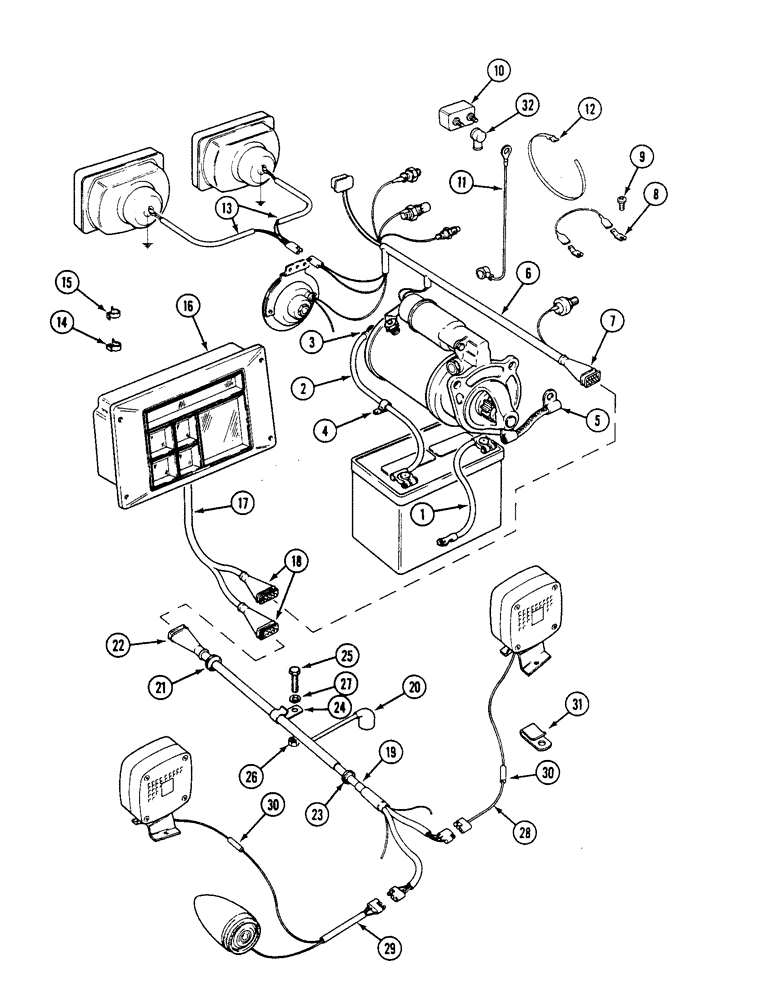

Запчасти Case IH 1494 (4-054) - ELECTRICAL WIRING, LOW PROFILE SPECIAL (04) - ELECTRICAL SYSTEMS

1

3404976R1

CABLE

battery

1шт.

2

K949996

CABLE

, Serial Range: battery-starter

1шт.

3

K87560

CONTACT HOUSING

COVER starter terminal

1шт.

4

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

1шт.

5

K947336

CABLE

, Serial Range: starter-ground

1шт.

6

K307275

HARNESS

engine auxiliaries, Includes: Ref. 7

1шт.

7

K951339

GUARD

COVER harness connector

1шт.

8

K925268

BLADE

ground lead

1шт.

9

K624532

SCREW

pan head slotted machine

1шт.

10

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER, 30 ampere

1шт.

11

K304900

ELECTRICAL WIRE

LEAD, starter to circuit breaker

1шт.

12

K621734

CABLE

CLIP cable

3шт.

13

K304928

HARNESS

sealed beam headlamps, inboard headlamps

1шт.

14

K625018

CLIP

, Serial Range: harness-waistrail

2шт.

15

K625019

CLIP

harness to panel support

2шт.

16

REF

INSTRUCTION

CLUSTER instrument, See Figure 4-060

1шт.

17

K307707

HARNESS

instrument panel, Includes: Ref. 18

1шт.

18

K951338

BELLOWS

COVER harness connector

2шт.

19

K307709

HARNESS

rear lamps, Includes: Ref. 20 - 23

1шт.

20

K943744

COVER

stop lamp switch

1шт.

21

K627729

GROMMET

harness to fender support, 7/8 inch, 22 mm

1шт.

22

K951339

GUARD

COVER harness connector

1шт.

23

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

harness

1шт.

24

K621741

CLIP

harness to frame platform

2шт.

25

K652475

SCREW

M5 x 16 mm

2шт.

26

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

2шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

28

A165855

HARNESS

flasher, RH, prior to P.I.N. 11194591

1шт.

28

K308554

HARNESS

flasher, RH, P.I.N. 11194591 and after

1шт.

29

A165854

HARNESS

flasher, LH and tail lamp, prior to P.I.N. 11194591

1шт.

29

K308553

HARNESS

flasher, LH and tail lamp, P.I.N. 11194591 and after

1шт.

30

A30366

CABLE

CONNECTOR wire, prior to P.I.N. 11194591

2шт.

30

K67916

ELEC CONNECTOR

CONNECTOR wire, P.I.N. 11194591 and after

2шт.

31

K621776

CLIP

, Serial Range: harness-fenders

2шт.

32

K304901

TERMINAL CONNECTOR

COVER terminals

1шт.
