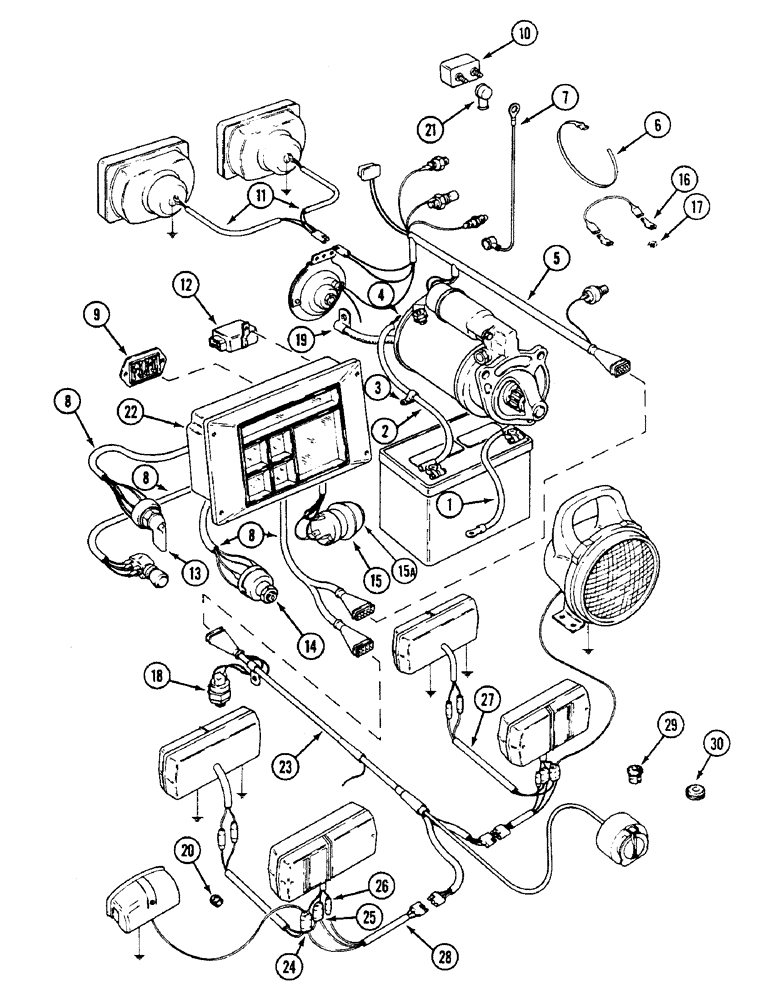

Запчасти Case IH 1494 (4-052) - WIRING, TRACTORS WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

3404976R1

CABLE

battery

1шт.

2

K949996

CABLE

, Serial Range: battery-starter

1шт.

3

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

P-type, 7/16 inch ID

2шт.

4

K87560

CONTACT HOUSING

COVER starter terminal

1шт.

5

K307275

HARNESS

engine auxiliaries

1шт.

6

K621734

CABLE

CLIP cable

3шт.

7

K304900

ELECTRICAL WIRE

LEAD, starter to circuit breaker

1шт.

8

K307707

HARNESS

instrument panel, Includes: cover

1шт.

Switch off of #8 next to #13 on diagram is 3118917R93

1шт.

K951338

BELLOWS

COVER harness connector, not illustrated

1шт.

9

REF

INSTRUCTION

FUSE BOX, See Figure 4-064

1шт.

10

K304903

CIRCUIT-BREAKER

CIRCUIT BREAKER, 30 ampere

1шт.

11

K304928

HARNESS

sealed beam headlamps, inboard headlamps

1шт.

11

K304927

HARNESS

electrical, inboard headlamps

1шт.

12

1536092C1

FLASHER UNIT

UNIT, FLASHER

1шт.

13

K300781

FLASHER SWITCH

SWITCH direction indicator

1шт.

14

3107556R92

SWITCH ASSY

SWITCH ASSEMBLY ignition, Includes: two keys

1шт.

15

1502378C1

LIGHT SWITCH

SWITCH lighting & horn

1шт.

15a

1502379C1

KNOB

BUTTON push

1шт.

16

K925268

BLADE

ground lead

1шт.

17

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

18

K262714

SWITCH

starter safety

1шт.

19

K947336

CABLE

, Serial Range: starter-ground

1шт.

20

K627781

PLUG

blanking, 7/32 inch diameter

2шт.

21

K304901

TERMINAL CONNECTOR

COVER terminals

1шт.

22

REF

INSTRUCTION

CLUSTER instrument, See Figure 4-060

1шт.

23

K307709

HARNESS

rear lamps

1шт.

24

K908905

CONNECTOR, ELEC

CONNECTOR 3 way

1шт.

25

K86230

CONNECTOR, ELEC

CONNECTOR double

3шт.

26

K67916

ELEC CONNECTOR

CONNECTOR wire

2шт.

27

K300730

HARNESS

front and rear lamps

2шт.

28

K300854

HARNESS

rear lamps

2шт.

29

K627716

GROMMET

special, 13/16 inch, 21 mm

2шт.

30

K627729

GROMMET

harness to fender support, 7/8 inch, 22 mm

2шт.
