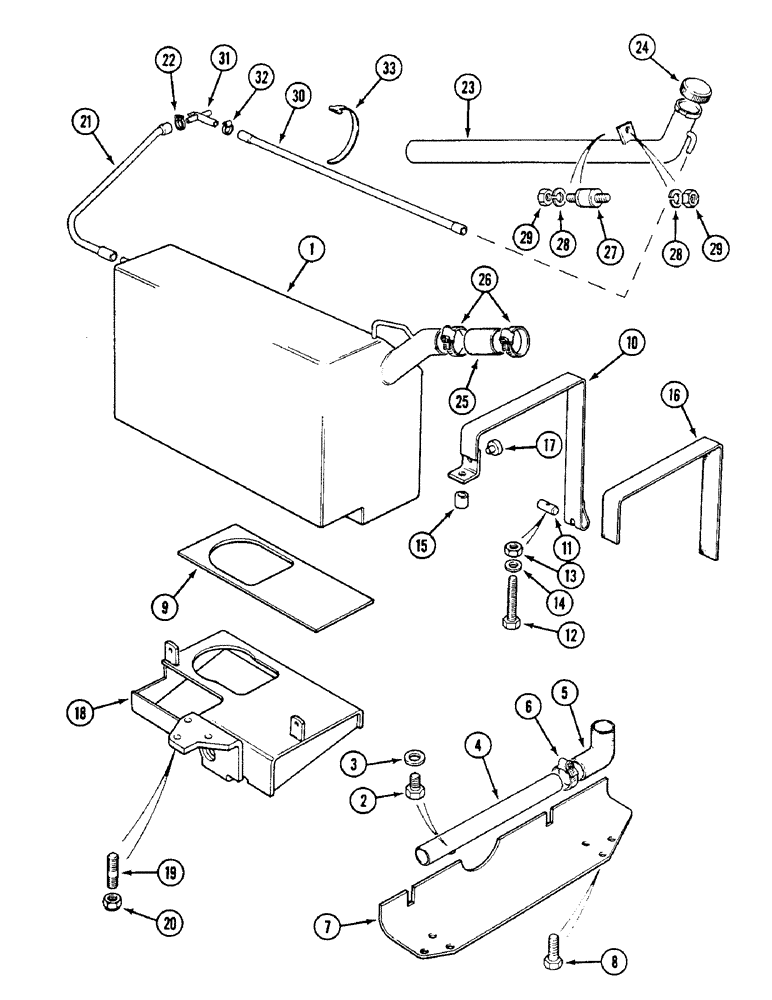

Запчасти Case IH 1494 (3-050) - FUEL TANK - RIGHT HAND, TRACTORS WITH CAB (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
K207879
TANK
fuel, Replaces: K207655
1шт.
2
K19591
PLUG
1/8 BSP
1шт.
3
K626521
SEALING WASHER
WASHER sealing, 3/8 inch, 10 mm
1шт.
4
K207884
PIPE
tank balance, Replaces: K207650
1шт.
5
K201945
HOSE
ELBOW
1шт.
6
K622028
CLAMP
CLIP hose, 1-1/2 inch, 38 mm
2шт.
7
K308507
GUARD
balance pipe, Replaces: K308218
1шт.
8
413-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 5
hex, 5/16 NC x 1/2 inch
2шт.
9
K202094
MAT
seating
1шт.
10
K310338
BRACKET
STRAP tank, Power shift, Replaces: K308488
1шт.
10
K309279
STRAP
front, Power shift, Replaces: K305925
1шт.
10
K304026
STRAP
tank, Synchromesh
2шт.
11
K951539
TRUNNION
PIN tank strap, 1/4 inch UNC
2шт.
12
K602747
SCREW,1/4" - 20 x 3 1/2", Gr S
BOLT, 1/4 UNC x 3-1/2 inch
2шт.
13
86632558
JAM NUT,Jam, 1/2"-13, G5
NUT lock, 1/4 inch UNC
2шт.
14
K626660
WASHER
1/4 inch, 16 mm
2шт.
15
K201919
SPACER
strap
2шт.
15
K202903
BUSHING
SPACER tank strap, Power shift
1шт.
16
K302680
ADHESIVE
STRIP tank strap, 40 x 1.5 mm
1шт.
17
K304542
RUBBER
PAD rubber, tank strap
4шт.
18
K201982
BRACKET
support
1шт.
19
K608610
STUD
5/8 UNC x 2-1/2 inch
3шт.
20
K607306
NUT
self-locking, 5/8 inch UNC
3шт.
21
K311790
FITTING
PIPE breather, Replaces: K308426, P.I.N. 1520308 and after
1шт.
22
K656901
CLIP
CLAMP breather tube
2шт.
23
K203059
TUBE,25.75" L
filler
1шт.
24
K304590
CAP
filler, Replaces: K901983
1шт.
25
K203060
HOSE
2 x 4-3/4 inch, 51 x 121 mm
1шт.
26
K622031
CLAMP
hose, 2-1/4 inch, 57 mm, diameter
2шт.
27
K203412
RUBBER BLOCK
MOUNT rubber
2шт.
28
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
4шт.
29
825-1408
NUT,M8, Cl 8
4шт.
30
K311792
TUBE
filler breather, Replaces: K307947, P.I.N. 1152308 and after
1шт.
31
K311717
FITTING
tee, breather tube, P.I.N. 1152308 and after
1шт.
32
K656905
CLIP
CLAMP breather tube
2шт.
33
K628387
STRAP
TIE, cable to air cleaner
3шт.
Выбрано товаров: 36
