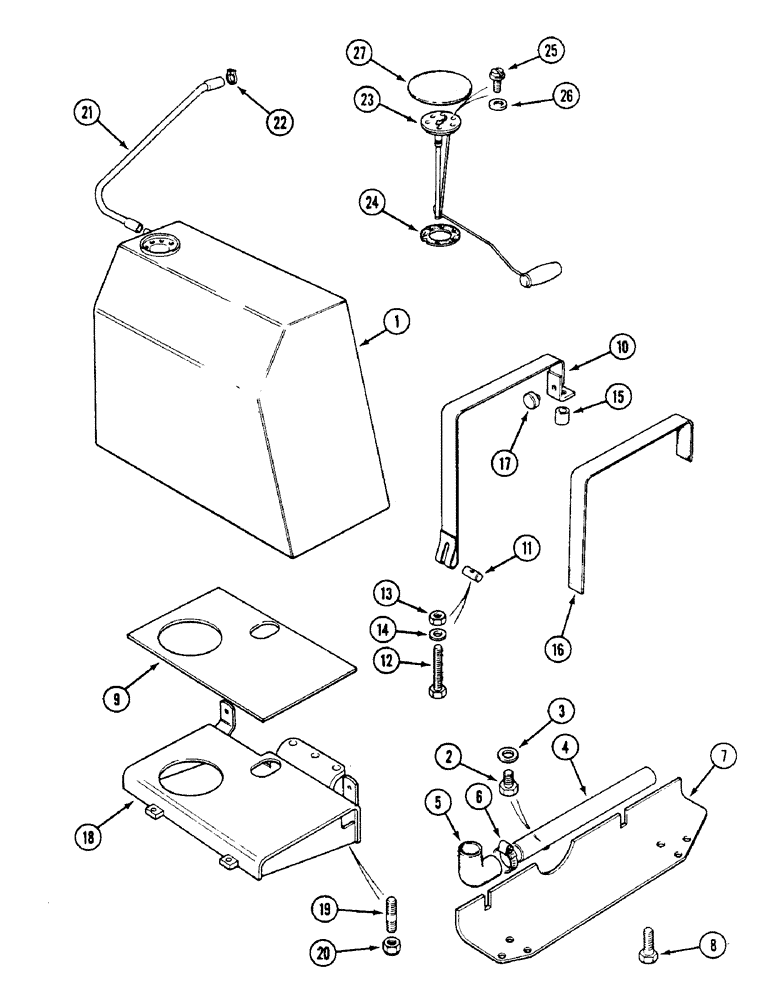

Запчасти Case IH 1494 (3-048) - FUEL TANK - LEFT HAND, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

K207880

TANK

fuel, left hand, Replaces: K207653

1шт.

2

K19581

PLUG

1/4 BSP

1шт.

3

K626765

GASKET

WASHER sealing

1шт.

4

K207884

PIPE

tank balance, Replaces: K207650

1шт.

5

K201945

HOSE

ELBOW

1шт.

6

K622028

CLAMP

CLIP hose, 1-1/2 inch, 38 mm

2шт.

7

K308507

GUARD

balance pipe, Replaces: K308218

1шт.

8

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch

2шт.

9

K202093

MAT

seating, Includes: Ref. 10

1шт.

10

K304026

STRAP

tank, Synchromesh

2шт.

10

K310338

BRACKET

STRAP tank, Power shift, Replaces: K308488

2шт.

11

K951539

TRUNNION

PIN tank strap, 1/4 inch UNC

2шт.

12

K602747

SCREW,1/4" - 20 x 3 1/2", Gr S

BOLT, 1/4 UNC x 3-1/2 inch

2шт.

13

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT lock, 1/4 inch UNC

2шт.

14

K626660

WASHER

1/4 inch, 16 mm

2шт.

15

K201919

SPACER

strap

2шт.

15

K202903

BUSHING

SPACER tank strap

1шт.

16

K302680

ADHESIVE

STRIP tank strap, 40 x 1.5 mm

1шт.

17

K304542

RUBBER

PAD rubber, tank strap

4шт.

18

K201980

BRACKET

support

1шт.

19

K608610

STUD

5/8 UNC x 2-1/2 inch

3шт.

20

K607306

NUT

self locking, 5/8 inch UNC

3шт.

21

K311791

TUBE,5.3 mm ID x 8 mm OD x 830 mm L

PIPE tank breather, Replaces: K308427, P.I.N. 520308 and after

1шт.

22

K656901

CLIP

CLAMP breather tube

2шт.

23

K262723

TRANSMITTER

TANK UNIT fuel gauge, Replaces: K300827

1шт.

24

K946159

GASKET

tank unit

1шт.

25

K614965

SCREW

No. 10 UNF x 5/8 inch

5шт.

26

K627479

WASHER

sealing, 3/16 inch

5шт.

27

K304807

COVER

PLUG tank unit

1шт.
