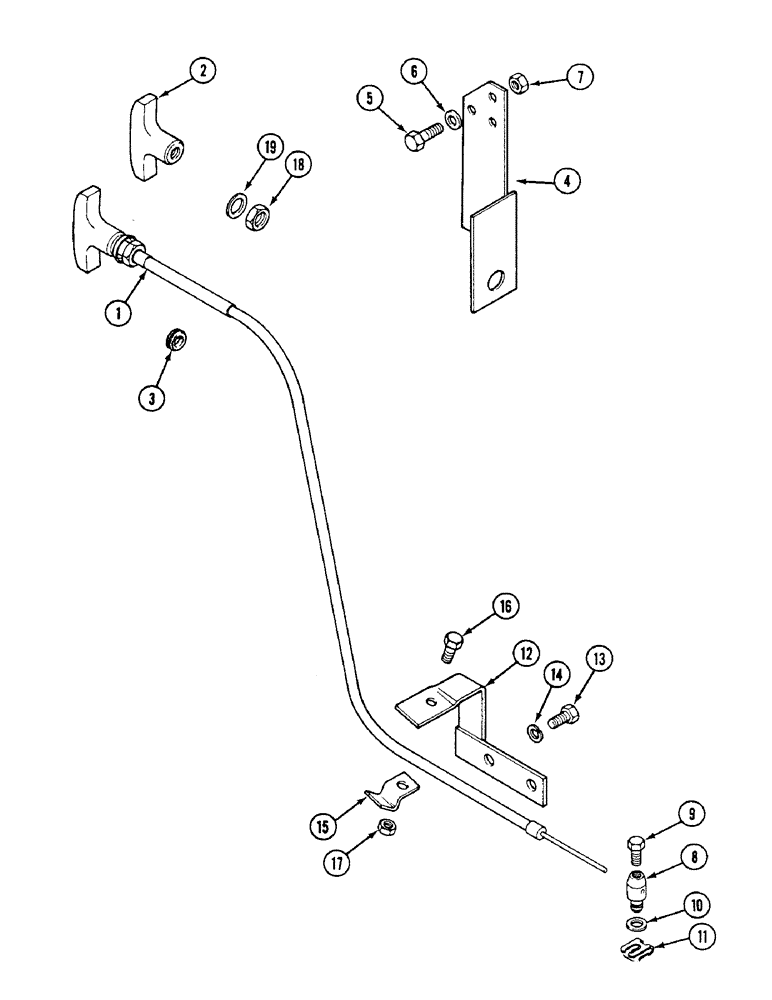

Запчасти Case IH 1494 (3-044) - ENGINE STOP CONTROL (03) - FUEL SYSTEM

1

REF

INSTRUCTION

CABLE, inner and outer, without cab, order K311437 and cut to length, Includes: Ref. 2

1шт.

1

K311437

CABLE

inner and outer, 42 inch, with cab, Includes: Ref. 2

1шт.

2

K262069

HANDLE

stop control cable

1шт.

3

248-1140

GROMMET,3/8" ID x 5/8" Groove Dia

cable to cab

1шт.

4

K304580

BRACKET

mounting, with cab

1шт.

5

K612703

SCREW

BOLT, 1/4 UNF x 3/4 inch

3шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

7

K617000

NUT

1/4 inch UNF

3шт.

8

K205990

TRUNNION

PIN trunnion

1шт.

9

178-15

SET SCREW,Hex Soc, #10-24 x 3/8"

SCREW hex, No., 10 x 3/8 inch

1шт.

10

K626662

WASHER

1/4 inch

1шт.

11

K625039

CLIP

retaining

1шт.

12

K304437

MOUNTING PARTS

BRACKET mounting, cable

1шт.

13

K612701

SCREW

BOLT hex, 1/4 NF x 1/2 inch

1шт.

14

K626341

SPRING WASHER

WASHER lock, 1/4 inch

2шт.

15

K657014

CABLE

CLAMP cable

1шт.

16

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

17

K607325

NUT

hex., self locking, 1/4 inch NC

1шт.

18

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12, used with K311436 and K311437

1шт.

19

K626686

WASHER

flat, 1/2 inch, 13 mm, used with K311436 and K311437

1шт.
