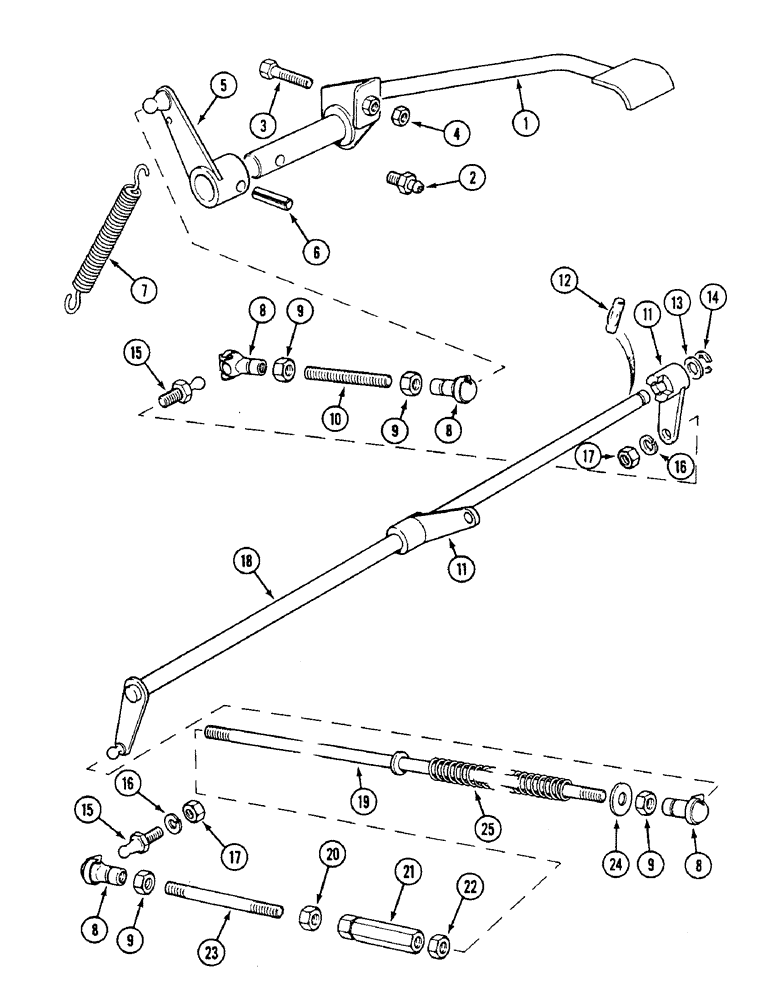

Запчасти Case IH 1494 (3-040) - THROTTLE FOOT CONTROL, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

K307468

PEDAL

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

3

K652480

SCREW

BOLT, special, M6 x 40 mm

1шт.

4

825-13412

NUT,M12 x 1.25, Cl 8

cable, M12

1шт.

5

K307820

LEVER

inner and outer, 2410 mm, with cab

1шт.

6

K14464

PIN

1/4 x 1 inch

1шт.

7

K624914

SPRING

return

1шт.

8

K621903

BALL JOINT

SOCKET END, 1/4 inch UNF

4шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

lock, 1/4 inch UNF

4шт.

10

K202337

ROD

pedal to cross shaft

1шт.

11

K928178

LEVER

cross shaft

2шт.

12

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

1шт.

13

K19472

WASHER

flat, 3/8 inch, 10 mm

1шт.

14

K621587

RING, SNAP

RING retaining, 3/8 inch, 10 mm, external

1шт.

15

K621904

BALL JOINT

PIVOT END ball

2шт.

16

K626341

SPRING WASHER

WASHER lock, 1/4 inch

2шт.

17

K616980

NUT

hex., 1/4 inch UNF

2шт.

18

K207468

SHAFT

cross

1шт.

19

K202475

ROD

cross shaft to adjusting sleeve

1шт.

20

K617593

NUT

1/4 inch UNF

1шт.

21

K949065

SLEEVE

adjusting, 1/4 inch UNF

1шт.

22

K617000

NUT

1/4 inch UNF

1шт.

23

K202474

ROD

adjusting, Serial Range: sleeve-pump

1шт.

24

K25896

WASHER

special, return spring

1шт.

25

K625260

SPRING

return

1шт.
