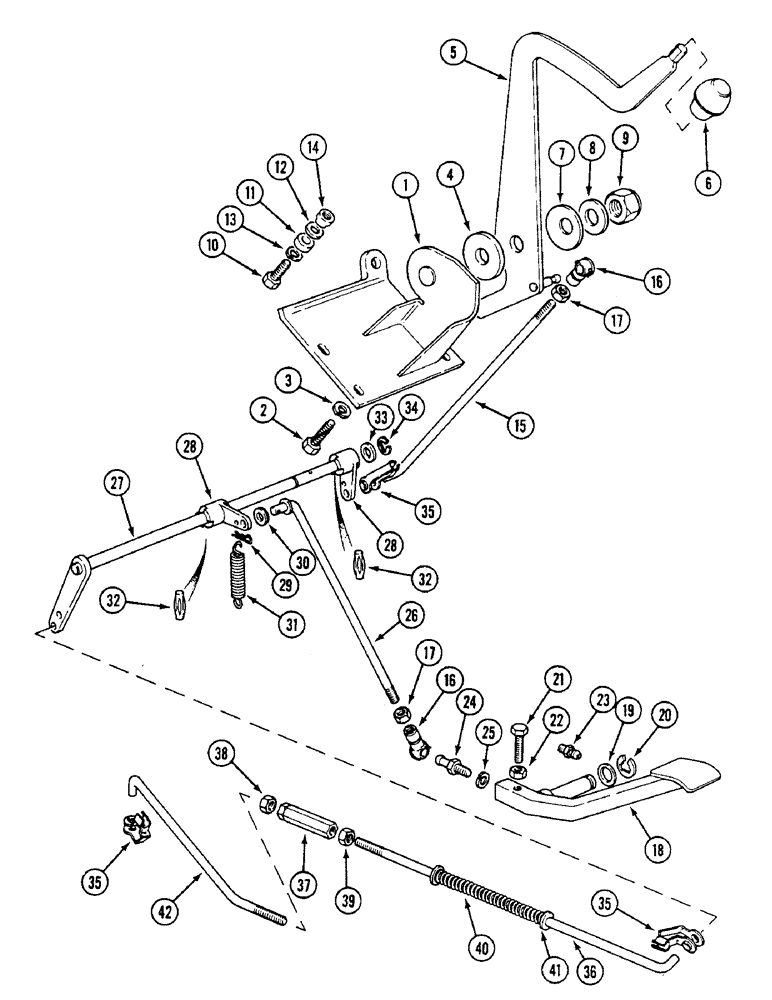

Запчасти Case IH 1494 (3-038) - THROTTLE CONTROLS, TRACTORS WITHOUT CAB (03) - FUEL SYSTEM

1

K302640

BRACKET

SUPPORT hand lever, prior to P.I.N. 11518201

1шт.

1

K304528

SUPPORT

hand lever, P.I.N. 11518201 and after

1шт.

2

K655645

BOLT

SCREW, M8 x 16 mm

3шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

4

K950724

DISC

friction

1шт.

5

K201903

LEVER

hand

1шт.

6

K207512

KNOB

lever

1шт.

7

K626740

WASHER

Belleville, 5/8 inch

1шт.

8

K19475

WASHER

5/8 inch

1шт.

9

131-377

LOCK NUT,5/8"-11, GC

NUT lock, ball joint, 5/8 inch UNC

1шт.

10

K602735

SCREW

1/4 UNC x 3/4 inch

2шт.

11

K627089

BUSHING

SPACER

2шт.

12

K626662

WASHER

1/4 inch

2шт.

13

K626341

SPRING WASHER

WASHER lock, 1/4 inch

2шт.

14

K943634

NUT

1/4 inch UNC

2шт.

15

K204624

ROD

, Serial Range: lever-shaft

1шт.

16

K621903

BALL JOINT

SOCKET END, 1/4 inch UNF

2шт.

17

425-154

JAM NUT,Jam, 1/4"-28, G5

lock, 1/4 inch UNF

2шт.

18

K203164

PEDAL

1шт.

19

K626674

WASHER

special, 1/2 inch, 13 mm

1шт.

20

100-3350

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

21

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

1шт.

22

K617000

NUT

1/4 inch UNF

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

24

K621904

BALL JOINT

PIVOT END ball

1шт.

25

K626341

SPRING WASHER

WASHER lock, 1/4 inch

1шт.

26

K307081

ROD

, Serial Range: pedal-shaft

1шт.

27

K204436

SHAFT

cross

1шт.

28

K928178

LEVER

cross shaft

2шт.

29

K950865

CLIP

retaining

1шт.

30

K626662

WASHER

1/4 inch

1шт.

31

K624938

SPRING

return

1шт.

32

135-735

GROOVED PIN,5/32" x 3/4", Type E

Pin, Grooved, 5/32" x 3/4", Type E

2шт.

33

K19472

WASHER

flat, 3/8 inch, 10 mm

2шт.

34

K621587

RING, SNAP

RING retaining, 3/8 inch, 10 mm, external

2шт.

35

K908778

CLIP

spring

3шт.

36

K204621

ROD

cross shaft to adjusting sleeve

1шт.

37

K949065

SLEEVE

adjusting, 1/4 inch UNF

1шт.

38

K617593

NUT

1/4 inch UNF

1шт.

39

425-154

JAM NUT,Jam, 1/4"-28, G5

lock, 1/4 inch UNF

1шт.

40

K625260

SPRING

return

1шт.

41

K626682

WASHER

lever pin, 5/16 inch, 8 mm

1шт.

42

K204623

ROD

adjusting, Serial Range: sleeve-pump

1шт.
