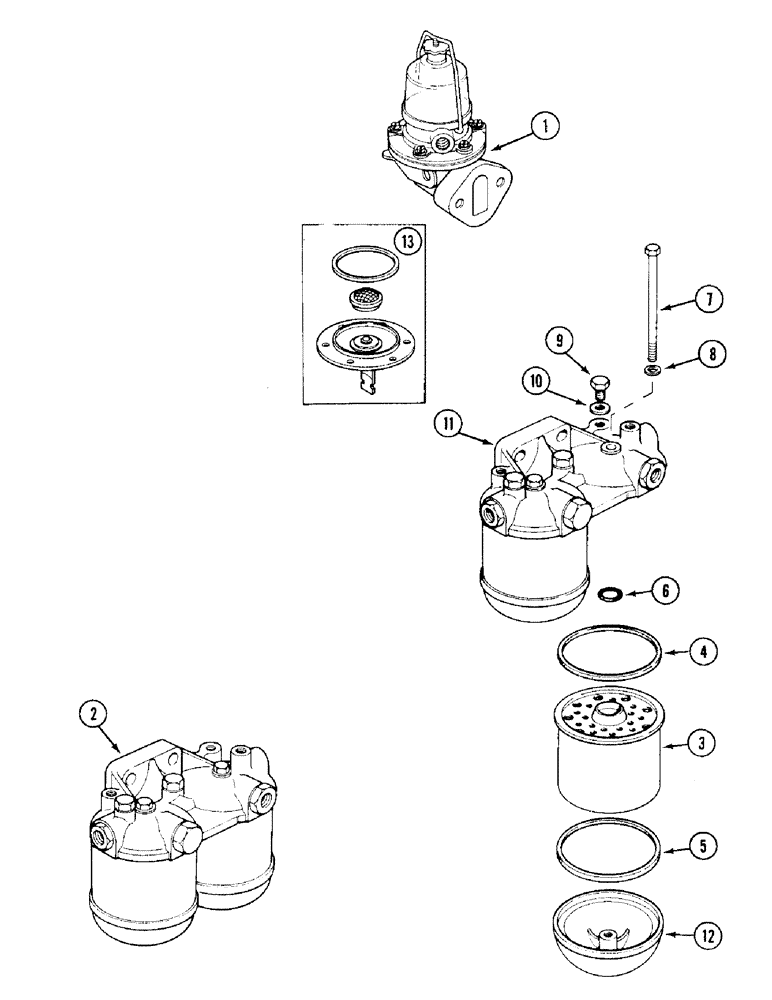

Запчасти Case IH 1494 (3-036) - FUEL FEED PUMP AND FILTER ASSEMBLIES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

PUMP ASSEMBLY fuel, AC-Delco

1шт.

2

K906708

FILTER

ASSEMBLY fuel, APF 62900, Includes: Ref. 3 - 12

1шт.

3

3044506R93

FILTER, FUEL

ELEMENT KIT filter, Includes: Ref. 4 - 7

2шт.

4

3123890R1

SEALING WASHER

RING, upper

1шт.

5

3123889R1

SEALING WASHER

lower

1шт.

6

K960937

O-RING

1/2 inch, 13 mm, ID

1шт.

7

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

hex, 5/16 NC x 4-3/4 inch

2шт.

8

K963409

RING

WASHER sealing, 5/16 inch, 8 mm

2шт.

9

K965010

PLUG

vent, 5/16 inch UNC

1шт.

10

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

sealing, 5/16 inch, 8 mm

1шт.

11

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

12

K962264

COVER

BASE filter

2шт.

K262265

KIT

repair, fuel lift pump, Ac. No. 93151242

1шт.
