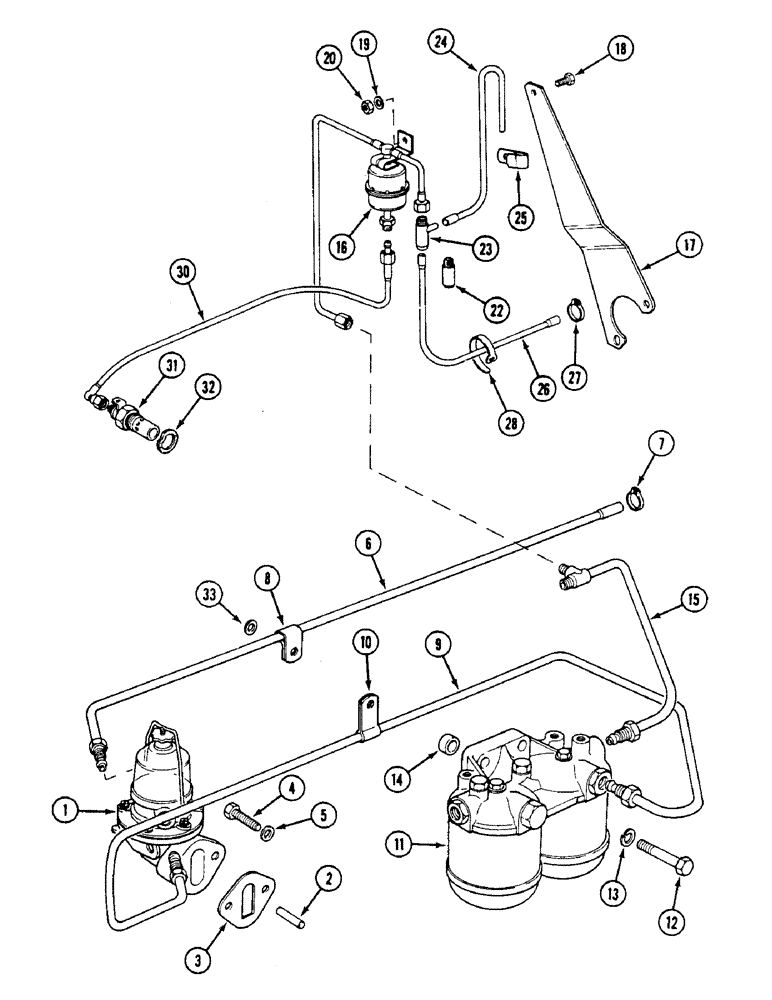

Запчасти Case IH 1494 (3-034) - FUEL FEED PUMP, FILTERS AND TUBES (03) - FUEL SYSTEM

1

K311939

FEED PUMP

PUMP ASSEMBLY fuel, See Figure 3-036

1шт.

2

K911928

PUSH ROD,9.51mm OD x 35.99mm L

push, fuel pump

1шт.

3

K902136

GASKET

pump mounting

1шт.

4

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

2шт.

5

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

sealing, 5/16 inch, 8 mm

2шт.

6

K202864

PIPE,0.312" OD x 43, 2" L

TUBE fuel, tank to fuel pump, without cab

1шт.

6

K951956

PIPE

TUBE, tank to fuel pump, with cab

1шт.

7

K656901

CLIP

CLAMP breather tube

1шт.

8

K628362

CLIP

clutch housing bolt

1шт.

9

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

TUBE fuel, pump to filter

1шт.

10

K621603

CLIP

tube to manifold stud

1шт.

11

K906708

FILTER

ASSEMBLY fuel, APF 62900, See Figure 3-036

1шт.

12

K600406

BOLT

special, 3/8 UNC x 1-3/4 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

A76093

BUSHING

SPACER filter

2шт.

15

K204246

FUEL TUBE,0.25" OD

TUBE fuel, filter to leak-off

1шт.

16

K205395

TANK

RESERVOIR ASSEMBLY fuel, with tube, with cab

1шт.

16

K205391

RESERVOIR

ASSEMBLY fuel, with tube, without cab

1шт.

17

K307876

BRACKET

reservoir support

1шт.

18

K612802

SCREW

BOLT, 5/16 UNF x 5/8 inch

1шт.

19

K19481

SPRING WASHER

WASHER lock, 5/16 inch

1шт.

20

K617001

NUT

5/16 inch UNF

1шт.

22

K306934

FITTING

RESTRICTOR fuel return, without cab

1шт.

23

K305825

FITTING

RESTRICTOR fuel return, with cab

1шт.

24

K205702

HOSE,0.18" ID x 0.187" OD x 47, 18" L

TUBE venting, with cab

1шт.

25

K628378

CLIP

spring, vent tube, with cab

2шт.

26

K207568

PIPE,0.395" OD x 44" L

TUBE fuel return, without cab

1шт.

26

K207548

PIPE

TUBE fuel return, with cab

1шт.

27

L100659

CLIP

self adhesive

1шт.

28

702093C1

CABLE TIE

STRAP tie

2шт.

30

K207569

LINE,0.187" OD x 16" L

TUBE fuel, reservoir to thermostat, with cab

1шт.

30

K205367

HOSE,0.187" OD x 33.5" L

TUBE fuel, reservoir to thermostat, without cab

1шт.

31

K928523

GLOW PLUG

THERMOSTART fuel, CAV 1854102

1шт.

31a

K262495

THERMOSTAT

THERMOSTART fuel, for hard starting tractors

1шт.

32

K626957

WASHER

sealing, 7/8 inch, 22 mm

1шт.

33

K19472

WASHER

flat, 3/8 inch, 10 mm

1шт.
