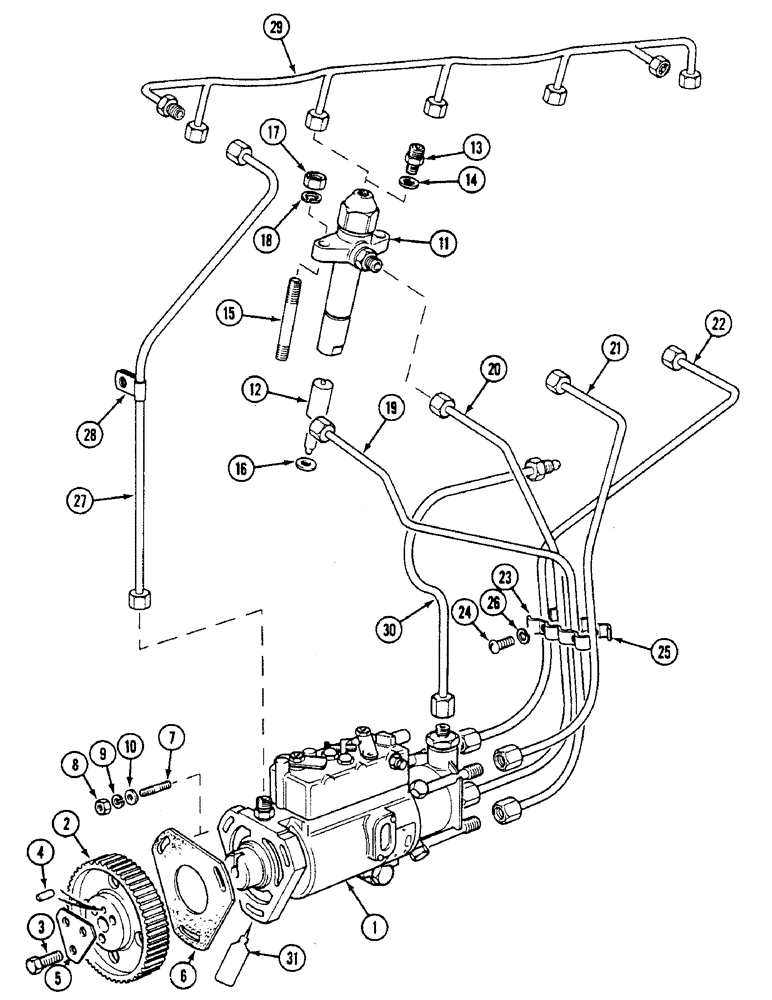

Запчасти Case IH 1494 (3-030) - INJECTION PUMP, INJECTORS AND TUBES (03) - FUEL SYSTEM

1

K957354

PUMP

INJECTION PUMP - CAV

1шт.

2

K949822

GEAR

pump drive, 68 teeth

1шт.

3

114-101

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

3шт.

4

K25360

PIN

1шт.

5

K914503

LARGE PLATE

WASHER tab, gear

1шт.

6

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515, 50 ml tube

1шт.

6

K311313

GASKET

pump to carrier plate, alternative, 0.080 inch thick

1шт.

7

K608163

STUD

5/16 UNC x 1-1/4 inch

3шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

10

K626682

WASHER

lever pin, 5/16 inch, 8 mm

3шт.

11

K942175

NOZZLE CAP

INJECTOR cap and holder, Replaces: K955242, See Figure 3-032, Includes: Ref. 12

4шт.

12

K942176

NOZZLE CAP

NOZZLE injector

1шт.

13

K620460

ADAPTER

M8, 1/8 inch BSP, injector leak-off

4шт.

14

K36374

WASHER

copper, 8 mm

4шт.

15

K608107

STUD

injectors, 5/16 UNC x 2-11/16 inch

8шт.

16

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

4шт.

17

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

19

K918915

PIPE

TUBE fuel, injection, Serial Range: pump-no.

1шт.

20

K207322

PIPE

TUBE fuel, injection, Serial Range: pump-no.

1шт.

21

K954828

PIPE,18.281" L

TUBE fuel, injection pump to no.

1шт.

22

K954829

PIPE,20.75" L

TUBE fuel, injection pump to no.

1шт.

23

K900844

CLAMP

CLIP injector tubes

2шт.

24

K652474

BOLT

M6 x 12 mm

2шт.

25

K207929

CLIP

injector tubes

1шт.

26

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

27

K203135

PIPE,0.187" OD

TUBE leak-off, injector pump

1шт.

28

K621610

CLIP

manifold

1шт.

29

K204248

PIPE,0.187" OD

TUBE leak-off, injectors

1шт.

30

K918923

PIPE

TUBE fuel, filter to injection pump

1шт.

31

B17555

LOCTITE

SEALANT, Gasket Eliminator No. 515. 50 ml tube

1шт.
