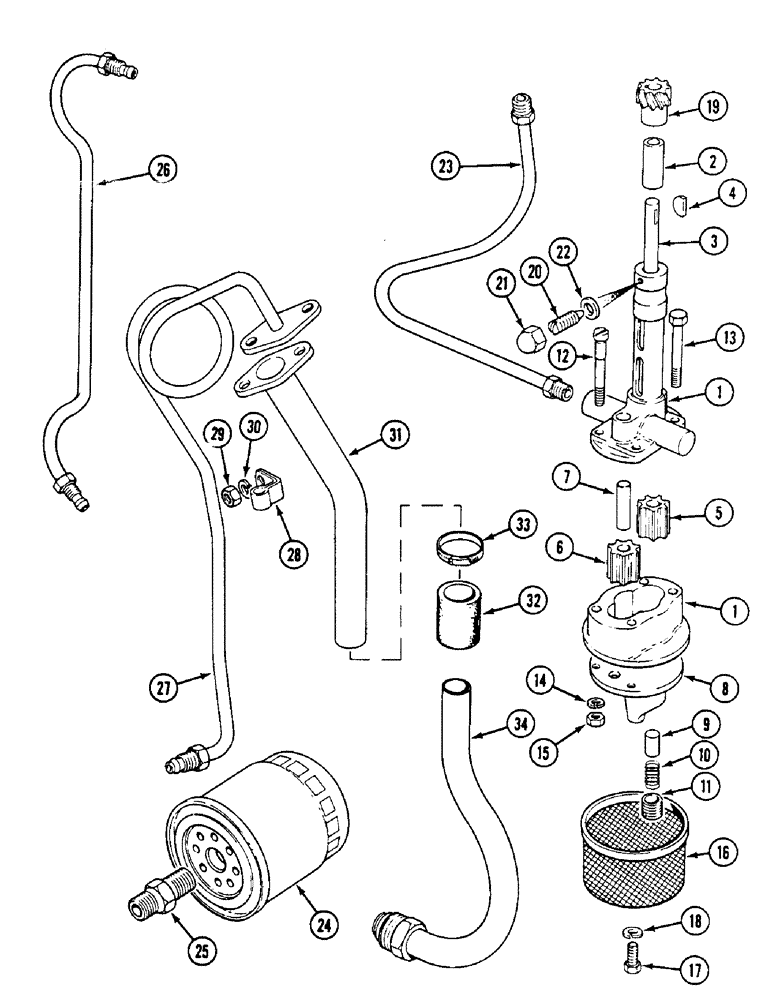

Запчасти Case IH 1494 (2-028) - OIL PUMP, FILTER AND TUBES (02) - ENGINE

K953894

PUMP, ENGINE OIL

OIL PUMP ASSEMBLY, Includes: Ref. 1 - 19

1шт.

1

K963414

SUPPORT

BRACKET AND GEAR HOUSING, Includes: Ref. 2 & 3

1шт.

2

K30016

BUSHING

1шт.

3

K928678

SPINDLE

driving, 15-3/8 inch, 391 mm

1шт.

4

K19604

KEY

Woodruff No. 405

1шт.

5

K928681

ROTOR

driving

1шт.

6

K928680

ROTOR

driven

1шт.

7

A75102

PIN,12.45mm OD x 50.8mm L

clutch reaction plate, 2 inch

1шт.

K953815

VALVE

ASSEMBLY relief, Includes: Ref. 8 - 11

1шт.

8

K953009

COVER

flat plunger seat

1шт.

9

K953008

PLUNGER

flat seat

1шт.

10

K12961

SPRING

relief valve

1шт.

11

K953010

SCREW,3/8" x 9/16"

adjusting

1шт.

12

K928682

BOLT

1/4 UNC x 2-5/16 inch

2шт.

13

K600013

BOLT

1/4 UNC x 2-3/8 inch

2шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

K607000

NUT

1/4 inch UNC

4шт.

16

K12013

FILTER

SCREEN silter

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

K902051

GEAR

PINION spirol

1шт.

20

K928254

SCREW,7/16" - 14 x 1 5/16"

locating, 7/16 inch UNC

1шт.

21

K607516

NUT

capped, 7/16 inch UNC

1шт.

22

K14674

WASHER

copper, 7/16 inch, 11 mm

1шт.

23

K915750

PIPE

TUBE, pump to cylinder block

1шт.

24

K200037

FILTER

oil

1шт.

25

K200007

FITTING

CONNECTOR oil filter

1шт.

26

K902765

PIPE

TUBE oil, block to cylinder head

1шт.

27

K207508

HYD TUBE

TUBE oil, Serial Range: block-turbocharger

1шт.

28

K628386

CLIP

turbocharger tube

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

492-11038

LOCK WASHER,3/8"

1шт.

31

K207663

PIPE

TUBE oil return, upper

1шт.

32

K626816

HOSE

3/4 x 2 inch, 19 x 51 mm

1шт.

33

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

34

K202554

PIPE,0.75" OD x 10.875, 4.25" L

TUBE oil return, lower

1шт.
