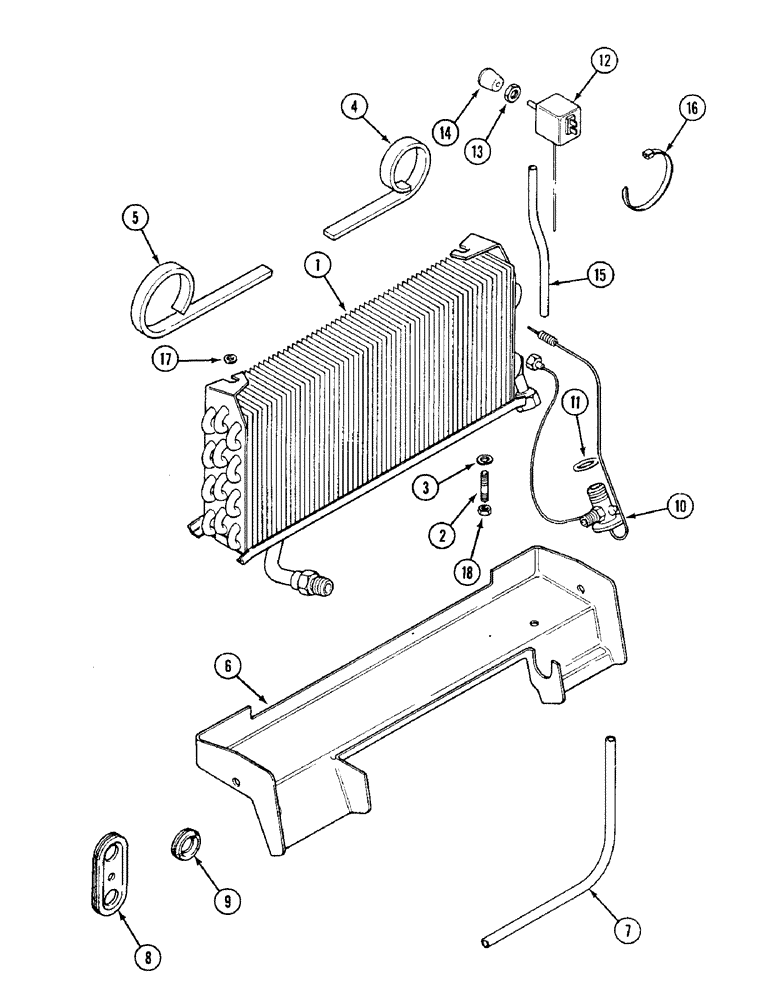

Запчасти Case IH 1494 (9-474) - AIR CONDITIONER EVAPORATOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K308478

RADIATOR

EVAPORATOR air conditioning

1шт.

2

K655093

STUD

M8 x 32 mm

1шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

4

K777030

FOAM

STRIP sealing, 8 x 15 mm

1шт.

5

A42902X

SEALING STRIP

TAPE cork, bulk, 2-1/2 (64) x 1/8 (3) x 360 inch, (9144 mm), long

1шт.

6

K307261

TRAY

drip

1шт.

7

K304338

HOSE

TUBE drain, 8 x 600 mm

2шт.

8

K308480

GROMMET

bulkhead

1шт.

9

K627776

RUBBER

GROMMET bulkhead, 1-1/4 x 5/8 inch

1шт.

10

66398C1

VALVE

expansion

1шт.

11

222-994

GASKET,1/2 Tube, Fl, Copper

WASHER copper, hose to compressor

1шт.

12

A176304

SWITCH

temperature control

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

switch

1шт.

14

A42578

KNOB

switch

1шт.

15

K207913

TUBE

insulating, switch capillary tube

1шт.

16

K621734

CABLE

CLIP cable

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

flat, 9 x 17 x 1.6 mm

4шт.

18

825-1408

NUT,M8, Cl 8

4шт.
