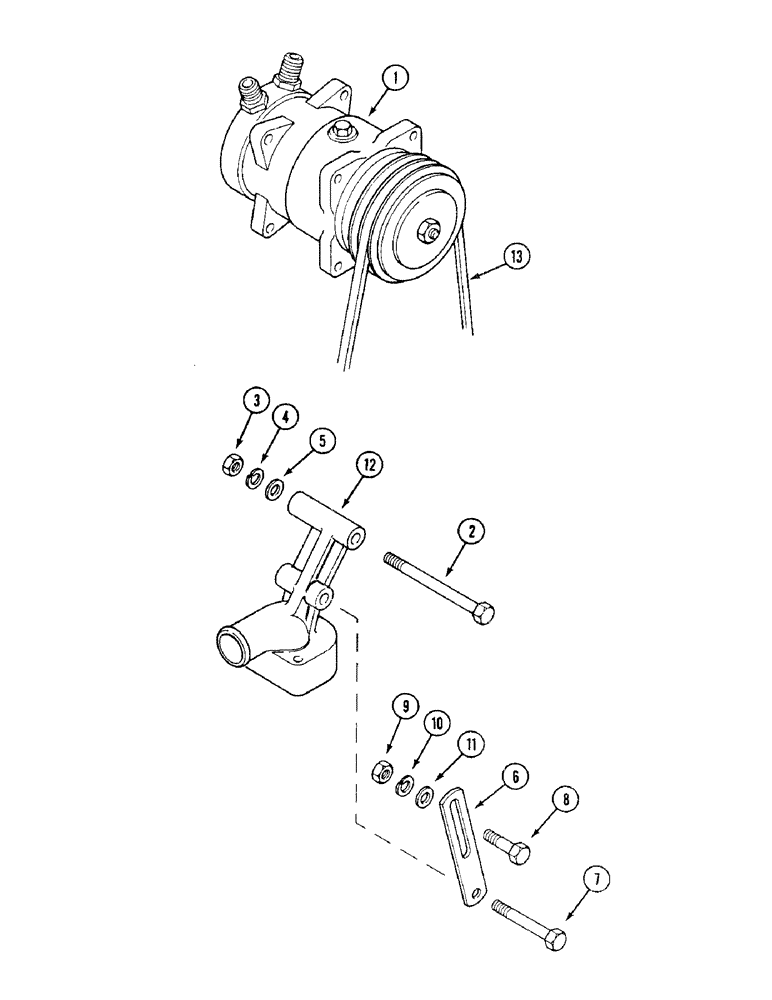

Запчасти Case IH 1494 (9-472) - AIR CONDITIONER COMPRESSOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307237

COMPRESSOR

ASSEMBLY, Sanden SD-510-4D

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

1494 CASE DIESEL TRACTOR (1/83-12/87), Reman for New P/N K307237

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

K600424

SCREW

BOLT, 3/8 UNC x 5 inch, with cab, order 413-680

1шт.

3

425-106

NUT,3/8"-16, Cl 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

K19472

WASHER

flat, 3/8 inch, 10 mm

2шт.

6

K207316

STRAP

adjuster

1шт.

7

K600416

BOLT

3/8 UNC x 3 inch, order 413-648

1шт.

8

K600404

BOLT

3/8 UNC x 1-1/2 inch, order 413-624

1шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

K19472

WASHER

flat, 3/8 inch, 10 mm

2шт.

12

K207315

PIPE

TUBE water outlet

1шт.

13

K307429

V-BELT,13.00 mm W x 1000.00 mm L

V-BELT , Compressor drive 13.00 mm W x 1000.00 mm L

1шт.
